1.3 Inch 128x64 OLED Display Screen Module with SPI Interface - V2

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Low Stock, 1 left

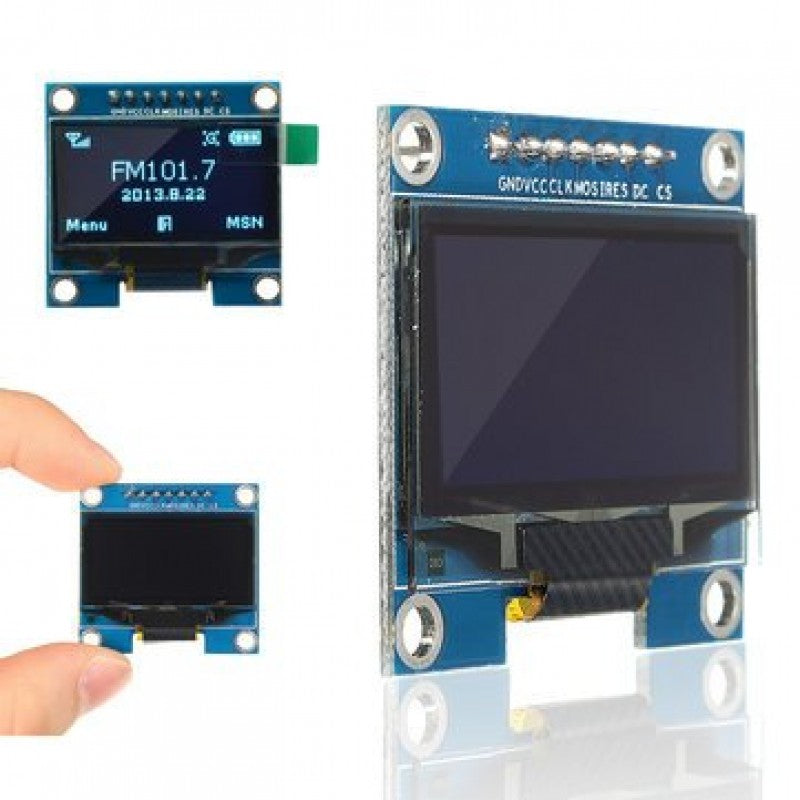

1.3 Inch 128x64 Blue OLED Display Module with SPI Interface
  • 1.3 Inch 128x64 Blue OLED Display Module with SPI Interface

Product Description

A 1.3-inch SPI OLED module designed to display blue monochrome text, icons and graphics at a resolution of 128 × 64 pixels. The self-emissive panel is well suited to low-power embedded interfaces, portable instruments and sensor monitors.

This V2 model uses an SSD1306 controller and a seven-pin SPI interface, with a listed 3.3–5 V DC operating supply. The existing specifications also list a greater than 160° viewing angle and approximately 0.08 W consumption at full-screen illumination. Verify the host’s SPI wiring and display-library settings before use.

Applications

Remote Monitoring & Control Industrial Automation

Product Specifications

General
SKU2EMK2150
Product Category1.3-inch OLED SPI Display Module – V2
Display & Optical
Display typeOLED, self-emissive
Display size1.3 inch
Pixel resolution128 × 64
Driver ICSSD1306
Character colorBlue
Background colorBlack
Viewing angleGreater than 160°
Interface & Pinout
Communication interfaceSPI serial
PinoutGND, VDD, MOSI, SCK, D/C, RST, CS
Electrical
Operating voltage3.3–5 V DC
Approximate power consumption0.08 W at full-screen illumination
Environment
Operating temperature-30 to 60 °C
Additional Specifications
Reference SKU33365
Country of originChina
Technical referenceReference product page

Product Features

  • Self-emissive OLED panel produces text and graphics without a separate backlight.
  • Blue-on-black monochrome output is suited to compact menus, indicators and dashboards.
  • Seven-pin SPI connection: GND, VDD, MOSI, SCK, D/C, RST and CS.
  • SSD1306 controller supports compatible Arduino and embedded display drivers.
  • Wide viewing angle and low listed power consumption make the panel useful in embedded installations.
  • Confirm pin mapping, supply voltage and SPI driver support for your host platform.

Package Includes

  • 1 × 1.3 Inch 128 × 64 OLED Display Screen Module with SPI Serial Interface - V2

Frequently Asked Questions

What is the 1.3 Inch 128x64 OLED Display Screen Module with SPI Interface - V2 used for?
This compact 1.3-inch OLED display module delivers a crisp 128 × 64-pixel blue image on a black background for embedded systems, prototypes and IoT interfaces. Its self-emissive OLED panel requires no backlight, providing high contrast, a wide viewing angle and low power consumption.
What are its main features?
1.3-inch blue OLED display; 128 × 64-pixel resolution; SSD1306 display controller; SPI serial interface.
What are the power or battery requirements?
Operating voltage: 3.3–5 V DC. Match the supply or charger to these specifications before connecting the product.
Which interfaces or communication protocols does it use?
Communication interface: SPI serial. Check that your host, gateway or controller supports the listed interface and required configuration.
What is included in the package?
1 × 1.3 Inch 128 × 64 OLED Display Screen Module with SPI Serial Interface - V2.

Other Information

Applications & Use Cases
  • Arduino and microcontroller graphics
  • Portable instrumentation and IoT displays
  • User interfaces for sensor networks
Installation & Compatibility Notes
  • Use the listed SPI pinout; this variant should not be wired as a four-pin I2C OLED.
  • Review the operating-voltage and software-driver compatibility of the host before powering the module.
Package Contents

Refer to the separate Package Includes section for confirmed contents. Host controllers, supply accessories, mounting hardware or external cabling are not included unless specifically listed.

Warranty

Product warranty: 15 days, subject to the applicable TwoElectrons warranty terms.

Shipping & Returns

Delivery, returns and replacements follow the TwoElectrons policies published on the website.

Country of Origin: China

Warranty Information

15 Days Seller Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:
  • In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
  • In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
  • If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
  • Return window: 7 days from receipt unless stated otherwise.
  • No refunds or replacements after the return window.
  • Returns are accepted only for non-working or damaged products.
  • Initiate return requests from here: Return Request or contact us at 09831070550.
  • Refunds are processed within 3-4 working days after inspection and approval.
1.3 Inch 128x64 OLED Display Screen Module with SPI Interface - V2

Main Features

  • 1.3-inch blue OLED with 128 × 64 resolution
  • SSD1306 controller and seven-pin SPI interface
  • 3.3–5 V DC operating supply
  • Self-emissive high-contrast display
  • Viewing angle greater than 160° (listed)
  • Approximately 0.08 W at full illumination (listed)
SKU: 2EMK2150
