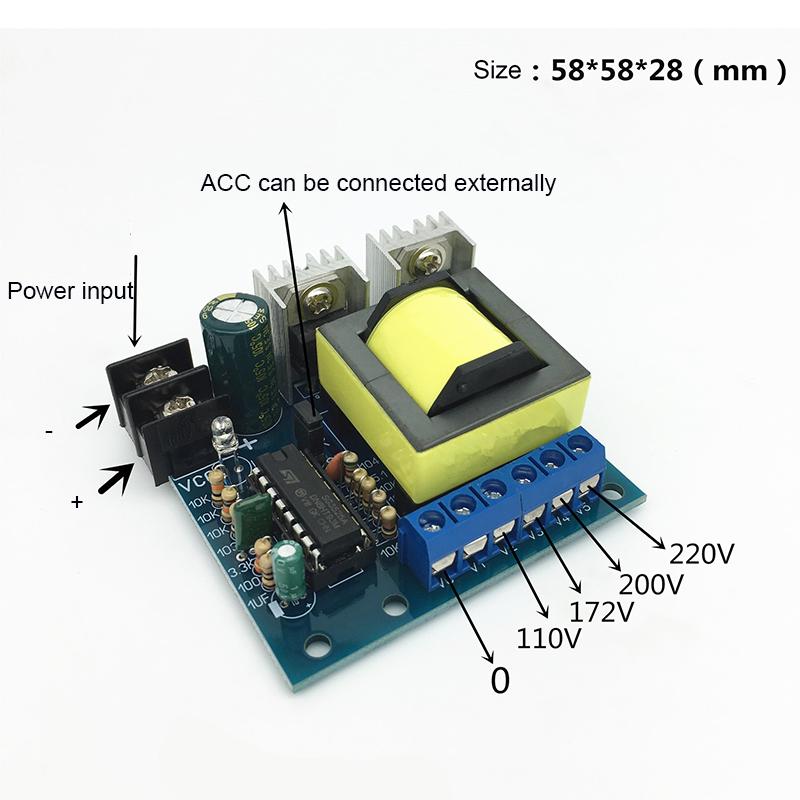

12V to 220V AC 150W Inverter Module
12V to 220V AC 150W Inverter Module
Low Stock, 1 left
Product Description
150W DC-to-AC inverter board intended for electronics DIY and high-frequency inverter-stage projects. It accepts 12VDC input and provides multiple high-frequency square-wave AC output taps up to approximately 220V. This is an open-board high-voltage module and is not a general-purpose mains inverter.
Applications
Product Specifications
| Input | 12VDC |
|---|---|
| Power Rating | 150W |
| Quiescent Current | Approx. 0.05A |
| Output Waveform | High-frequency square wave |
| Output Frequency | Approx. 20kHz |
| Reference Output Taps | Approx. 110V / 172V / 200V / 220V depending connection |
| Protection | No built-in protection stated |
Product Features
- 12V DC Input
Designed for operation from a suitable high-current 12V DC source. - High-Frequency Output
Generates a square-wave AC output around 20kHz for compatible electronic loads and inverter-stage experimentation. - Multiple Output Taps
The source documents several output tap combinations up to approximately 220V. - 150W Class
Supports loads within the module rating when properly cooled and wired.
Package Includes
1 × 12V to 220V AC 150W Inverter ModuleOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 12VDC input
- Up to 150W power rating
- High-frequency square-wave AC output
- Approx. 20kHz output frequency
- Multiple transformer/output taps including 110V, 172V, 200V and 220V reference connections
- Low quiescent current around 0.05A
- DIY inverter-stage module
SKU: 2EMK2053
₹ 746.00
Bulk orders or B2B inquiries? communication@twoelectrons.com
Lead time
| Quantity | Dispatch |
|---|---|
| 1-10 units |
1 to 3 days (metro cities) 3 to 7 days (others location) |
| >10 units | To be negotiated |
