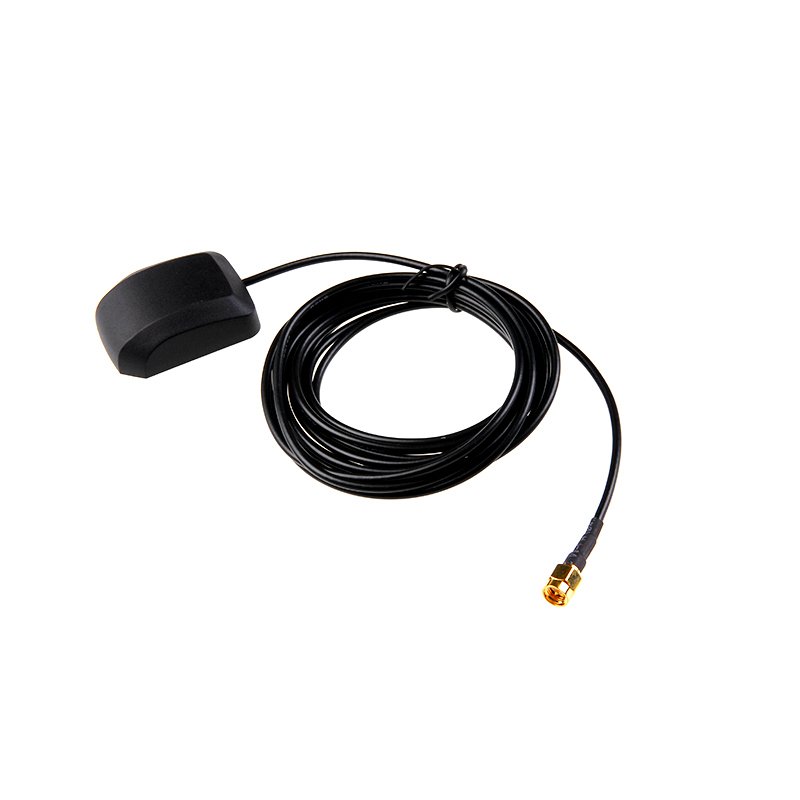

1575 MHz GPS Antenna with U.FL Connector
Low Stock, 1 left
Product Description
A compact active GPS antenna intended for embedded positioning, navigation and tracking electronics that use a U.FL antenna connection. Its specified 1575 ± 5 MHz centre-frequency coverage is appropriate for compatible GPS L1 receiver designs.
An integrated low-noise amplifier with greater than 28 dB listed gain supports reception of weak satellite signals when properly biased by the host module. The antenna is specified at 50 Ω impedance and VSWR below 1.5. Check U.FL connector compatibility and the receiver's active-antenna supply before installation.
Applications
Product Specifications
| General | |
|---|---|
| SKU | 2EEN20023 |
| Product Category | 1575 MHz Active GPS Antenna with U.FL |
| Antenna Type | Active GPS antenna |
| RF Performance | |
| Center Frequency | 1575 ± 5 MHz |
| LNA Gain | > 28 dB |
| Impedance | 50 Ω |
| VSWR | < 1.5 |
| Connector & Cable | |
| Connector | U.FL Female |
Product Features
- Active antenna designed for compatible GPS receiver front ends.
- Frequency specification centres on the 1575 MHz GPS L1 region.
- Integrated low-noise amplifier provides listed gain above 28 dB.
- U.FL female connection fits compatible miniature RF ports and cables.
- 50 Ω impedance and VSWR below 1.5 support appropriate RF system matching.
- Confirm antenna bias voltage and connector mating before applying power.
Package Includes
- 1 × 1575 MHz GPS Antenna with U.FL Connector
Frequently Asked Questions
What is the 1575 MHz GPS Antenna with U.FL Connector used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Active GPS antenna with U.FL connector
- Centre frequency: 1575 ± 5 MHz
- Integrated LNA gain greater than 28 dB
- 50 Ω nominal impedance
- VSWR lower than 1.5
- Compact antenna for compatible GPS modules
