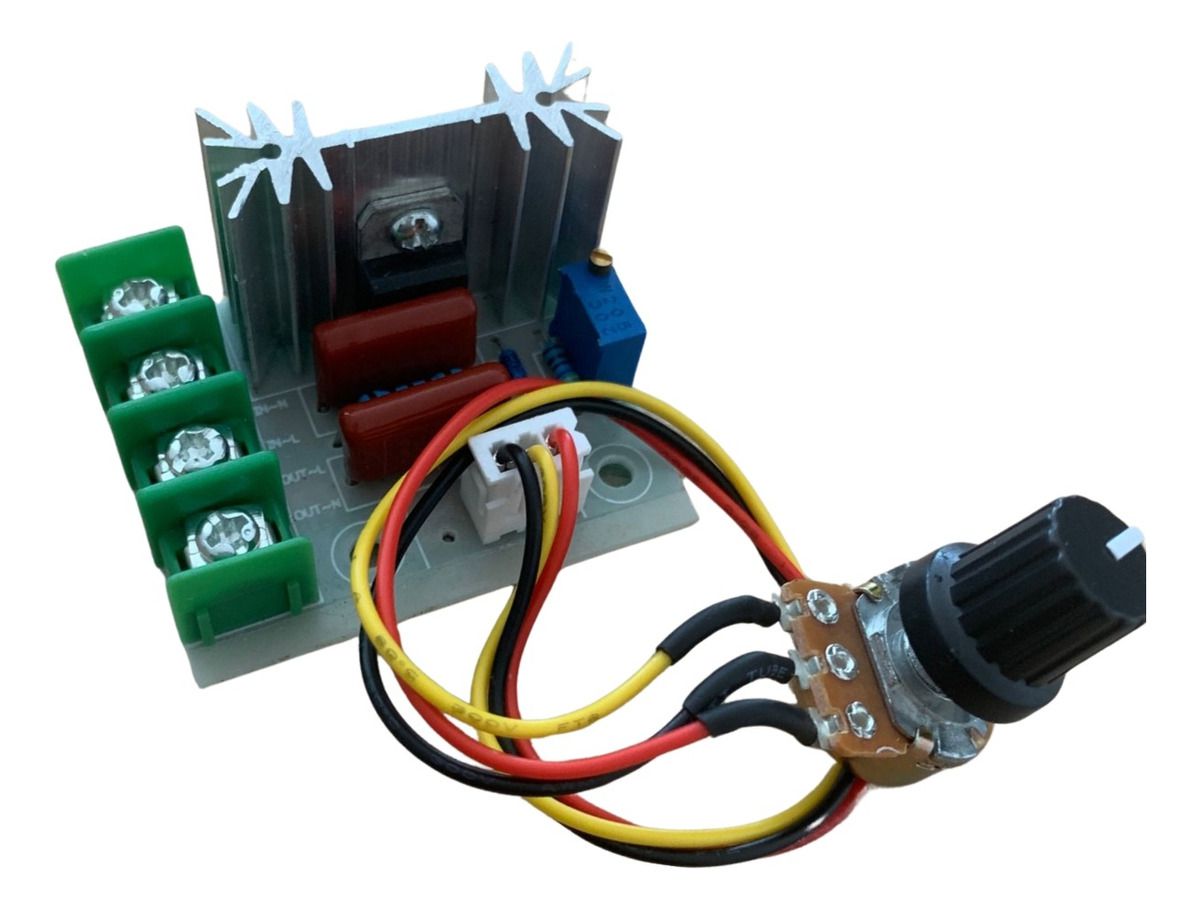

2000W AC Thyristor High-Power Electronic Voltage Regulator

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time
2000W AC Thyristor High-Power Electronic Voltage Regulator
  • 2000W AC Thyristor High-Power Electronic Voltage Regulator

Product Description

2000W AC Thyristor High-Power Electronic Voltage Regulator is designed for the power-conversion or regulation task specified below. It suits a build where the available source and the equipment’s required supply need to be matched. It accepts 220VAC at the specified input. The Maximum Stated Power specification is 2000W. The AC Frequency specification is 50/60Hz. When choosing this power supply module, start with the documented configuration. Assess input, output and load requirements together. An adjustable supply needs its setting checked against the connected circuit, while any stated cooling or wiring conditions remain part of the installation. The approx. dimensions figure is 85 × 55 × 38mm. The Output Adjustment specification is Approx. 0–220VAC power/phase control. The Control Device specification is Bidirectional thyristor / SCR.

Product Specifications

Input Voltage220VAC
Output AdjustmentApprox. 0–220VAC power/phase control
Maximum Stated Power2000W
AC Frequency50/60Hz
Control DeviceBidirectional thyristor / SCR
Approx. Dimensions85 × 55 × 38mm

Product Features

  1. AC Power Adjustment
    Controls delivered AC power using a high-power bidirectional thyristor.
  2. Simple Rotary Control
    Provided by An onboard potentiometer: direct adjustment without additional control electronics.
  3. Heating & Lighting Control
    Useful for supported lamps, heaters, soldering/heating elements and similar loads.
  4. Compact Module
    Board and heatsink assembly is intended for integration into an appropriately insulated enclosure.

Package Includes

1 × 2000W AC Thyristor High-Power Electronic Voltage Regulator

Frequently Asked Questions

What is the 2000W AC Thyristor High-Power Electronic Voltage Regulator used for?
Compact 220VAC SCR/thyristor power regulator for controlling compatible resistive and suitably derated AC loads. The onboard rotary control adjusts delivered power for applications such as light dimming, heater temperature control and compatible small-motor speed adjustment.
What are its main features?
220VAC input; Adjustable AC output from approximately 0–220V; Maximum stated power up to 2000W; 50/60Hz operation.
What are the power or battery requirements?
Input Voltage: 220VAC. Match the supply or charger to these specifications before connecting the product.
What operating or installation limits should I consider?
Approx. Dimensions: 85 × 55 × 38mm. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × 2000W AC Thyristor High-Power Electronic Voltage Regulator

Other Information

Suggested Uses
  • Incandescent lamp dimming
  • Resistive heater and electric-iron temperature control
  • Compatible small AC motor speed adjustment
Safety & Load Note

This exposed module operates straight from hazardous 220VAC. Operation is based on a suitable insulated enclosure, fuse and qualified installation. The source advises derating for inductive or capacitive loads; the 2000W figure should not be treated as a universal load rating.
