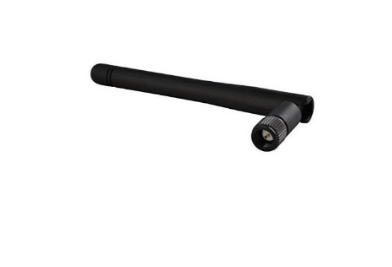

2400 – 2483 MHz 3dBi Gain Rubber Duck Antenna

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Low Stock, 1 left
2400–2483 MHz 3dBi rubber duck antenna with right-angle SMA plug
  • 2400–2483 MHz 3dBi rubber duck antenna with right-angle SMA plug

Product Description

The 2400 – 2483 MHz 3dBi Gain Rubber Duck Antenna is an RF antenna for wireless equipment operating within the stated frequency band.

Key characteristics include Operating Frequency (MHz): 2400 to 2483; Gain: 3 dBi; Connector Type: SMA Plug; Power Handling (W): 5. Verify the actual connector, impedance, gain, mounting format and supported frequency band before ordering.

Applications

IoT Gateway Connectivity Wireless Sensor Networking

Product Specifications

General
Item TypeRubber Duck Antenna
Wireless & RF
Operating Frequency (MHz)2400 to 2483
Gain3 dBi
VSWR<2.0
PolarizationVertical
HPBWH: 360°; V: 40°
Connector TypeSMA Plug
Impedance (Ω)50
Power & Electrical
Power Handling (W)5
Physical & Environmental
Housing MaterialABS / Black
Operating Humidity5–75%
Operating Temperature (°C)-30 to 60°C
Weight (g)<12 g
Dimensions110 × 10 mm
Packaging & Shipping
Shipping Weight0.001 kg
Shipping Dimensions1 × 1 × 1 cm
Other Specifications
Model No. / NameLWC-2400-RD-RA-SMA-PLUG-03
ApplicationsWi-Fi, Bluetooth, Zigbee, 2.4 GHz ISM

Product Features

  1. Plug-and-play installation
  2. Durable, hard body
  3. Operating Frequency (MHz): 2400 to 2483.
  4. Gain: 3 dBi.
  5. Model No. / Name: LWC-2400-RD-RA-SMA-PLUG-03.
  6. Power Handling (W): 5.
  7. Connector Type: SMA Plug.
  8. Housing Material: ABS / Black.

Package Includes

  • 1 × 2400 – 2483 MHz 3dBi Gain Rubber Duck Antenna

Frequently Asked Questions

What is the 2400 – 2483 MHz 3dBi Gain Rubber Duck Antenna used for?
LAMBDOID is a hardware technology company specializing in RF and solar products. Its focus is the design and manufacture of standard and customized RF solutions for the telecommunications industry, including RF antennas, RF devices, RF shields, RF cables and assemblies, and RF connectors.
What are its main features?
Model: LWC-2400-RD-RA-SMA-PLUG-03; Gain: 3 dBi; Connector: SMA Plug; Durable, hard body.
What are the power or battery requirements?
Power Handling (W): 5. Match the supply or charger to these specifications before connecting the product.
What operating or installation limits should I consider?
Operating Humidity: 5–75%; Operating Temperature (°C): -30 to 60°C; Dimensions: 110 × 10 mm; Shipping Dimensions: 1 × 1 × 1 cm. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × 2400 – 2483 MHz 3dBi Gain Rubber Duck Antenna.
