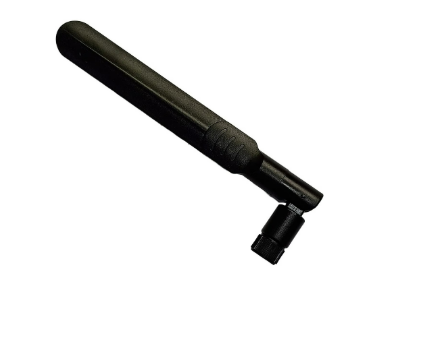

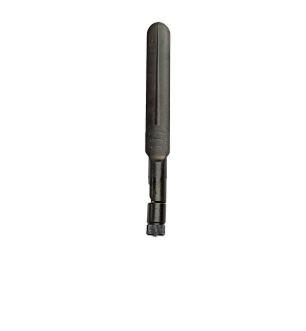

2400 MHz & 5500 MHz 3/5 dBi Gain Rubber Duck Antenna
Low Stock, 1 left
Product Description
The 2400 MHz & 5500 MHz 3/5 dBi Gain Rubber Duck Antenna is an RF antenna for wireless equipment operating within the stated frequency band.
Key characteristics include Operating Frequency: 2400 to 5500 MHz; Gain: 3/5 dBi; Connector Type: SMA Plug; Power Handling: 10 W. Verify the actual connector, impedance, gain, mounting format and supported frequency band before ordering.
Applications
Product Specifications
| Wireless & RF | |
|---|---|
| Operating Frequency | 2400 to 5500 MHz |
| Gain | 3/5 dBi |
| VSWR | <2.0 |
| Polarization | Vertical |
| HPBW | Horizontal: 360°; Vertical: 30° / 40° |
| Connector Type | SMA Plug |
| Impedance | 50 Ω |
| Power & Electrical | |
| Power Handling | 10 W |
| Physical & Environmental | |
| Housing Material | ABS / Polycarbonate |
| Operating Humidity | 5–75% |
| Operating Temperature | -30°C to +60°C |
| Weight | <40 g |
| Dimensions | 160 × 12 mm |
| Packaging & Shipping | |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
Product Features
- Plug-and-play device
- Durable, rigid body
- Operating Frequency: 2400 to 5500 MHz.
- Gain: 3/5 dBi.
- Power Handling: 10 W.
- Connector Type: SMA Plug.
- Housing Material: ABS / Polycarbonate.
- Dimensions: 160 × 12 mm.
Package Includes
- 1 × 2400 MHz & 5500 MHz 3/5 dBi Gain Rubber Duck Antenna
Frequently Asked Questions
What is the 2400 MHz & 5500 MHz 3/5 dBi Gain Rubber Duck Antenna used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Operating Frequency: 2400 to 5500 MHz
- Gain: 3/5 dBi
- Power Handling: 10 W
- Connector Type: SMA Plug
- Housing Material: ABS / Polycarbonate
- Dimensions: 160 × 12 mm
