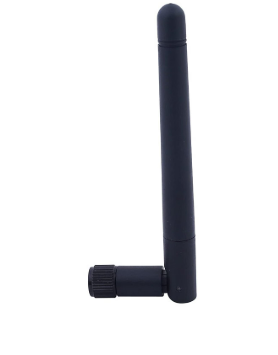

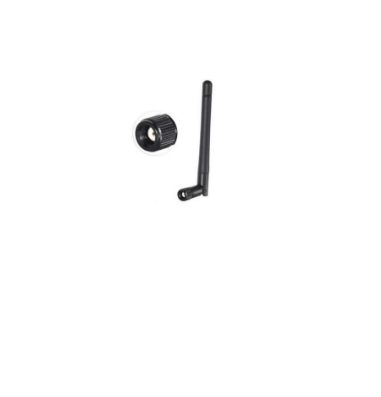

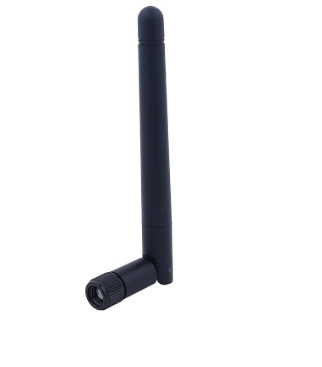

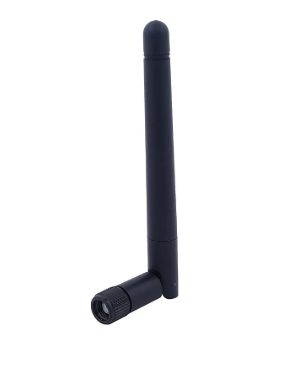

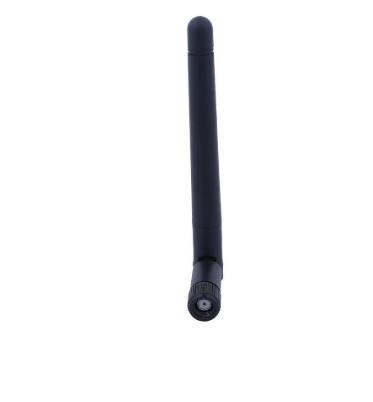

2400 & 5500 MHz/ 3dBi Gain Rubber Duck Antenna
Low Stock, 1 left
Product Description
This rubber duck antenna features a right-angle foldable connector and a 3 dBi gain. It operates in the 2400–2483 MHz and 5125–5875 MHz frequency bands. Applications include Wi-Fi, Bluetooth, Zigbee and ISM-band wireless systems.
Key characteristics include Model: LWC-2400-5500-RD-RA-RPSMAPLUG-0305; Operating Frequency: 2400–2483 MHz; 5125–5875 MHz; Gain: 3 dBi; Connector Type: RP-SMA Plug. Verify the actual connector, impedance, gain, mounting format and supported frequency band before ordering.
Applications
Product Specifications
| General | |
|---|---|
| Item Type | Rubber Duck Antenna |
| Model | LWC-2400-5500-RD-RA-RPSMAPLUG-0305 |
| Wireless & RF | |
| Operating Frequency | 2400–2483 MHz; 5125–5875 MHz |
| Gain | 3 dBi |
| VSWR | <2.0 |
| Polarization | Vertical |
| HPBW | Horizontal: 360°; Vertical: 30° / 40° |
| Connector Type | RP-SMA Plug |
| Measurement & Sensor | |
| Humidity Range | 5–75% |
| Power & Electrical | |
| Power Handling | 10 W |
| Physical & Environmental | |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 110 × Ø10 mm |
| Weight | 50 g |
| Packaging & Shipping | |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Other Specifications | |
| Housing | Plastic / Black |
Product Features
- Operating Frequency: 2400–2483 MHz; 5125–5875 MHz.
- Gain: 3 dBi.
- Model: LWC-2400-5500-RD-RA-RPSMAPLUG-0305.
- Power Handling: 10 W.
- Connector Type: RP-SMA Plug.
- Humidity Range: 5–75%.
Package Includes
- 1 × 2400–2483 MHz/3dBi Gain Rubber Duck Antenna
