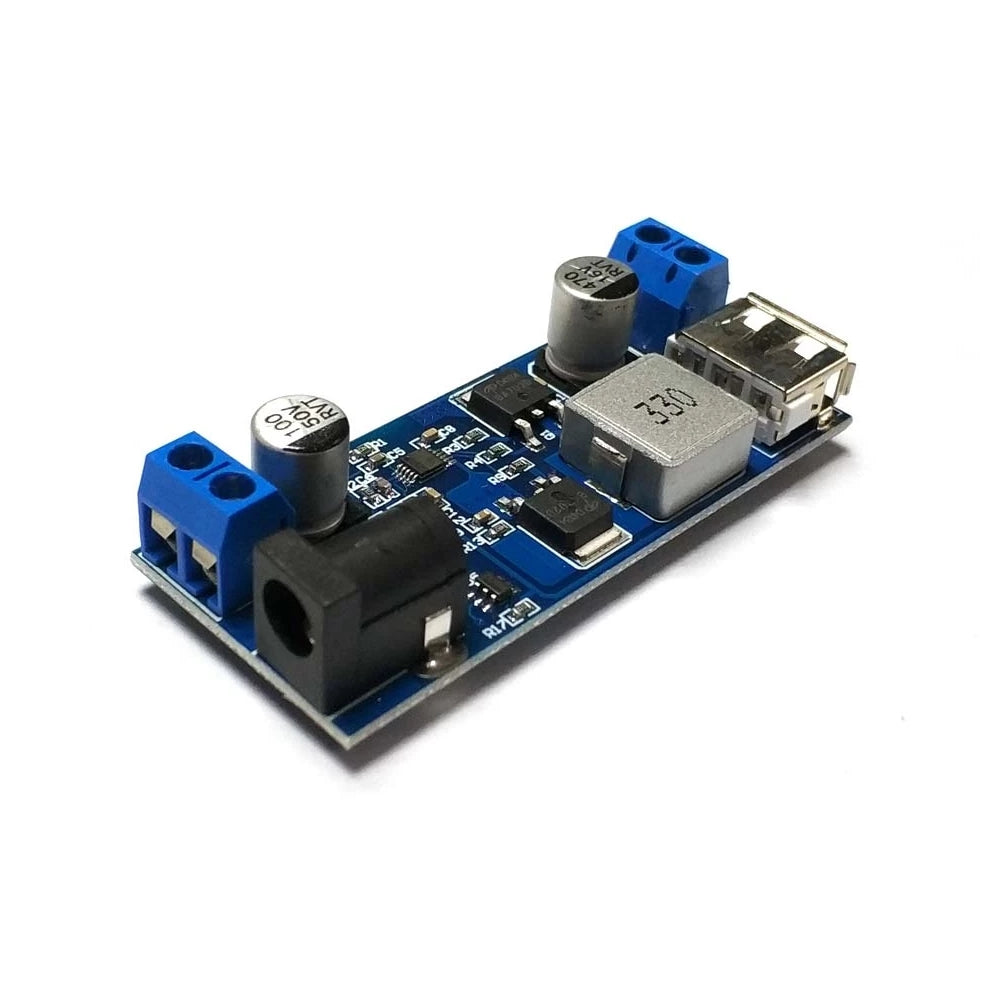

24V/12V to 5V 5A DC-DC XY-3606 Power Converter Module
24V/12V to 5V 5A DC-DC XY-3606 Power Converter Module
Low Stock, 1 left
Product Description
Wide-input synchronous DC-DC step-down power module for converting 9–36VDC sources to approximately 5.2V output. It provides up to 6A at lower input voltages and includes screw terminals, a DC connector and USB output for embedded and mobile-power applications.
Applications
Product Specifications
| Input Voltage | 9–36VDC |
|---|---|
| Output Voltage | 5.2VDC |
| 9–24V Input | Up to 5.2V / 6A / 30W |
| 24–32V Input | Up to 5.2V / 5A / 25W |
| 32–36V Input | Up to 5.2V / 3.5A / 18W |
| Topology | Synchronous DC-DC step-down |
| Output Interfaces | USB and wired/terminal output |
Product Features
- Wide DC Input
Works from 9–36VDC sources, covering common 12V and 24V systems. - 5V-Class Output
Provides approximately 5.2V for USB-powered devices and embedded electronics. - Load Capability Varies with Input
Supports higher output current at lower input voltages and is derated as input voltage rises. - Convenient Connections
Includes terminal, DC-plug and USB interfaces for flexible integration.
Package Includes
1 × 24V/12V to 5V 5A DC-DC XY-3606 Power Converter ModuleOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Wide 9–36VDC input range
- Approx. 5.2V regulated output
- Up to 6A output at lower input ranges
- Synchronous rectification for high efficiency
- USB output with fast-charge identification support
- DC barrel connector and screw terminals
- Suitable for 12V and 24V systems
SKU: 2EMK2056
₹ 142.00
