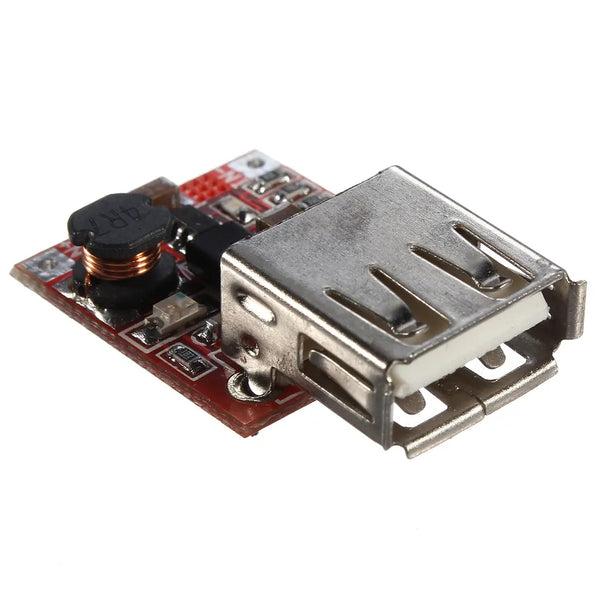

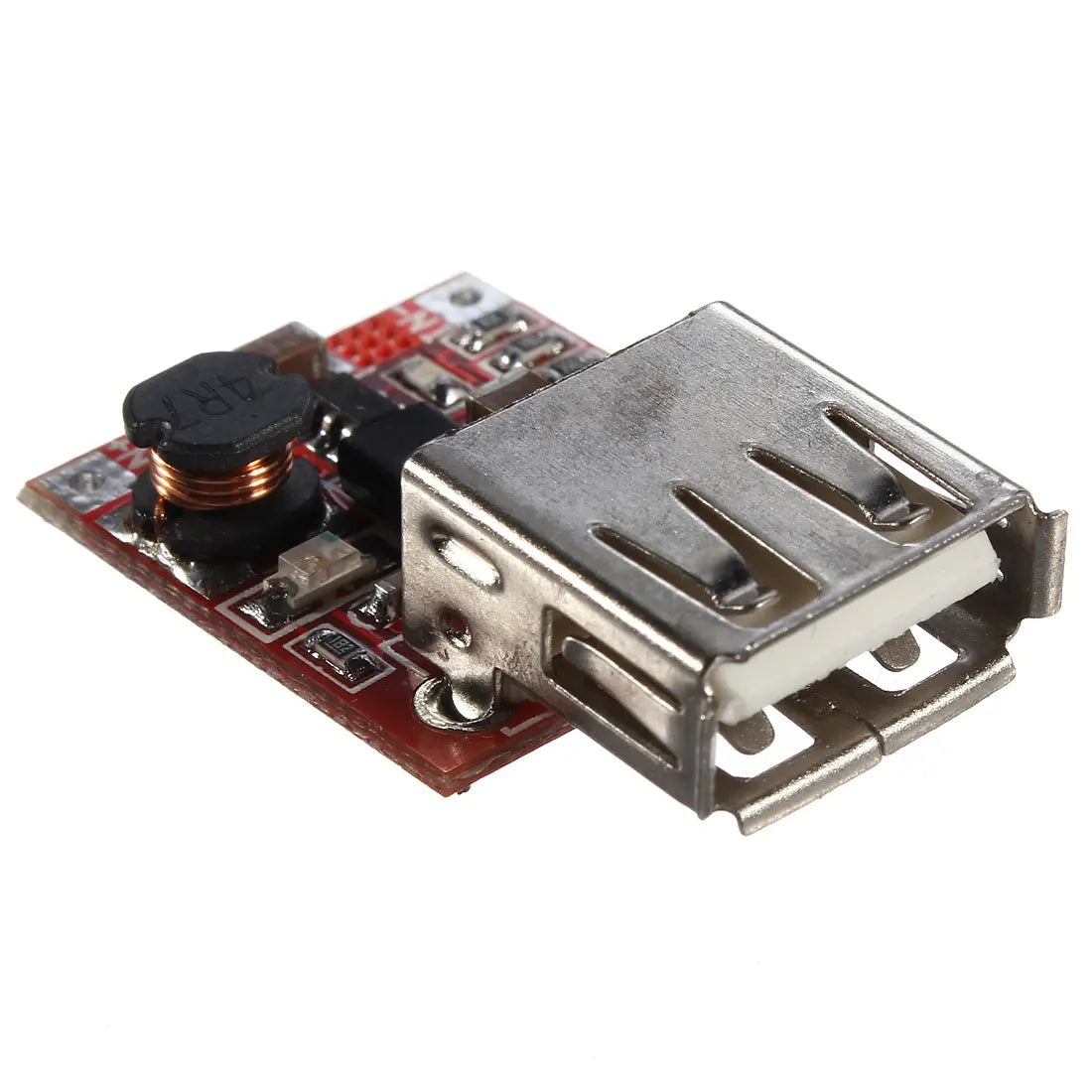

3V to 5V 1A USB Charger DC-DC Step-Up Boost Module

Name: 3V to 5V 1A USB Charger DC-DC Step-Up Boost Module
Brand: TwoElectrons
SKU: 2EMK2058
Price: 183.00 INR
Availability: InStock

No reviews yet

Expert Online
Consultation Remote
Configuration Support Onsite
Deployment Knowledge
Video

Low Stock, 1 left

3V to 5V 1A USB Charger DC-DC Step-Up Boost Module

Product Description

Compact non-isolated DC-DC boost module with standard USB output for battery-powered 5V electronics and charging applications. It accepts approximately 2.5–6VDC input, provides 5V by default, and supports up to 1A output under suitable operating conditions.

Applications

Manufacturing & Industrial

Product Specifications

Converter Type	Non-isolated boost / step-up
Input Voltage	2.5–6VDC
Default Output	5VDC via USB
Modified Output Range	Approx. 4–12V by changing the feedback resistance; keep output power below 5W
Maximum Output Current	1A
Maximum Efficiency	Up to 92%
Switching Frequency	1MHz
Output Ripple	Up to approx. 20mV under stated 5V/1A conditions
Voltage Regulation	±2.5%
Operating Temperature	-40°C to +85°C
Short-Circuit Protection	None
Approx. Size	30 × 13 × 8mm

Product Features

Battery-to-USB Boost Conversion
Raises a low-voltage battery or DC input to a standard 5V-class USB output.
Compact 1MHz Switching Design
High switching frequency supports a small module footprint and efficient conversion.
USB Output
Standard USB connector simplifies powering compatible electronics and portable devices.
Protection Features
The source describes under-voltage and over-current protection; short-circuit protection is not provided.

Package Includes

1 × 3V to 5V 1A USB Charger DC-DC Step-Up Boost Module

Other Information

Applications & Use Cases

Battery-powered 5V electronics
Portable USB power projects
Low-voltage boost conversion for prototypes

Important Note

Short-circuit protection is not provided. Use a protected battery/source and verify polarity and output voltage before connecting equipment. Output voltage changes require resistor modification; this is not an onboard-potentiometer adjustable module.
