40V Adjustable Voltage Regulator Module DC-DC LM2596HVS Buck Converter

Name: 40V Adjustable Voltage Regulator Module DC-DC LM2596HVS Buck Converter
Brand: TwoElectrons
SKU: 2EMK2059
Price: 91.00 INR
Availability: InStock

No reviews yet

Expert Online
Consultation Remote
Configuration Support Onsite
Deployment Knowledge
Video

Low Stock, 1 left

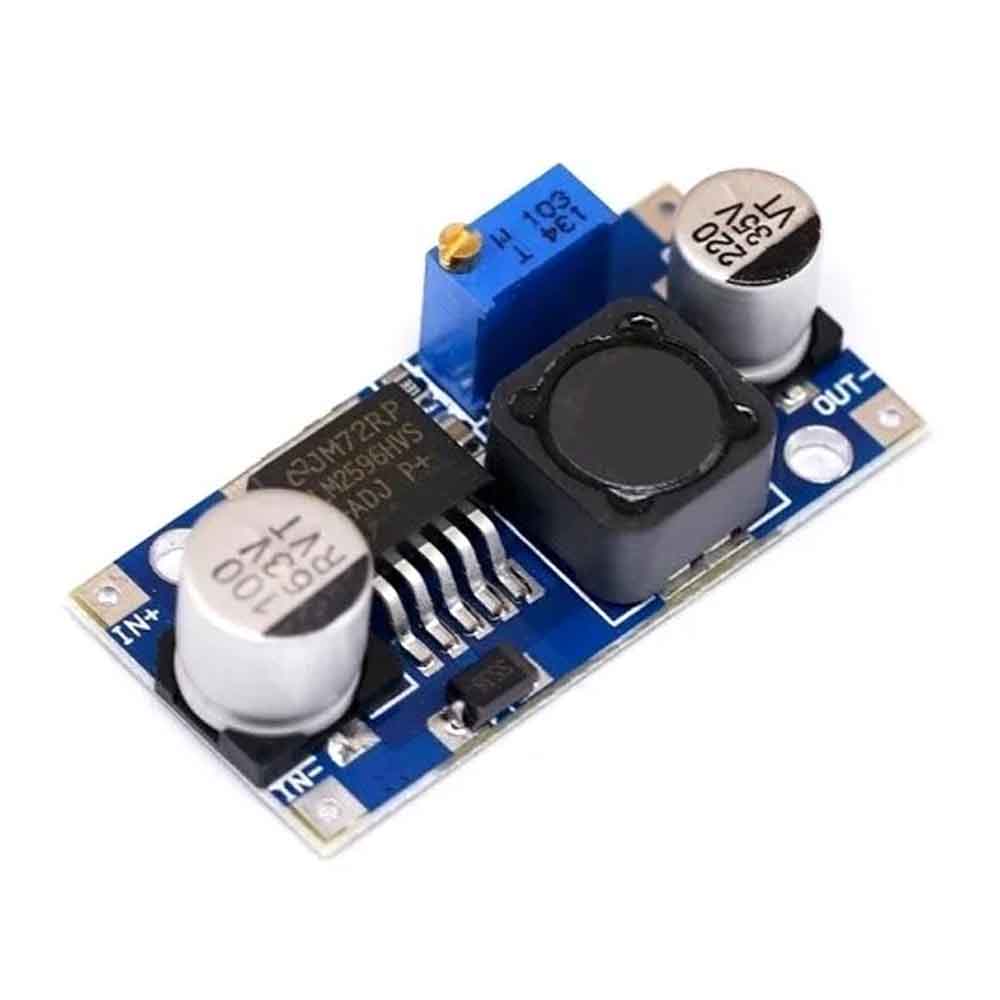

40V Adjustable Voltage Regulator Module DC-DC LM2596HVS Buck Converter

Product Description

LM2596HVS-based adjustable DC-DC buck converter for stepping higher DC input voltages down to a lower regulated output. The source lists operation up to 40V input, 2A rated output and built-in reverse-polarity and short-circuit protection for general electronics and power-supply projects.

Applications

Manufacturing & Industrial

Product Specifications

Controller	LM2596HVS
Converter Type	DC-DC buck / step-down
Input Voltage	4–40VDC
Output Voltage	Approx. 1.3–30VDC per source specification block
Rated Output Current	2A
Switching Frequency	100kHz
Low-Dropout Difference	Approx. 1.5V minimum input-to-output difference
Static Consumption	Approx. 6mA
Protection	Input reverse polarity; output short circuit

Product Features

Higher-Voltage Buck Conversion
Designed to reduce DC input voltages up to the source-listed 40V range to a lower adjustable output.
Adjustable Regulation
Onboard potentiometer provides continuous output-voltage setting within the module operating range.
Integrated Protection
Includes source-listed input reverse-polarity and output short-circuit protection.
General-Purpose Power Module
Suitable for embedded electronics, battery systems and prototype regulated supplies.

Package Includes

1 × 40V Adjustable Voltage Regulator Module DC-DC LM2596HVS Buck Converter

Other Information

Applications & Use Cases

Adjustable DC bench and prototype supplies
Battery and automotive voltage reduction
Embedded electronics power regulation

Source Specification Note

The RoboticsDNA page title and description contain broader voltage/current figures than its specification block. This listing uses the more conservative 4–40V input, approximately 1.3–30V output and 2A rated current values from the source specification table.
