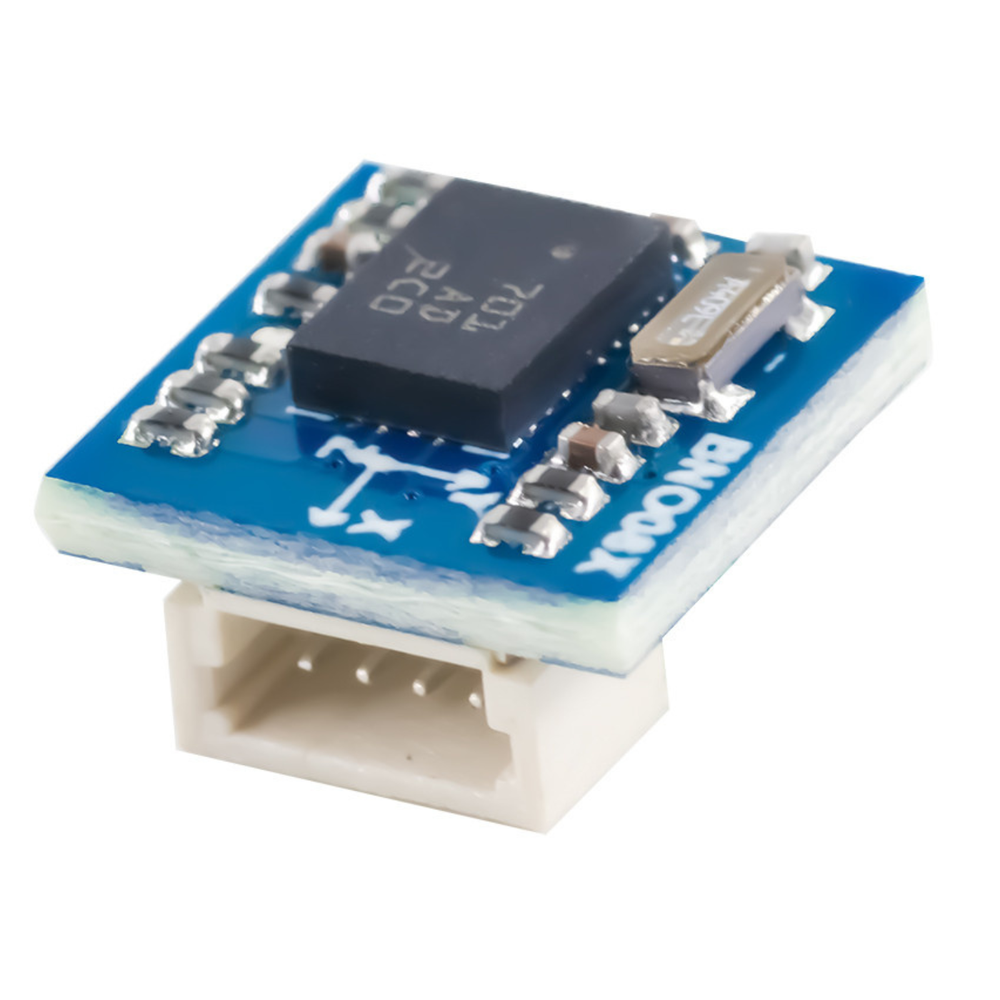

7Semi BNO086 IMU Mini Breakout
Lead Time
Product Description
7Semi BNO086 IMU Mini Breakout is a compact 9-axis motion and orientation sensor board with onboard sensor-fusion processing for robotics and intelligent motion applications.
Main Features
- BNO086 9-axis IMU
- Accelerometer, gyroscope and magnetometer sensing
- Integrated orientation and quaternion sensor fusion
- I2C communication
- 3.3 V operation
- Compact breakout format for space-constrained designs
Applications
Robotics, orientation tracking, VR/AR prototypes, motion classification, navigation and embedded AI sensing.
Package Includes
1 × 7Semi BNO086 IMU Mini Breakout board.
Warranty: 15 days. Shipping and returns are subject to TwoElectrons policy.
Product Specifications
| Sensor IC | BNO086 |
| Degrees of Freedom | 9-DOF |
| Sensors | Accelerometer, gyroscope, magnetometer |
| Supply | 3.3 V class operation |
| Interface | I2C |
| Outputs | Orientation, quaternion, linear acceleration and angular velocity |
Product Features
- Processes raw inertial data onboard to provide stable orientation and motion outputs.
- Reduces host-controller processing requirements for robotics and navigation projects.
- Compact form factor suits drones, wearables, AR/VR and space-constrained embedded systems.
- Provides fused orientation data for motion tracking and intelligent control applications.
Package Includes
- 1 × 7Semi BNO086 IMU Mini Breakout Board
