AMS1117 3.3V Power Supply Module

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time
AMS1117 3.3V Power Supply Module

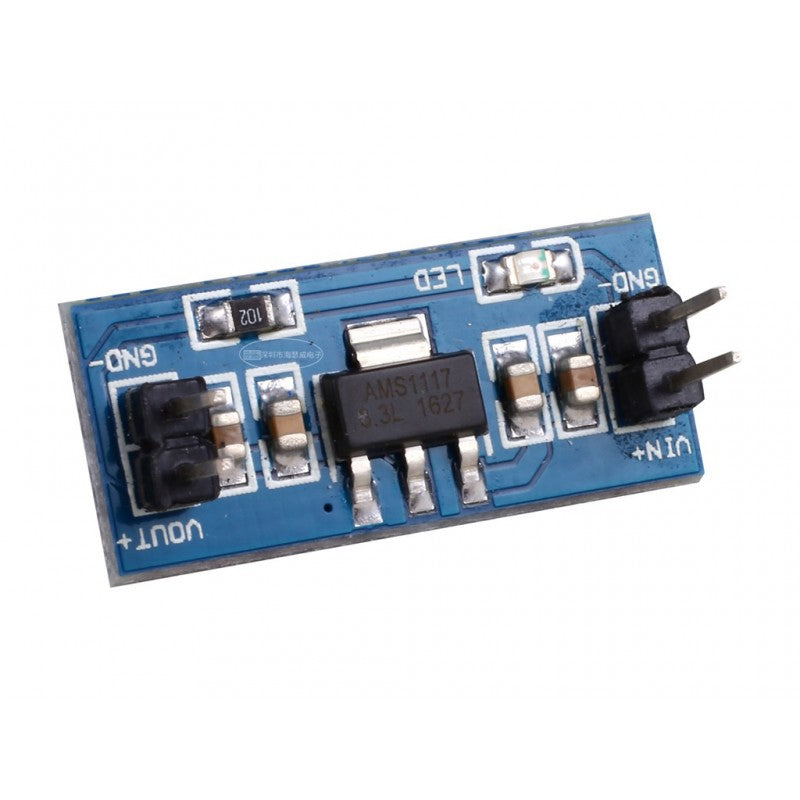

  • AMS1117 3.3V Power Supply Module

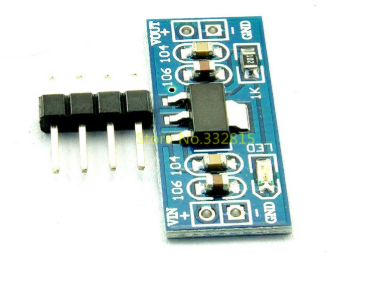

  • AMS1117 3.3V power supply module — view 1

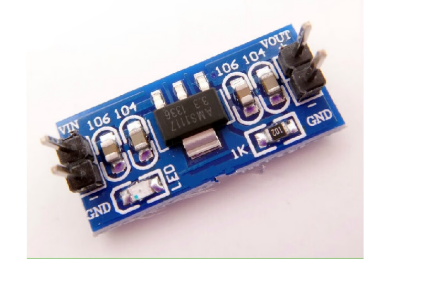

  • AMS1117 3.3V power supply module — view 2

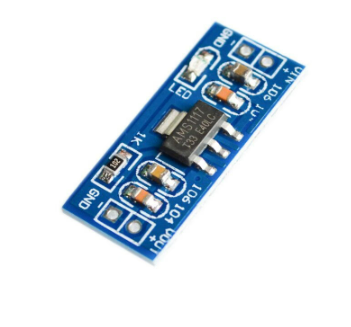

  • AMS1117 3.3V power supply module — view 3

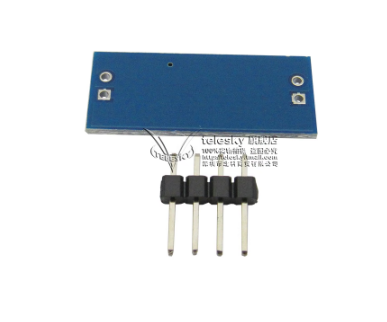

  • AMS1117 3.3V power supply module — view 4

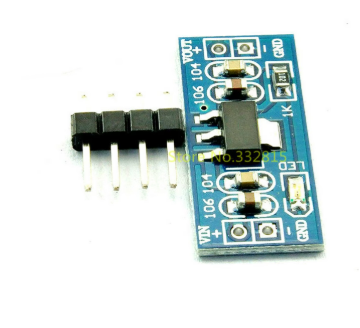

  • AMS1117 3.3V power supply module — view 5

Product Description

AMS1117 3.3V Power Supply Module is designed for the power-conversion or regulation task specified below. It suits a build where the available source and the equipment’s required supply need to be matched. It accepts 4.5 to 12 at the specified input. The output-voltage specification is 3.3.

The shipping dimensions figure is 6 × 3 × 1 cm. When choosing this power supply module, start with the documented configuration. Assess input, output and load requirements together. An adjustable supply needs its setting checked against the connected circuit, while any stated cooling or wiring conditions remain part of the installation. The hardware is built around AMS1117.

Note:The Maximum Operating Current (A) specification is 0.8. The Length (mm) specification is 26. The Width (mm) specification is 12. The Weight (g) specification is 0.6.

Product Specifications

IC ChipAMS1117
Input Voltage (V)4.5 to 12
Output Voltage (V)3.3
Maximum Operating Current (A)0.8
Length (mm)26
Width (mm)12
Weight (g)0.6
Shipping Weight0.085 kg
Shipping Dimensions6 × 3 × 1 cm

Product Features

  1. Onboard AMS1117 voltage regulator
  2. Red LED indicates power-on status
  3. Output connection interface for convenient experiments
  4. Two mounting holes for fixing the module to an experimental expansion board
  5. Small, compact, 4-pin, breadboard-friendly design
  6. 2-pin single-row input and output connections
  7. Double-sided PCB design with a neat layout

Package Includes

  • 1 × AMS1117 3.3V power supply module (unsoldered)

Frequently Asked Questions

What is the AMS1117 3.3V Power Supply Module used for?
This AMS1117 3.3V Power Supply Module uses an AMS1117 regulator to provide a fixed 3.3V output from a DC 4.5V–12V input, with a maximum load current of 800 mA. The input voltage must exceed the output voltage by more than 1V.
What are its main features?
Input: DC 4.5V–12V; input must exceed output by more than 1V; Output: 3.3V, up to 800 mA; do not exceed 800 mA load current; Onboard AMS1117 chip; Red LED power indicator.
What are the power or battery requirements?
Input Voltage (V): 4.5 to 12; Output Voltage (V): 3.3. Match the supply or charger to these specifications before connecting the product.
What operating or installation limits should I consider?
Maximum Operating Current (A): 0.8; Shipping Dimensions: 6 × 3 × 1 cm. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × AMS1117 3.3V power supply module (unsoldered).

Other Information

Suggested Uses
  • Microcontroller and sensor power rails
  • Low-noise regulated supplies
  • Embedded electronics and prototyping
Before You Order

Voltage dropped by a linear regulator produces heat. Cooling must suit the application, and operation must remain within the stated current and temperature limits.
