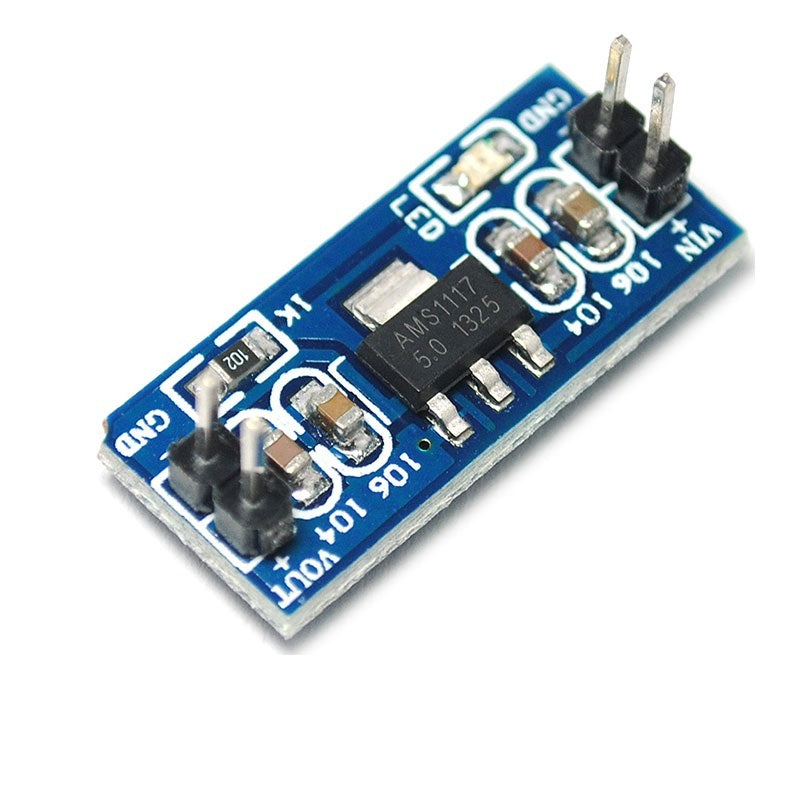

AMS1117-5.0 LDO 800mA Power Supply Module

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time
AMS1117-5.0 LDO 800mA Power Supply Module
  • AMS1117-5.0 LDO 800mA Power Supply Module

Product Description

AMS1117-5.0 LDO 800mA Power Supply Module is designed for the power-conversion or regulation task specified below. It suits a build where the available source and the equipment’s required supply need to be matched. The hardware is built around AMS1117-5.0. The Output specification is 5V DC. The Current Class specification is Up to 800mA class. When choosing this power supply module, start with the documented configuration. Assess input, output and load requirements together. An adjustable supply needs its setting checked against the connected circuit, while any stated cooling or wiring conditions remain part of the installation. The specifications below bring the electrical, mechanical and operating details together so you can compare this version with the requirements of the intended equipment. Check the supplied contents before ordering additional accessories; items outside that list are not confirmed as part of this package.

Product Specifications

Product CategoryLinear Power Supply Boards
Core ICAMS1117-5.0
Output5V DC
Current ClassUp to 800mA class

Product Features

  1. Core function:Low-dropout 5V linear regulation.
  2. Integration:Compact LDO module for embedded circuits.
  3. Use:Use this version for sensors, controllers and low-power development.

Package Includes

  • 1 × AMS1117-5.0 LDO 800mA Power Supply Module

Frequently Asked Questions

What is the AMS1117-5.0 LDO 800mA Power Supply Module used for?
AMS1117-5.0 low-dropout linear regulator module providing stable 5V output for embedded electronics, sensors and prototyping.
What are its main features?
AMS1117-5.0 LDO regulator; Regulated 5V output; Up to 800mA class output.
What specifications should I check before choosing this product?
Core IC: AMS1117-5.0; Output: 5V DC; Current Class: Up to 800mA class.
What operating or installation limits should I consider?
Current Class: Up to 800mA class. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × AMS1117-5.0 LDO 800mA Power Supply Module.

Other Information

Suggested Uses
  • Microcontroller and sensor power rails
  • Low-noise regulated supplies
  • Embedded electronics and prototyping
Before You Order

Voltage dropped by a linear regulator produces heat. Cooling must suit the application, and operation must remain within the stated current and temperature limits.
