AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time

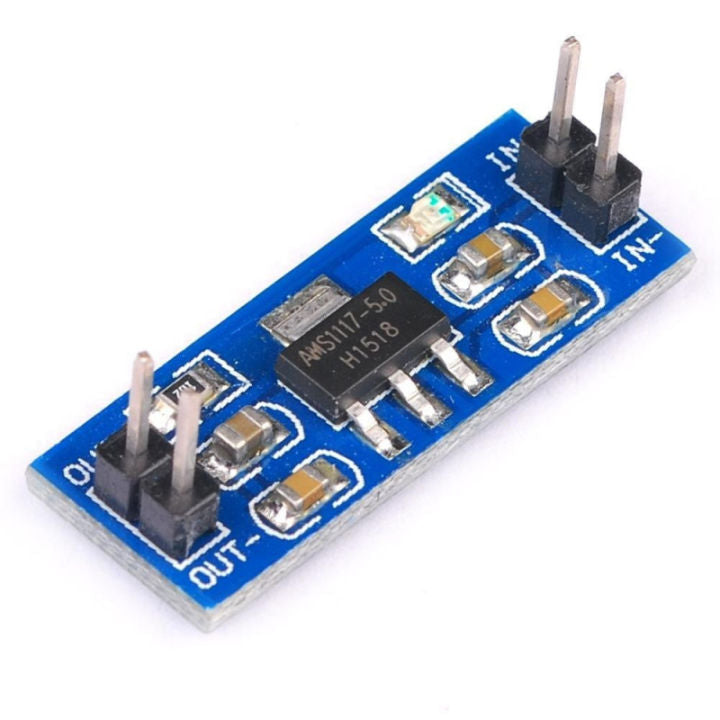

AMS1117 5V Step-Down Power Supply Module
  • AMS1117 5V Step-Down Power Supply Module

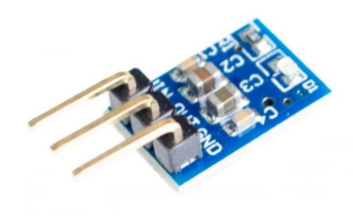

  • AMS1117 3-pin power supply module — view 1

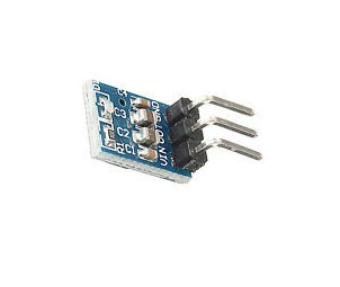

  • AMS1117 3-pin power supply module — view 2

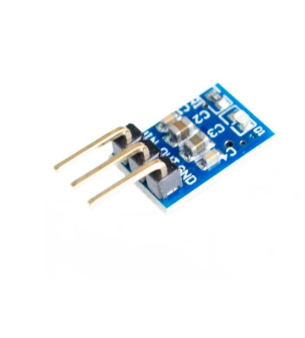

  • AMS1117 3-pin power supply module — view 3

Product Description

AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module is designed for the power-conversion or regulation task specified below. It suits a build where the available source and the equipment’s required supply need to be matched. It accepts 4.5 to 15 (supplied module specification) at the specified input. The output-voltage specification is 3.3 (fixed).

The shipping dimensions figure is 2 × 2 × 2 cm. When choosing this power supply module, start with the documented configuration. Assess input, output and load requirements together. An adjustable supply needs its setting checked against the connected circuit, while any stated cooling or wiring conditions remain part of the installation. The Maximum Output Current specification is 800 mA.

The Length (mm) specification is 13. The Width (mm) specification is 9. The Weight (g) specification is 14. The Shipping Weight specification is 0.018 kg.

Product Specifications

Model No. / NameAMS1117-3.3
Input Voltage (V)4.5 to 15 (supplied module specification)
Output Voltage (V)3.3 (fixed)
Maximum Output Current800 mA
Length (mm)13
Width (mm)9
Weight (g)14
Shipping Weight0.018 kg
Shipping Dimensions2 × 2 × 2 cm

Product Features

  1. Onboard AMS1117 chip
  2. Red LED indicates power-on status
  3. Output interface for convenient experimental connections
  4. Small, compact, 3-pin, breadboard-friendly design

Package Includes

  • 1 × AMS1117 3.3V Power Supply Module LDO 800mA

Frequently Asked Questions

What is the AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module used for?
This module is a compact breakout board for the AMS1117-3.3 LDO regulator, designed to provide a fixed 3.3V DC output for compatible electronic projects. Its specified maximum output current is 800 mA.
What are its main features?
Input voltage: 4.5V–15V (supplied module specification); Output voltage: fixed 3.3V; Maximum output current: 800 mA; Onboard AMS1117 chip.
What are the power or battery requirements?
Input Voltage (V): 4.5 to 15 (supplied module specification); Output Voltage (V): 3.3 (fixed). Match the supply or charger to these specifications before connecting the product.
What operating or installation limits should I consider?
Maximum Output Current: 800 mA; Shipping Dimensions: 2 × 2 × 2 cm. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × AMS1117 3.3V Power Supply Module LDO 800mA.

Other Information

Suggested Uses
  • Microcontroller and sensor power rails
  • Low-noise regulated supplies
  • Embedded electronics and prototyping
Before You Order

Voltage dropped by a linear regulator produces heat. Cooling must suit the application, and operation must remain within the stated current and temperature limits.
