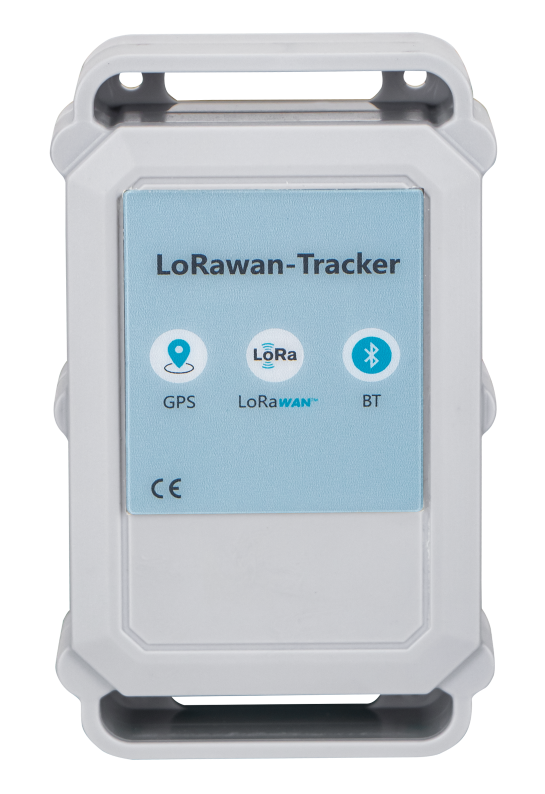

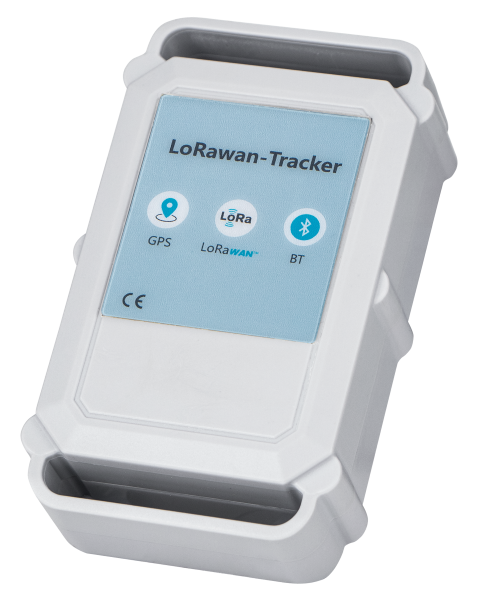

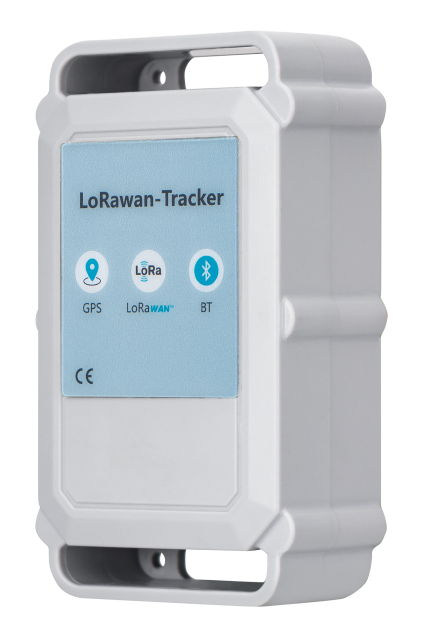

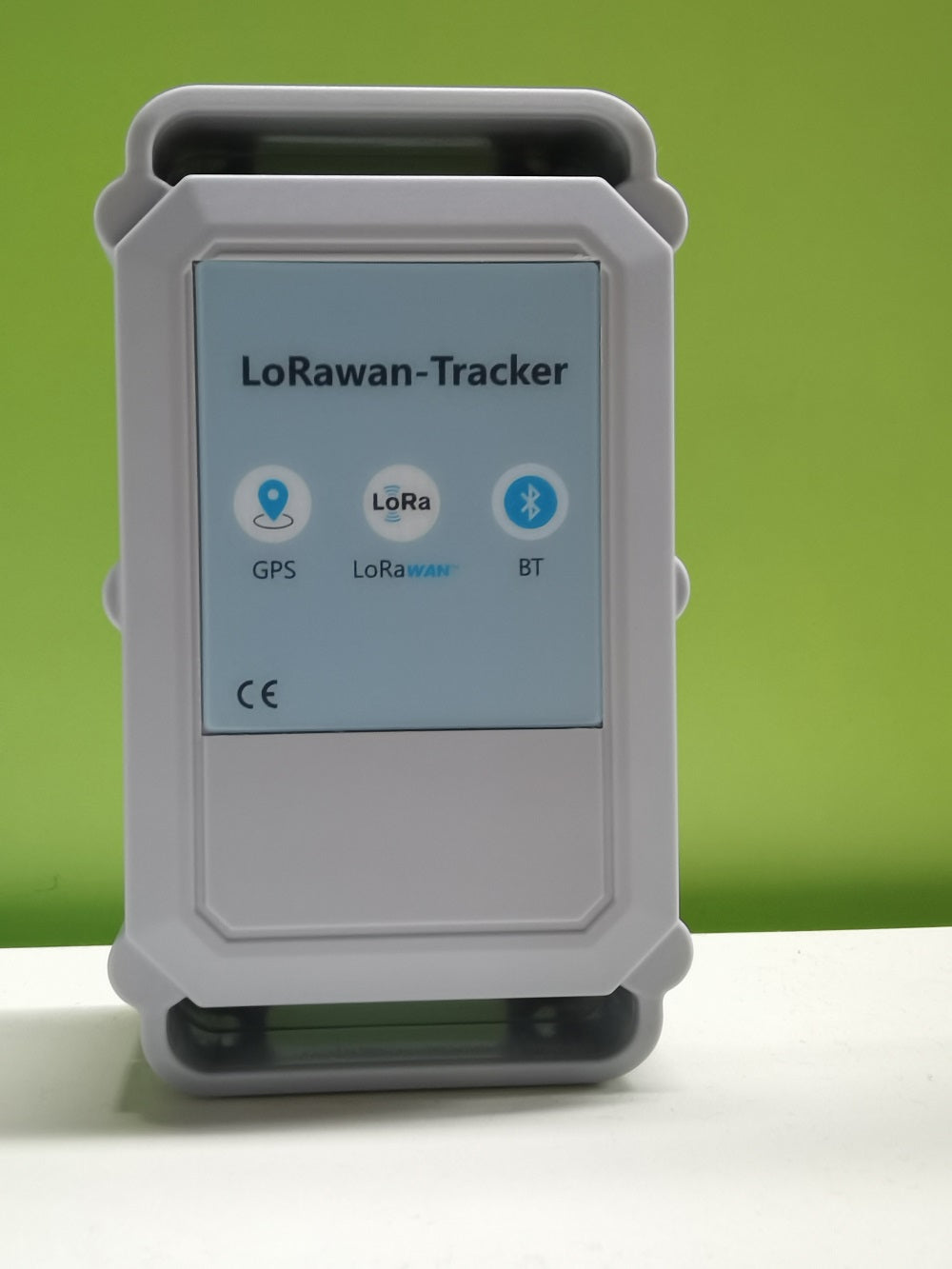

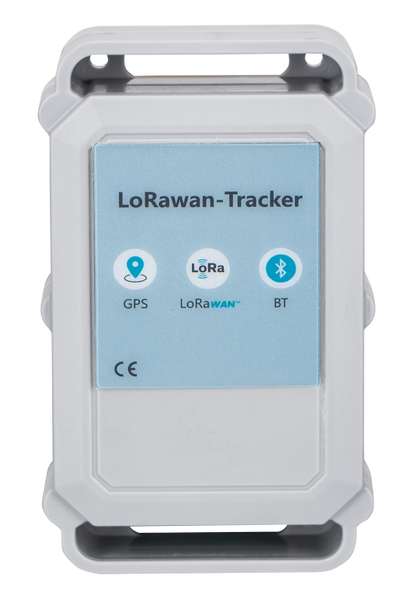

AN-122B LoRaWAN GPS Tracker with Bluetooth
Lead Time
Product Description
AN-122B LoRaWAN GPS Tracker with Bluetooth is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. The Power On/Off specification is Physical button and BLE configuration. The Maximum Tx Power specification is 19 dBm.
The BLE Tx Power specification is 0 dBm. When choosing this lorawan gps asset tracker with bluetooth, start with the documented configuration. Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. Power is provided through the stated Rechargeable battery arrangement.
Power is provided through the stated 3.7 V / 2000mAh rechargeable arrangement. It accepts DC 4.2 V at the specified input. The Frequency Bands specification is CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional). The dimensions figure is 111 × 65 × 33.5 mm.
Applications
Product Specifications
| Model | AN-122B |
| Product Type | LoRaWAN GPS Asset Tracker with Bluetooth |
| Core | ARM Cortex-M33 @ 38.4 MHz (32-bit) |
| Memory | 352 KB Flash, 32 KB RAM |
| G-Sensor | 2g MEMS 3-axis accelerometer |

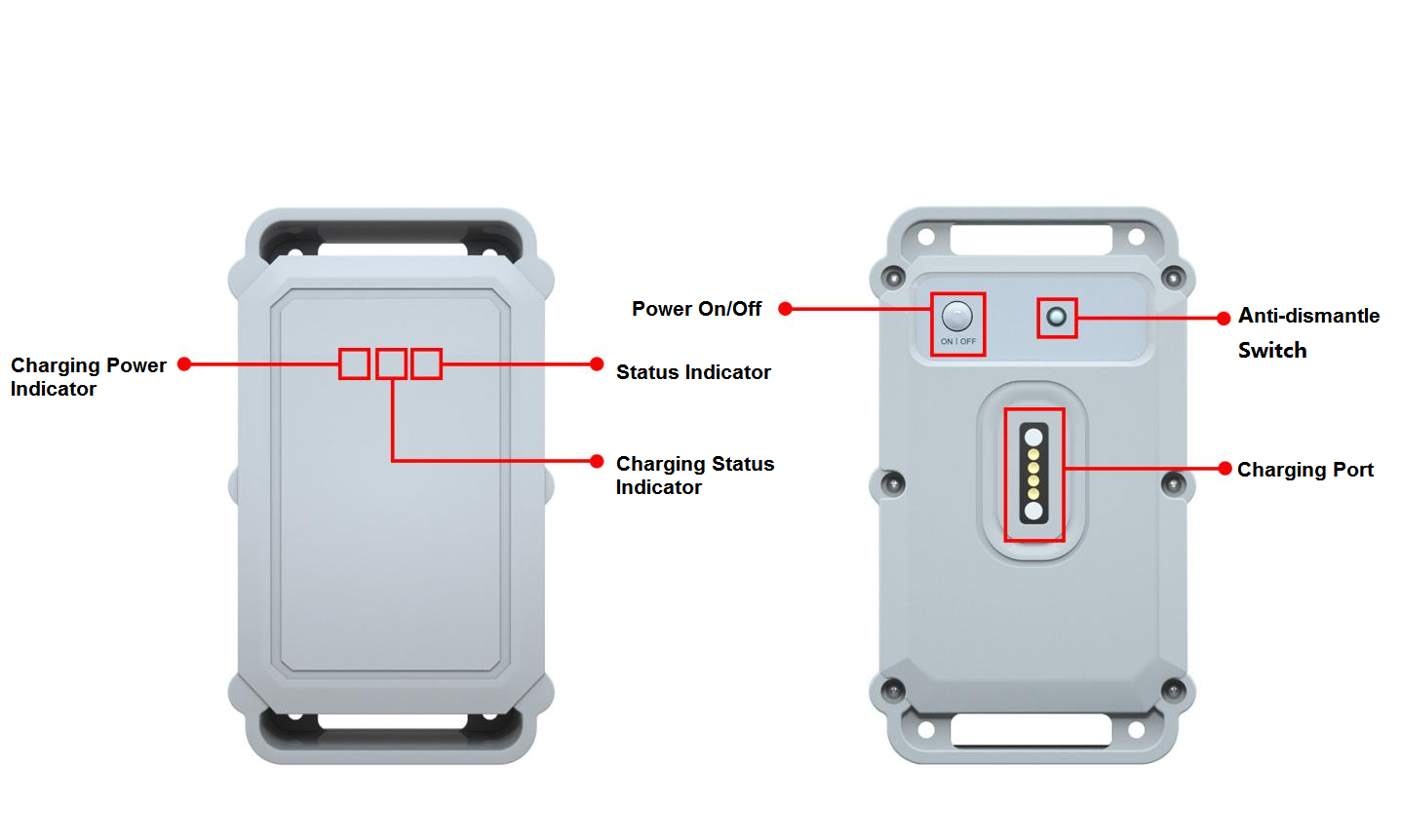

| Anti-Tamper | Anti-tamper button with alarm |

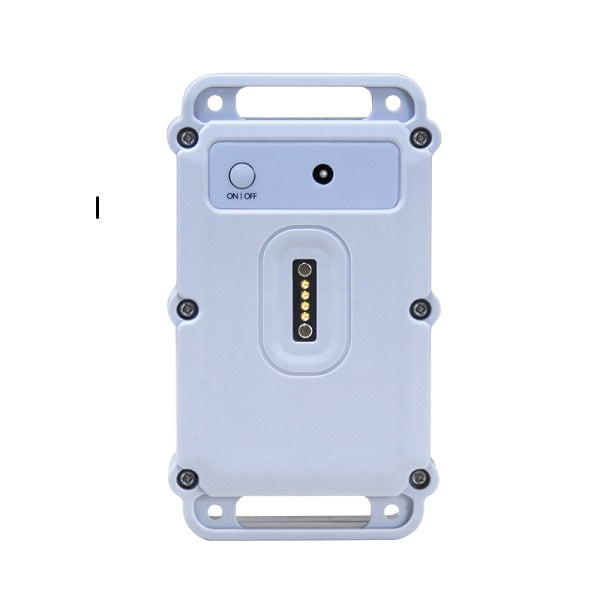

| Power On/Off | Physical button and BLE configuration |
| GNSS Positioning | GPS and BeiDou |
| GPS Accuracy | ≤5 m |
| Bluetooth | Bluetooth 5.0 or above |
| GPS Antenna | 1575.42 MHz; bandwidth ±2 MHz; gain 2 dBi |
| LoRa Antenna | Built-in; bandwidth ±40 MHz; gain 1 dBi |
| Data Rate | 300 bps–5.4 Kbps |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional) |
| Network Access | OTAA / ABP (optional) |
| LoRaWAN Class | Class A |
| Configuration | LoRa P2P, Bluetooth |
| Maximum Tx Power | 19 dBm |
| LoRa Rx Sensitivity | -141 dBm (SF12) |
| BLE Tx Power | 0 dBm |
| BLE Rx Sensitivity | -96 dBm |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% |
| Power Supply | Rechargeable battery |
| Battery | 3.7 V / 2000mAh rechargeable |
| Supply Voltage | DC 4.2 V |
| Standby Current | ≤40 µA |
| Rx Current | ≤16 mA |
| Tx Current | ≤150 mA |
| Ingress Protection | IP65 |

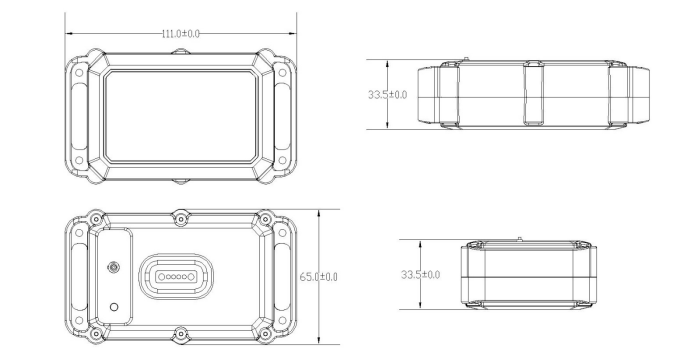

| Dimensions | 111 × 65 × 33.5 mm |
Product Features
- Available functions include the standard LoRaWAN protocol.
- Available functions include GPS positioning with accuracy within 5 meters.
- Built-in MEMS 3-axis accelerometer for monitoring device movement and tilt status.
- Built-in anti-dismantle sensor with alarm function.
- Solar-powered design with a onboard 2000mAh rechargeable battery for extended battery life.
- High-precision dual-mode GNSS positioning with Bluetooth for accurate indoor and outdoor location tracking.
- Smart positioning logic algorithms for accurate location acquisition.
- Available functions include Bluetooth configuration for easier device setup.
- Available functions include motion mode and interval reporting mode for different application scenarios.
- IP65 ingress protection.
Package Includes
- 1 × Winext AN-122B LoRaWAN GPS Tracker
