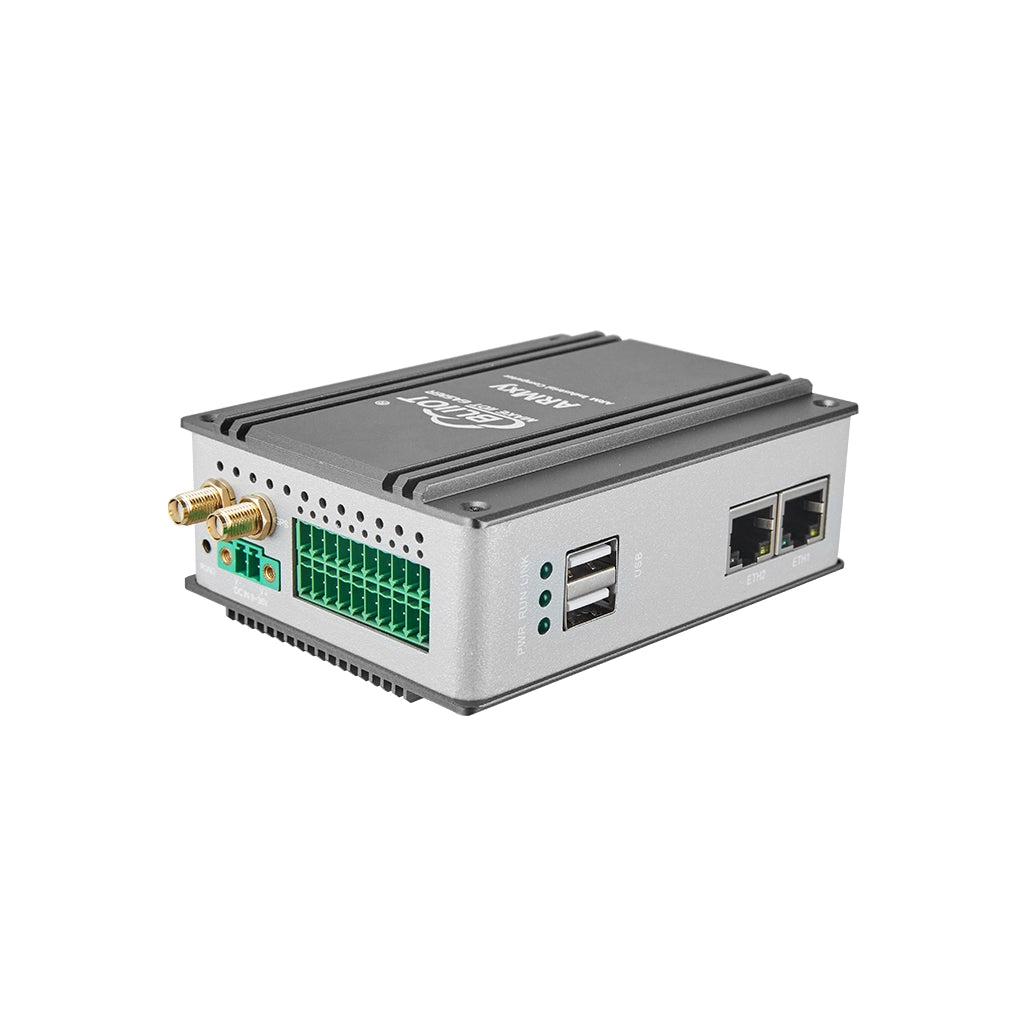

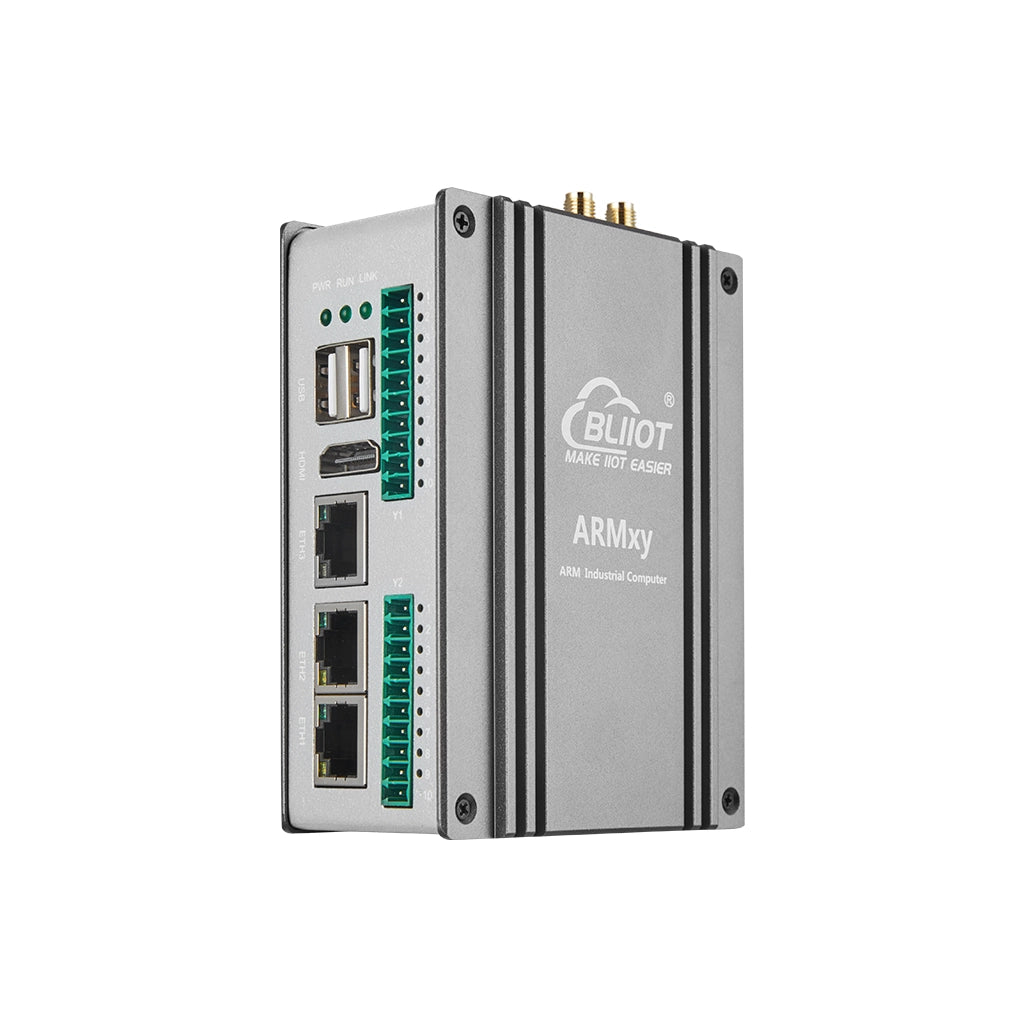

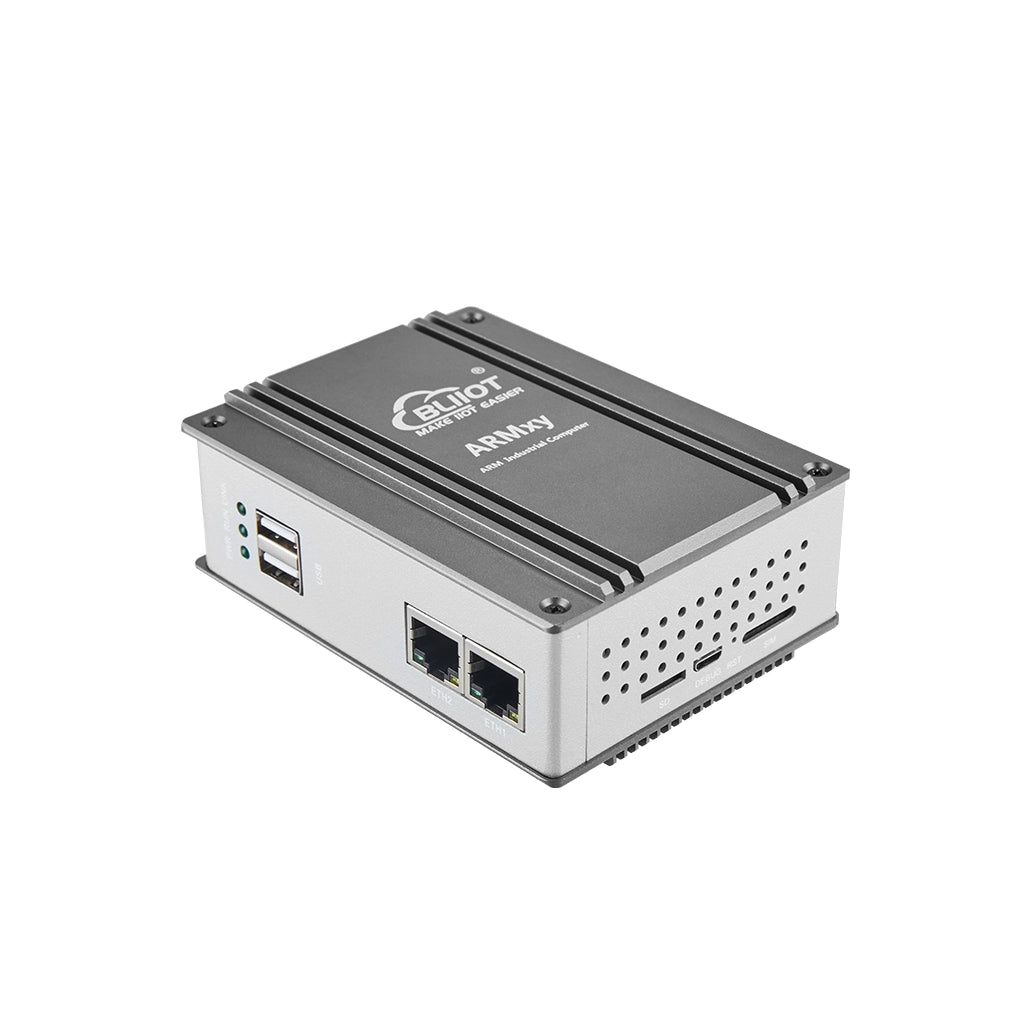

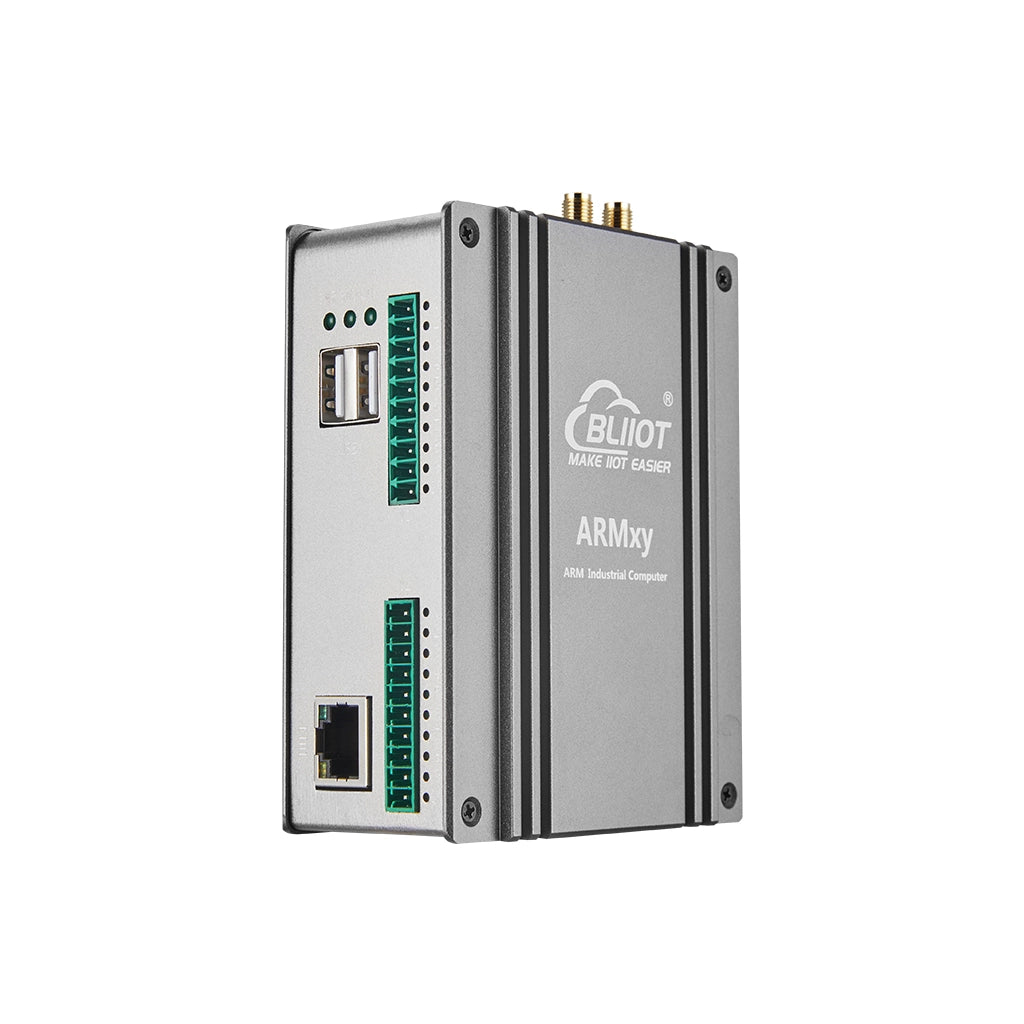

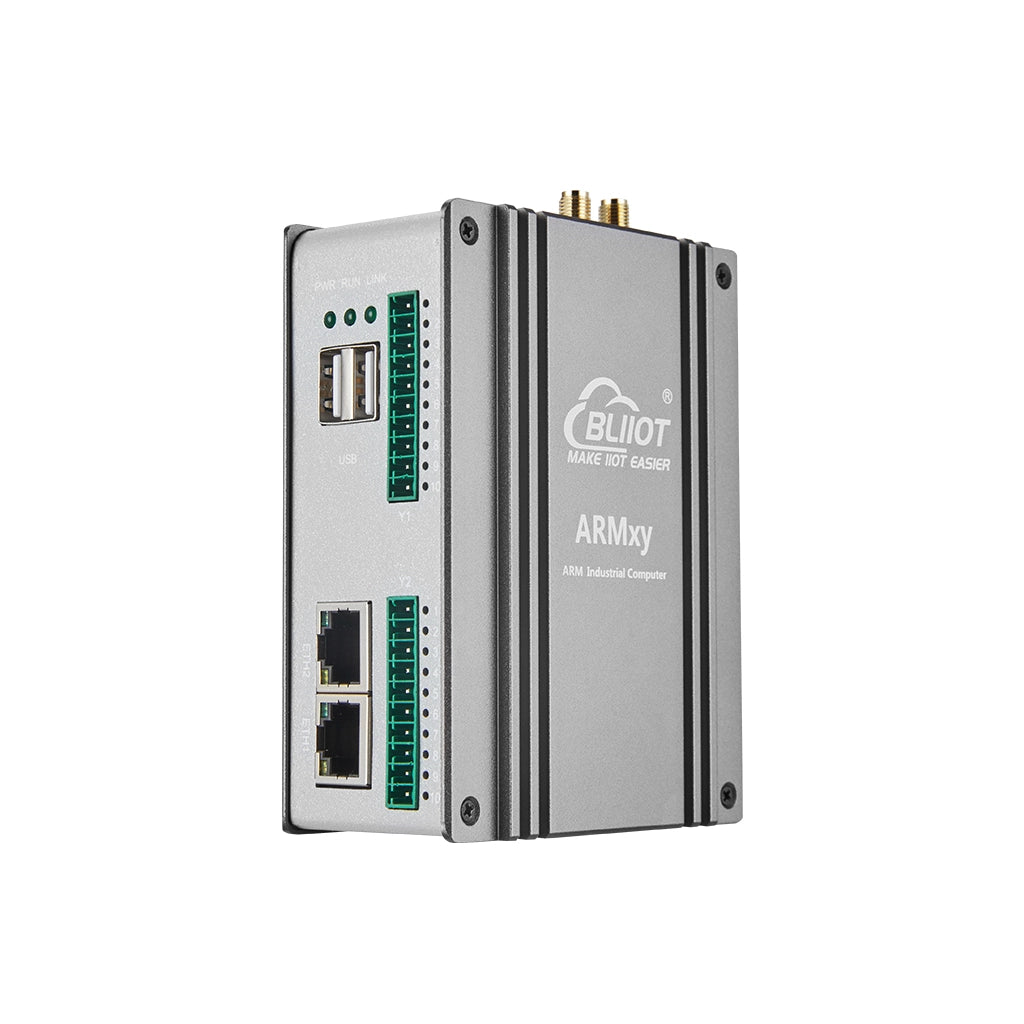

ARMxy BL370 | RK3562 Industrial Computer with 1TOPS NPU and 58,302 I/O Combos
Low Stock, 1 left
Product Description
The ARMxy BL370 is an industrial edge AI computer powered by the Rockchip RK3562/RK3562J, combining quad-core Cortex-A53 processing, a 1 TOPS NPU, real-time Linux control, 4K video acceleration, and modular industrial I/O.
Designed for machine vision, AGVs, predictive maintenance, industrial automation, and intelligent data acquisition, it supports 58,302 factory-validated SOM and I/O combinations.
Applications
Product Specifications
| Model | BL370 |
|---|---|
| CPU | RK3562/RK3562J; 4× Cortex-A53 up to 2.0GHz; Cortex-M0 200MHz |
| NPU | 1 TOPS |
| Memory | 1/2/4GB LPDDR4X |
| Storage | 8/16/32GB eMMC |
| Video | 4K@30fps H.265 decode; 1080p@60fps H.264 encode |
| Interfaces | 1–3× Ethernet; 2× USB 2.0; X/Y board slots; Mini PCIe |
| OS | Linux, Linux-RT, Ubuntu 20.04 |
| Temperature | -40°C to +85°C option |
Product Features
- Supports TensorFlow Lite, PyTorch Mobile, Caffe, MXNet, YOLO and OpenCV.
- Linux-RT offers under 50µs jitter with EtherCAT and optional CODESYS.
- X/Y expansion supports serial, digital, analog, RTD, thermocouple, PWM and pulse I/O.
- Mini PCIe supports optional 4G/LTE, Wi-Fi and Bluetooth.
Package Includes
- 1 × BL370 computer configured to order
- Selected SOM and I/O boards
- Terminal connectors and accessories
- Documentation access
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- RK3562/RK3562J quad-core Cortex-A53
- 1 TOPS edge-AI NPU
- 58,302 modular I/O combinations
- 4K video and Linux-RT
- -40°C to +85°C wide-temperature option
