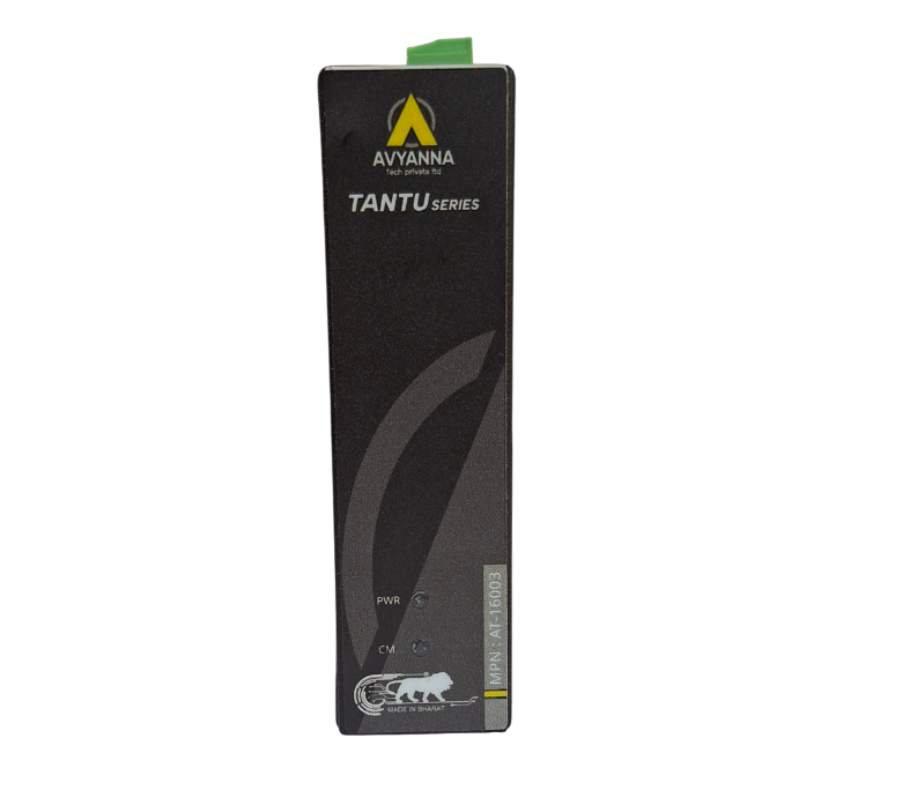

AT-16003 - 8-ch Thermocouple Input Module with Modbus RTU
Low Stock, 1 left
Product Description
AT-16003 - 8-ch Thermocouple Input Module with Modbus RTU is designed for linking field signals or loads with compatible control equipment. It suits monitoring and automation work that needs the documented channel types rather than a general-purpose connection board. Communication Interface support is listed as RS-485. Protocol support is listed as Modbus RTU. It accepts 9–36 VDC at the specified input. When choosing this 8-channel thermocouple input module with modbus rtu, start with the documented configuration. Match each signal or contact requirement to the field equipment. Channel count, communication, supply and isolation describe separate constraints; use the stated configuration information when planning the complete control system. The Thermocouple Input Channels specification is 8 differential channels. The Resolution specification is 19 bit. The Mounting specification is DIN-rail mountable. The Supported Thermocouple Types specification is K, J, N, R, S, T, B, E. The Cold-Junction Accuracy specification is ±0.7°C max (-20°C to +85°C).
Product Specifications
| Brand | Avyanna Tech |
| Model | AT-16003 |
| Product Type | 8-Channel Thermocouple Input Module with Modbus RTU |
| Thermocouple Input Channels | 8 differential channels |
| Supported Thermocouple Types | K, J, N, R, S, T, B, E |
| Resolution | 19 bit |
| Cold-Junction Accuracy | ±0.7°C max (-20°C to +85°C) |
| Communication Interface | RS-485 |
| Protocol | Modbus RTU |
| Connectors | 2 × plug-in terminal block (#14–22 AWG) |
| Galvanic Isolation | 2.5 kV |
| Protection | TVS / ESD protection |
| Operating Voltage | 9–36 VDC |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN-rail mountable |
| Enclosure | Mild steel industrial enclosure |
| Certification | RoHS |
Product Features
- eight differential thermocouple input channels for industrial temperature monitoring is provided by the unit.
- Available functions include K, J, N, R, S, T, B and E thermocouple types for broad process compatibility.
- 19-bit measurement resolution and ±0.7°C maximum cold-junction accuracy support stable temperature acquisition.
- Communicates through RS-485 using Modbus RTU with Automatic Data Direction Control (ADDC).
- 2.5 kV galvanic isolation can help protect the measurement and communication system in industrial environments.
- TVS/ESD protection and a rugged mild-steel enclosure improve reliability in automation panels.
- Supported by Wide 9–36 VDC input: integration into common industrial DC power systems.
Package Includes
- 1 × Avyanna AT-16003 8-channel thermocouple input module
- Other supplied accessories are not specified in the available OEM product information.
