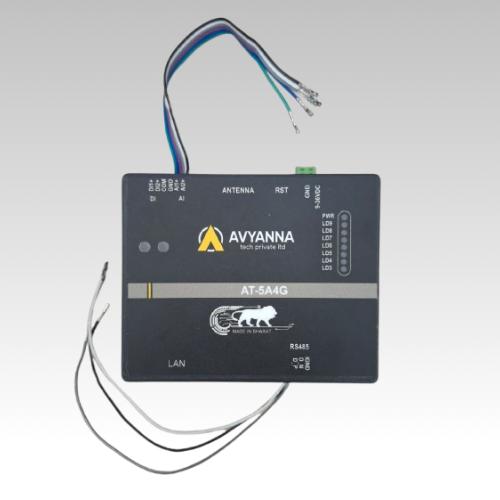

AT-5A4G - RS 485 to Wi-Fi Gateway
Low Stock, 1 left
Product Description
The Avyanna Tech AT-5A4G is an ESP32-based RS-485-to-Wi-Fi industrial communication gateway. It combines serial communication with Wi-Fi networking and additional interfaces for connected equipment and monitoring installations.
Key functions include eSP32 processor up to 240 MHz; rS-485-to-Wi-Fi communication; wi-Fi and Bluetooth connectivity. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Product Specifications
| General | |
|---|---|
| Brand | Avyanna Tech |
| Model | AT-5A4G |
| Product Type | RS 485 to Wi-Fi Gateway / Industrial Communication Controller |
| I/O & Signal Performance | |
| Digital Inputs | 2 (Logic High - Min. 6 V / Logic Low - Max. 5 V) |
| Analog Inputs | 2 (0-5 V input) |
| Connectivity & Configuration | |
| Processor | ESP32 |
| CPU Frequency | Up to 240 MHz |
| SRAM | 520 KB |
| RTC SRAM | 16 KB |
| SPI Flash | 4 MB |
| PSRAM | 2 MB |
| Ethernet | 10/100 Mbps LAN Port |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Wi-Fi Data Rate | Up to 150 Mbps |
| Wi-Fi Operating Frequency | 2412-2484 MHz |
| Wi-Fi Features | A-MPDU, A-MSDU, 0.4 µs Guard Interval |
| Bluetooth | Bluetooth v4.2 BR/EDR + BLE |
| Bluetooth Features | Class 1/2/3, AFH, CVSD & SBC |
| Antenna | On-board PCB antenna / External antenna via connector |
| Power & Protection | |
| Input Supply Voltage | 9-36 VDC |
| Physical & Environmental | |
| LED Indicators | 7 User-Defined LEDs |
| Operating Temperature | -20°C to +65°C |
| Compliance & Origin | |
| Country of Origin | India |
| Other Specifications | |
| CPU | Xtensa Dual-Core 32-bit LX6 |
| ROM | 448 KB |
| Crystal Oscillator | 40 MHz |
| RS-485 | Optional Isolation |
Product Features
- Uses an ESP32 Xtensa dual-core 32-bit LX6 processor with up to 240 MHz clock frequency, 4 MB SPI flash and 2 MB PSRAM.
- Supports IEEE 802.11 b/g/n Wi-Fi with data rates up to 150 Mbps in the 2412-2484 MHz band.
- Bluetooth v4.2 supports BR/EDR + BLE with Class 1/2/3, AFH, CVSD and SBC features.
- Provides a 10/100 Mbps Ethernet LAN port for wired industrial networking.
- Includes two digital inputs with Logic High minimum 6 V / Logic Low maximum 5 V and two 0-5 V analog inputs.
- RS-485 communication is provided with optional isolation and seven user-defined status LEDs.
- Supports on-board PCB antenna or an external antenna through a connector, with 9-36 VDC input and -20°C to +65°C operation.
Package Includes
- 1 × Avyanna Tech AT-5A4G RS-485 to Wi-Fi Gateway
Power supplies, cables and optional accessories are included only if specified in the order.
Frequently Asked Questions
What is the AT-5A4G - RS 485 to Wi-Fi Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Country of Origin: India
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- ESP32-based communication controller
- RS-485 serial-to-Wi-Fi networking
- Wi-Fi and Bluetooth connectivity
- Digital and analog input interfaces
- 9–36 VDC industrial power
SKU: 2ESE2075
₹ 14,500.00
