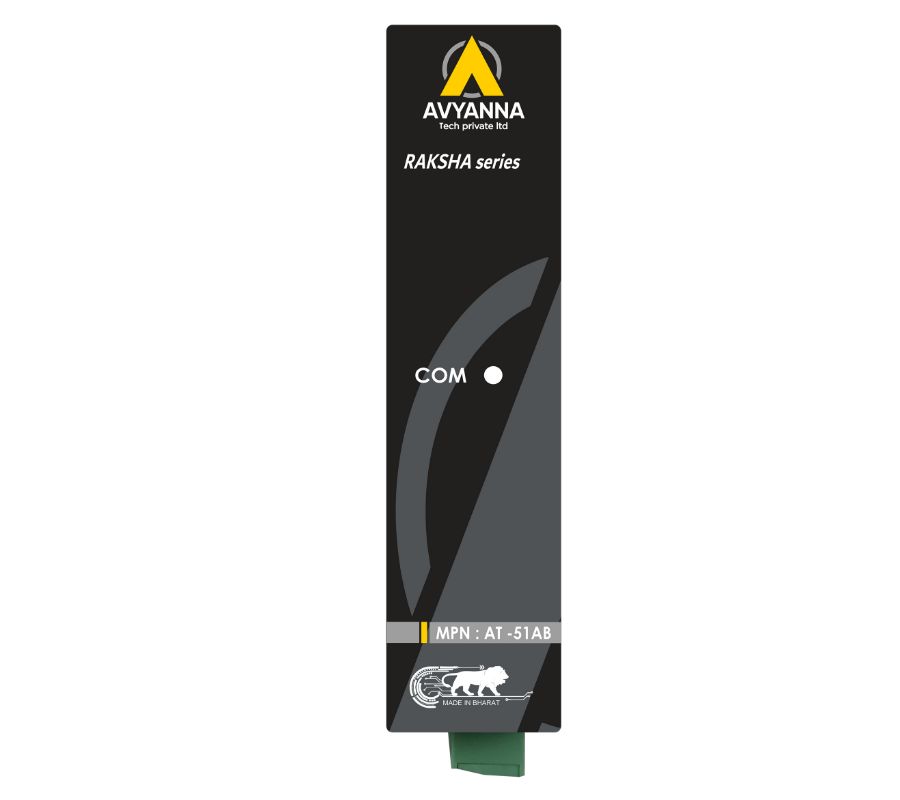

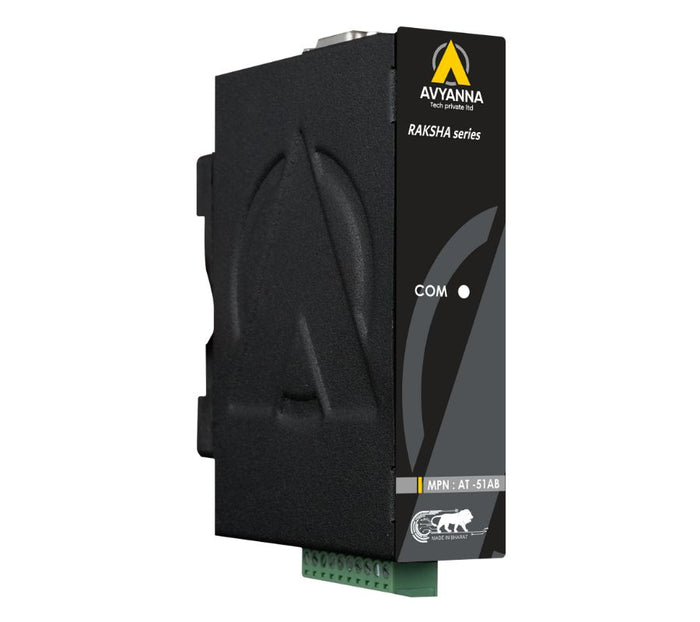

AT-5IABG - RS232 to RS485/422 Converter with Galvanic Isolation
Low Stock, 1 left
Product Description
The Avyanna Tech AT-5IABG is an RS-232 to RS-485/RS-422 signal converter with galvanic isolation. It converts RS-232 communications to two-wire RS-485 or four-wire RS-422 while electrically isolating the RS-485/RS-422 interface.
Key functions include rS-232 to RS-485 / RS-422 signal conversion; 1500 VDC galvanic isolation on RS-485/422; dB9-F serial input. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Product Specifications
| General | |
|---|---|
| Brand | Avyanna Tech |
| Model / MPN | AT-5IABG |
| Product Type | RS232 to RS485/422 Converter with Galvanic Isolation |
| Connectivity & Configuration | |
| Input Interface | RS-232 (DB9-F connector) |
| Output Interface | RS-485 (2-wire) or RS-422 (4-wire) |
| Speed Mode | 9600 bps |
| Serial Communication Standard | RS-232 input to RS-485/RS-422 output |
| RS-422/485 Connector | 1 × Plug-in terminal block (#14–22 AWG) |

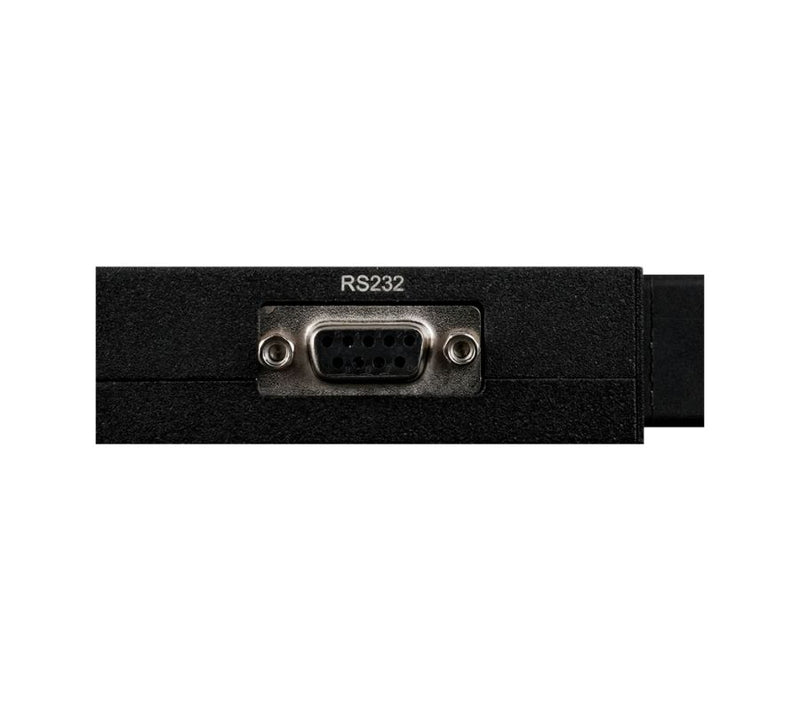

| RS-232 Connector | 1 × DB9-F |
| Power & Protection | |
| Operating Power Supply | 9–30 VDC wide range (24 V recommended) |
| Power Consumption | 20 mA @ 24 VDC |
| Isolation Voltage | 1500 VDC (RS-485/422) |
| RS-485/422 Lightning Protection | 90 V, 2 kA (8/20 µs) |
| RS-485/422 Anti-Surge TVS Protection | 600 W/line |
| RS-485/422 Protection Voltage | 6 V |
| RS-485/422 Overcurrent Protection | 200 mA resettable fuse |
| RS-232 Anti-Surge TVS Protection | 600 W/line |
| Physical & Environmental | |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Humidity | Up to 95% RH, non-condensing |
| Dimensions (L × W × H) | 115 × 75 × 35 mm |
| Compliance & Origin | |
| Country of Origin | India |
Product Features
- Converts RS-232 serial communication to RS-485 2-wire or RS-422 4-wire for industrial integration.
- 1500 VDC galvanic isolation on the RS-485/RS-422 side is provided by the unit.
- The supplied design incorporates 90 V, 2 kA lightning protection and 600 W/line TVS surge protection on RS-485/RS-422 terminals.
- The supplied design incorporates a 200 mA resettable fuse and 6 V protection voltage on the RS-485/RS-422 side.
- RS-232 terminal protection is rated at 600 W/line TVS.
- Available functions include 9–30 VDC operation with 24 VDC recommended and 20 mA consumption at 24 VDC.
- Compact 115 × 75 × 35 mm enclosure for industrial automation, metering and embedded-system installations.
Package Includes
- 1 × Avyanna AT-5IABG RS232 to RS485/422 Converter with Galvanic Isolation
- Other supplied accessories are not specified in the available OEM product information.
