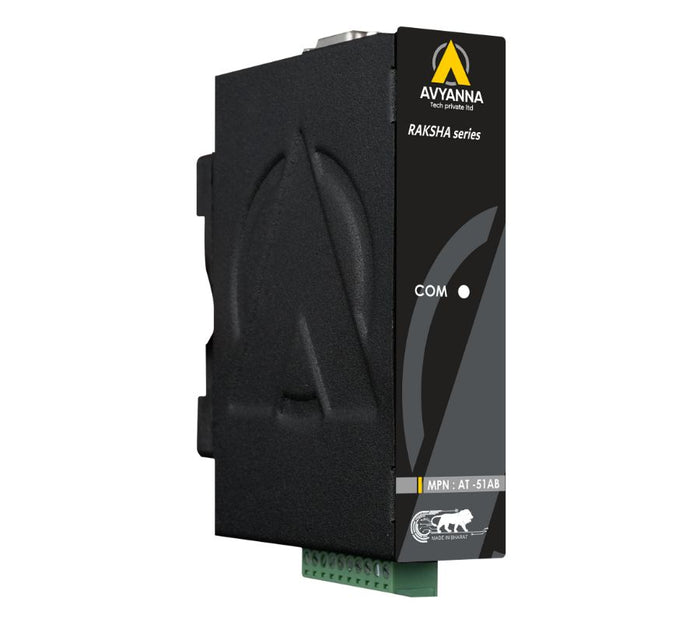

AT-5IABO - RS232 to RS485/422 Converter with Optical Isolation
Low Stock, 1 left
Product Description
The Avyanna Tech AT-5IABO is an RS-232 to RS-485/RS-422 converter with optical isolation. It provides serial signal conversion between RS-232 equipment and two-wire RS-485 or four-wire RS-422 devices, with isolated industrial interface circuitry.
Key functions include rS-232 to RS-485 / RS-422 serial conversion; optically isolated RS-485/422 interface; dB9-F RS-232 input connector. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Product Specifications
| General | |
|---|---|
| Brand | Avyanna Tech |
| Model | AT-5IABO |
| Product Type | RS232 to RS485/422 Converter with Optical Isolation |
| Connectivity & Configuration | |
| Input Interface | RS-232, DB9-F connector |
| Output Interface | RS-485 (2-wire) or RS-422 (4-wire) |
| Serial Communication | RS-232 input to RS-485 / RS-422 output |
| Speed Mode | 9600 bps listed by OEM |
| RS-422/485 Connector | 1 × plug-in terminal block, #14–22 AWG |
| RS-232 Connector | 1 × DB9-F |
| Power & Protection | |
| Isolation | 1500 VDC on RS-485/RS-422 |
| Operating Power Supply | 9–30 VDC wide range, 24 V recommended |
| Power Consumption | 20 mA @ 24 VDC |
| RS-485/422 Lightning Protection | 90 V, 2 kA (8/20 µs) |
| RS-485/422 Protection Voltage | 6 V |
| Resettable Fuse | 200 mA |
| Physical & Environmental | |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Humidity | Up to 95% RH, non-condensing |
| Dimensions | 115 × 75 × 35 mm |
| Compliance & Origin | |
| Certification | Not specified in text on OEM product page |
| Country of Origin | India |
| Other Specifications | |
| RS-485/422 TVS Protection | 600 W/line |
| RS-232 TVS Protection | 600 W/line |
Product Features
- Converts RS-232 serial communication to RS-485 2-wire or RS-422 4-wire for industrial equipment integration.
- Optical isolation rated at 1500 VDC can help protect connected devices from ground-potential differences and electrical disturbances.
- Included in RS-485/RS-422 protection: 90 V, 2 kA lightning protection, 600 W/line TVS surge suppression, 6 V protection voltage and a 200 mA resettable fuse.
- RS-232 input is provided through a DB9-F connector with 600 W/line anti-surge TVS protection.
- Supported by Wide 9–30 VDC power input: industrial control panels and distributed installations.
- OEM specification lists 9600 bps speed mode and describes a switch-selectable baud-rate design.
- Supported by Compact 115 × 75 × 35 mm enclosure: integration into automation, energy metering and embedded systems.
Package Includes
- 1 × AT-5IABO RS232 to RS485/422 Converter with Optical Isolation
- Other supplied accessories are not specified on the OEM product page.
