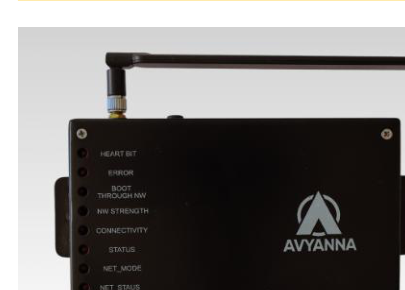

AT-7020 - Linux-Based Edge IoT Energy Monitoring Gateway with 2 x Isolated RS485
AT-7020 - Linux-Based Edge IoT Energy Monitoring Gateway with 2 x Isolated RS485
Low Stock, 1 left
Product Description
The Avyanna Tech AT-7020 is a Linux-based edge IoT energy-monitoring gateway with two isolated RS-485 interfaces. Its ARM Cortex-based processing platform and Modbus RTU interfaces support local collection of connected energy and utility device data.
Key functions include linux-based industrial edge IoT gateway; 2 isolated RS-485 interfaces; modbus RTU communication. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Product Specifications
| General | |
|---|---|
| Brand | Avyanna Tech |
| Model | AT-7020 |
| Product Type | Linux-Based Edge IoT Energy Monitoring Gateway |
| I/O & Signal Performance | |
| RS485 Termination | 120 ohm |
| Connectivity & Configuration | |
| SoC Family | 32-bit ARM Cortex-based processor |
| RAM | 256 MB DDR3L |
| eMMC NAND Flash | 512 MB |
| Serial Interface | 2 × isolated RS485 |
| Modbus Support | Modbus RTU |
| Default Baud Rate | 9600, custom configurable |
| Parity | None, Even, Odd |
| Data Bits | 8 / 9 bit including parity |
| Stop Bits | 1, 2 |
| Ethernet | 1 × 10/100 Mbit/s RJ45 |
| Ethernet Timing | IEEE 1588 compliant timer |
| GSM / LTE | LTE supported; EMEA / South Korea / Thailand / India region support |
| SIM Interface | 1 × (U)SIM |
| Power & Protection | |
| Operating Voltage | 6V to 27V |
| Power Consumption | 1.68W @24V, 1.44W @12V |
| Galvanic Isolation | 2.5 kV |
| Physical & Environmental | |
| Operating Temperature | -10°C to 65°C |
| Storage Temperature | -40°C to 100°C |
| Compliance & Origin | |
| Country of Origin | India |
| Other Specifications | |
| CPU | 1 × ARM Cortex-A7, 900 MHz |
| RTC | Built-in |
| RS485 Signal | 2-wire D+, D-, GND |
| RS485 Direction Control | ADDC (Automatic Data Direction Control) |
| USB | 1 × USB 2.0 Host, 1 × USB Host/Client (Micro AB) |
| USB Speed | 480 Mbit/s |
| SD Card | 1 × Micro SDHC; SD-XC capacity up to 2 TByte |
| LTE-FDD Data Rate | 150 Mbps downlink / 50 Mbps uplink |
| LTE-TDD Data Rate | 130 Mbps downlink / 30 Mbps uplink |
| GNSS | Supported |
| DFOTA | Supported |
Product Features
- Supported by Linux-based edge IoT architecture: local energy-data acquisition and industrial gateway functions.
- Dual isolated RS485 ports provide consistent Modbus RTU communication with industrial devices and energy meters.
- 2.5 kV galvanic isolation can help protect serial communication in electrically noisy industrial environments.
- Ethernet and GSM/LTE connectivity provide flexible local and remote communication for monitoring and control.
- Supported by On-board Micro SDHC storage: continuous local data logging, with SD-XC capacity up to 2 TByte.
- Provided by Built-in RTC: accurate event timestamping, while USB Host and USB OTG interfaces support service and expansion requirements.
- Provided by Integrated LTE support: up to 150 Mbps downlink / 50 Mbps uplink on LTE-FDD, with GNSS support for location-aware applications.
Package Includes
- 1 × AT-7020 Linux-Based Edge IoT Energy Monitoring Gateway
- Included accessories are not specified in the OEM datasheet; please confirm supplied accessories before ordering.
