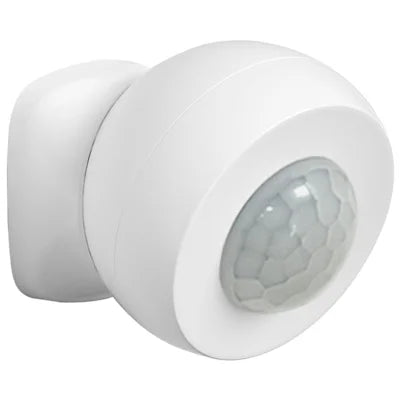

AVATTO ZMS16 Zigbee PIR Motion Sensor
Lead Time
Product Description
Compact Zigbee 3.0 PIR motion sensor for smart-home security and automation. It detects human movement up to 8 metres, sends instant alerts through the Tuya or Smart Life app, and uses a rotatable magnetic base for flexible wall or ceiling positioning. A compatible Zigbee gateway is required.
Product Specifications
| Brand | AVATTO |
|---|---|
| Model | ZMS16 |
| Sensor type | Passive Infrared (PIR) motion sensor |
| Wireless protocol | Zigbee 3.0 |
| Operating frequency | 2.4GHz |
| Power supply | 1 × CR123A 3V battery |
| Operating voltage | DC 3V |
| Average current consumption | ≤15µA |
| Detection distance | Up to 8m |
| Detection angle | 60° |
| Recommended installation height | Approximately 2.2m |
| Operating temperature | -10°C to 55°C |
| Low-battery alarm | Supported |
| App compatibility | Tuya Smart / Smart Life |
| Dimensions | Ø50 × 55mm |
| Colour | White |
| Gateway requirement | Compatible Zigbee gateway required |
Product Features
- Detects human movement through passive infrared sensing for security and automation.
- Connects to a compatible Zigbee gateway over the 2.4GHz band.
- Supports automated scenes such as switching lights or cameras when motion is detected.
- Magnetic holder allows the sensing direction to be adjusted after installation.
- Battery-powered design enables flexible wall or ceiling placement without wiring.
Package Includes
- 1 × AVATTO ZMS16 PIR Motion Sensor
- 1 × Magnetic mounting base
- 1 × Adhesive mounting pad
- 1 × User guide
Frequently Asked Questions
What is the AVATTO ZMS16 Zigbee PIR Motion Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
