Avyanna AT-41T 1-Port RS-232/422/485 Serial Device Server
Lead Time
Product Description
Avyanna AT-41T 1-Port RS-232/422/485 Serial Device Server is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. Protocols support is listed as ICMP, ARP, DHCP, UDP, TCP/IP, IPv4, HTTP, Telnet. It accepts 9-36V DC via terminal block at the specified input. The Power Consumption specification is 1.44W. When choosing this industrial networking device, start with the documented configuration.
Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. The dimensions figure is 28.5 × 78 × 126.8mm (W × H × D). The Mounting specification is DIN rail. The Driver Support specification is Windows 10/11. The Device Type specification is 1-port serial device server. The Ethernet specification is 1 × 10/100Base-T.
Applications
Product Specifications
| Brand | Avyanna Tech |
|---|---|
| Model | AT-41T |
| Device Type | 1-port serial device server |
| Ethernet | 1 × 10/100Base-T |
| Ethernet Protection | Built-in 1.5kV DC magnetic isolation |
| Serial Port | 1 × software-selectable RS-232/422/485 |
| Serial Connector | DB9 and terminal block |
| Data Bits | 8 or 9 including parity |
| Stop Bits | 1 or 2 |
| Parity | None, odd or even |
| Port Isolation | Galvanic 2.5kV / optical |
| Baud Rate | All standard rates plus customizable option |
| Termination | Built-in 120-ohm terminating resistor |
| RS485 Bias | Built-in 10k-ohm pull-high/pull-low resistors |
| Protection | Reverse-voltage and 8kV ESD protection |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, GND; RS-485: A/D+, B/P/D-, GND |
| Driver Support | Windows 10/11 |
| Configuration | Windows utility and web-based interface |
| Operating Modes | VCOM, TCP Server/Client, UDP Server/Client, Telnet |
| Protocols | ICMP, ARP, DHCP, UDP, TCP/IP, IPv4, HTTP, Telnet |
| TCP Connections | Up to 10 per serial port in TCP Server mode |
| LED Indicators | Power, factory reset, LAN speed/link/activity, serial Tx/Rx |
| Power Input | 9-36V DC via terminal block |
| Power Consumption | 1.44W |

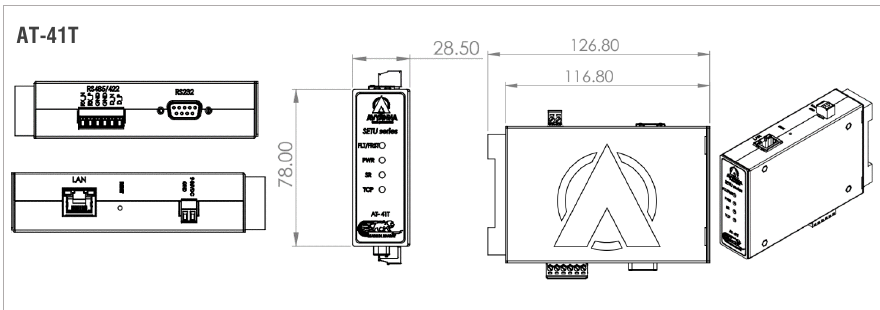

| Dimensions | 28.5 × 78 × 126.8mm (W × H × D) |
| Weight | 0.265kg |
| Enclosure | Metal, IP54 |
| Mounting | DIN rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 85°C |
| Operating Humidity | 20-95% RH |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- Legacy-device connectivity:Connects one RS-232, RS-422 or RS-485 device transparently to an Ethernet network.
- Flexible serial interface:Software-selectable RS-232/422/485-2-wire/485-4-wire communication with DB9 and terminal-block connections.
- Multi-client access:Available functions include up to 10 network connections per serial port in TCP Server mode.
- Simple configuration:Set through a Windows utility or the built-in web interface.
- Industrial protection:Ethernet magnetic isolation, serial-port isolation, reverse-voltage protection and 8kV ESD protection improve reliability.
- Panel installation:Compact metal IP54 enclosure with DIN-rail mounting and wide-range 9-36V DC input.
Package Includes
- 1 × Avyanna AT-41T serial device server
- Removable terminal connectors
- DIN-rail mounting provision
- AT-41T datasheet access
Frequently Asked Questions
What is the Avyanna AT-41T 1-Port RS-232/422/485 Serial Device Server used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
