Avyanna AT-42T 2-Port RS-232/422/485 Serial Device Server
Low Stock, 1 left
Product Description
Industrial serial device server enabling two serial devices to communicate seamlessly over Ethernet infrastructure. The Avyanna AT-42T is a dual-port device server with two software-selectable RS-232/422/485 serial ports.
Designed for industrial automation and remote equipment access, it provides transparent serial-to-Ethernet communication through a 10/100Base-T network interface, web-based configuration, multiple operating modes and robust electrical protection.
Applications
Product Specifications
| Brand | Avyanna Tech |
|---|---|
| Model | AT-42T |
| Device Type | 2-port serial device server |
| Ethernet | 1 × 10/100Base-T |
| Ethernet Protection | Built-in 1.5kV DC magnetic isolation |
| Serial Ports | 2 × software-selectable RS-232/422/485 |
| Serial Connectors | DB9 and terminal block |
| Data Bits | 8 or 9 including parity |
| Stop Bits | 1 or 2 |
| Parity | None, odd or even |
| Port Isolation | Optical |
| Baud Rate | All standard rates plus customizable option |
| Termination | Built-in 120-ohm terminating resistor |
| RS485 Bias | Built-in 10k-ohm pull-high/pull-low resistors |
| Protection | Reverse-voltage and 8kV ESD protection |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, GND; RS-485: A/D+, B/P/D-, GND |
| Driver Support | Windows 10/11 |
| Configuration | Windows utility and web-based interface |
| Operating Modes | VCOM, TCP Server/Client, UDP Server/Client, Telnet |
| Protocols | ICMP, ARP, DHCP, UDP, TCP/IP, IPv4, HTTP, Telnet |
| TCP Connections | Up to 10 per serial port in TCP Server mode |
| LED Indicators | Power, factory reset, LAN speed/link/activity, serial Tx/Rx |
| Power Input | 9-36V DC via terminal block |
| Power Consumption | 3.84W |

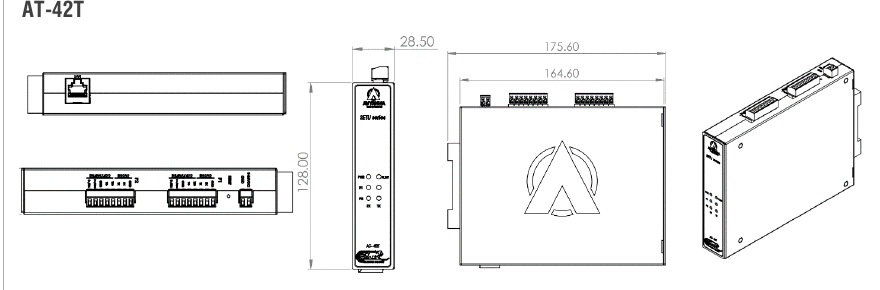

| Dimensions | 28.5 × 128 × 175.6mm (W × H × D) |
| Weight | 0.520kg |
| Enclosure | Metal, IP54 |
| Mounting | DIN rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 85°C |
| Operating Humidity | 20-95% RH |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- Dual-device connectivity: Connects two RS-232, RS-422 or RS-485 serial devices transparently to an Ethernet network.
- Flexible serial interfaces: Each port supports software-selectable RS-232/422/485-2-wire/485-4-wire communication.
- Multi-client access: Supports up to 10 TCP connections per serial port in TCP Server mode.
- Simple configuration: Configure through a Windows utility or web-based interface.
- Industrial protection: Ethernet magnetic isolation, optical serial isolation, reverse-voltage protection and 8kV ESD protection improve reliability.
- Panel installation: Metal IP54 enclosure with DIN-rail mounting and wide-range 9-36V DC input.
Package Includes
- 1 × Avyanna AT-42T dual-port serial device server
- Removable terminal connectors
- DIN-rail mounting provision
- AT-42T datasheet access
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Two software-selectable RS-232/422/485 serial ports
- 10/100Base-T Ethernet with 1.5kV DC magnetic isolation
- Up to 10 simultaneous TCP connections per serial port
- VCOM, TCP Server/Client, UDP Server/Client and Telnet modes
- Built-in 8kV ESD protection for all serial signals
- Optically isolated serial ports
- 9-36V DC input, DIN-rail mounting and IP54 metal enclosure
