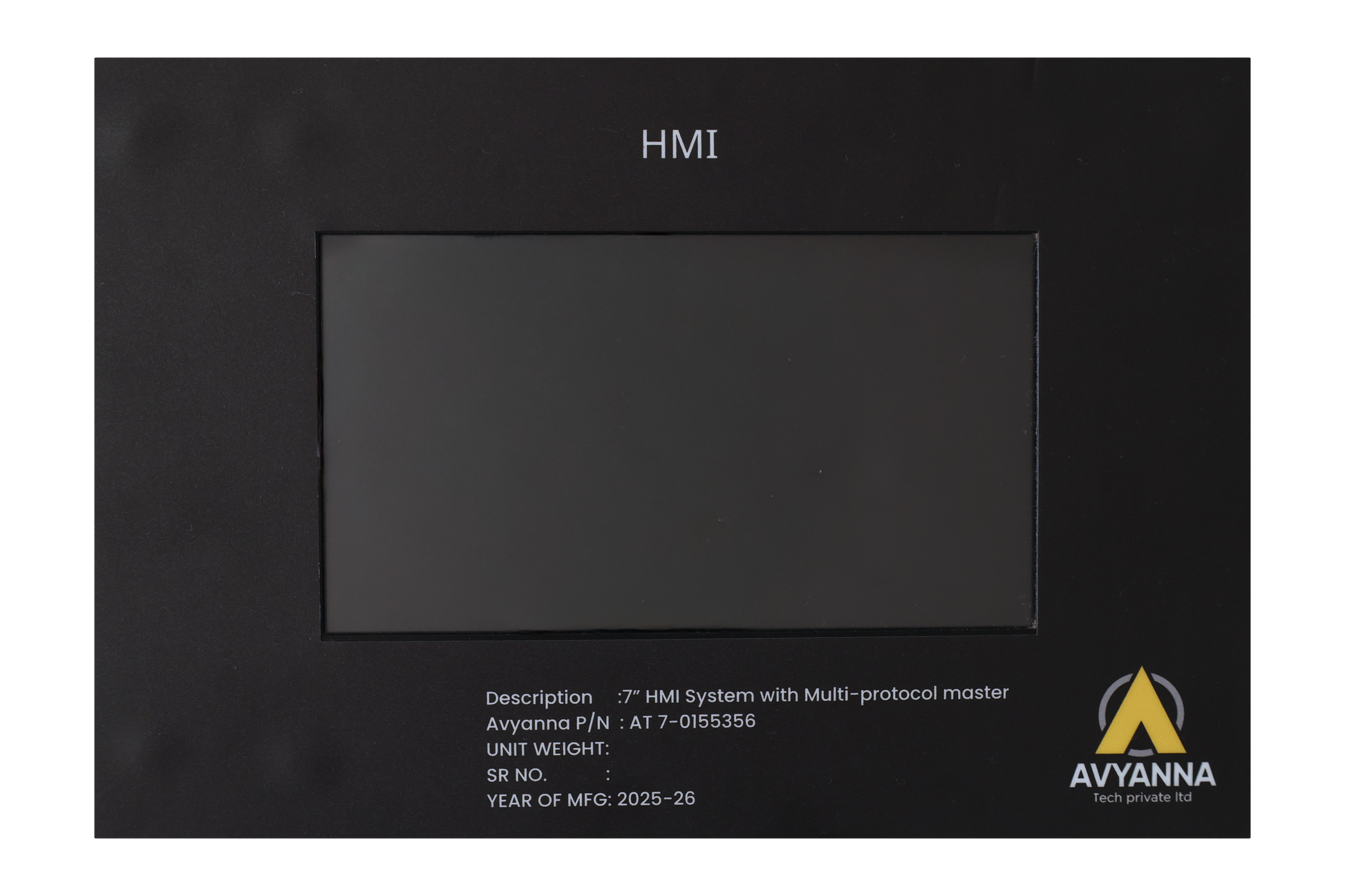

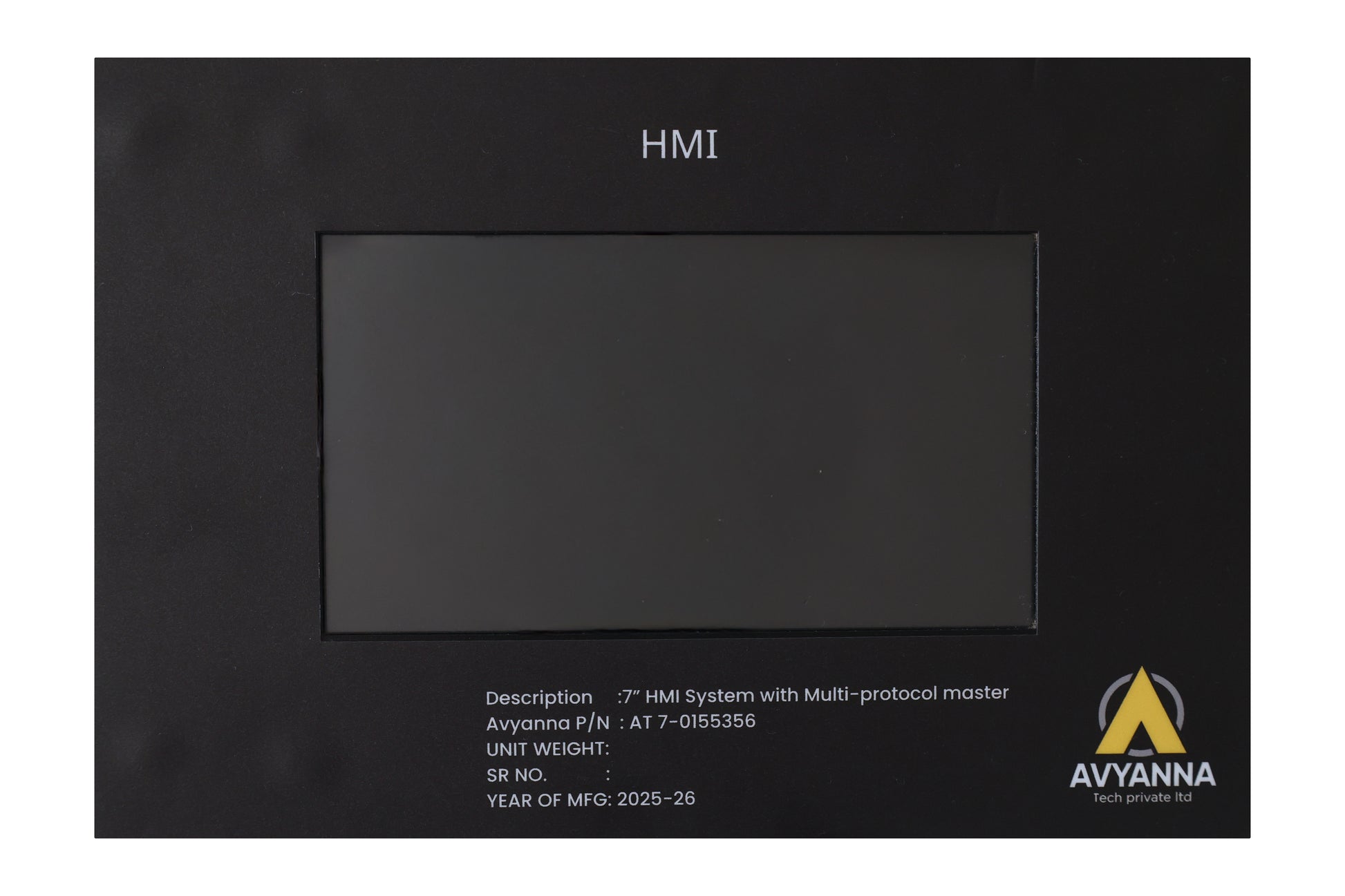

Avyanna AT-7030 7-Inch HMI System with Multi-Protocol Master
Low Stock, 1 left
Product Description
The Avyanna AT-7030 is a high-performance ARM-based industrial HMI featuring a 7-inch capacitive touchscreen and multi-protocol connectivity for real-time control, monitoring and local data storage.

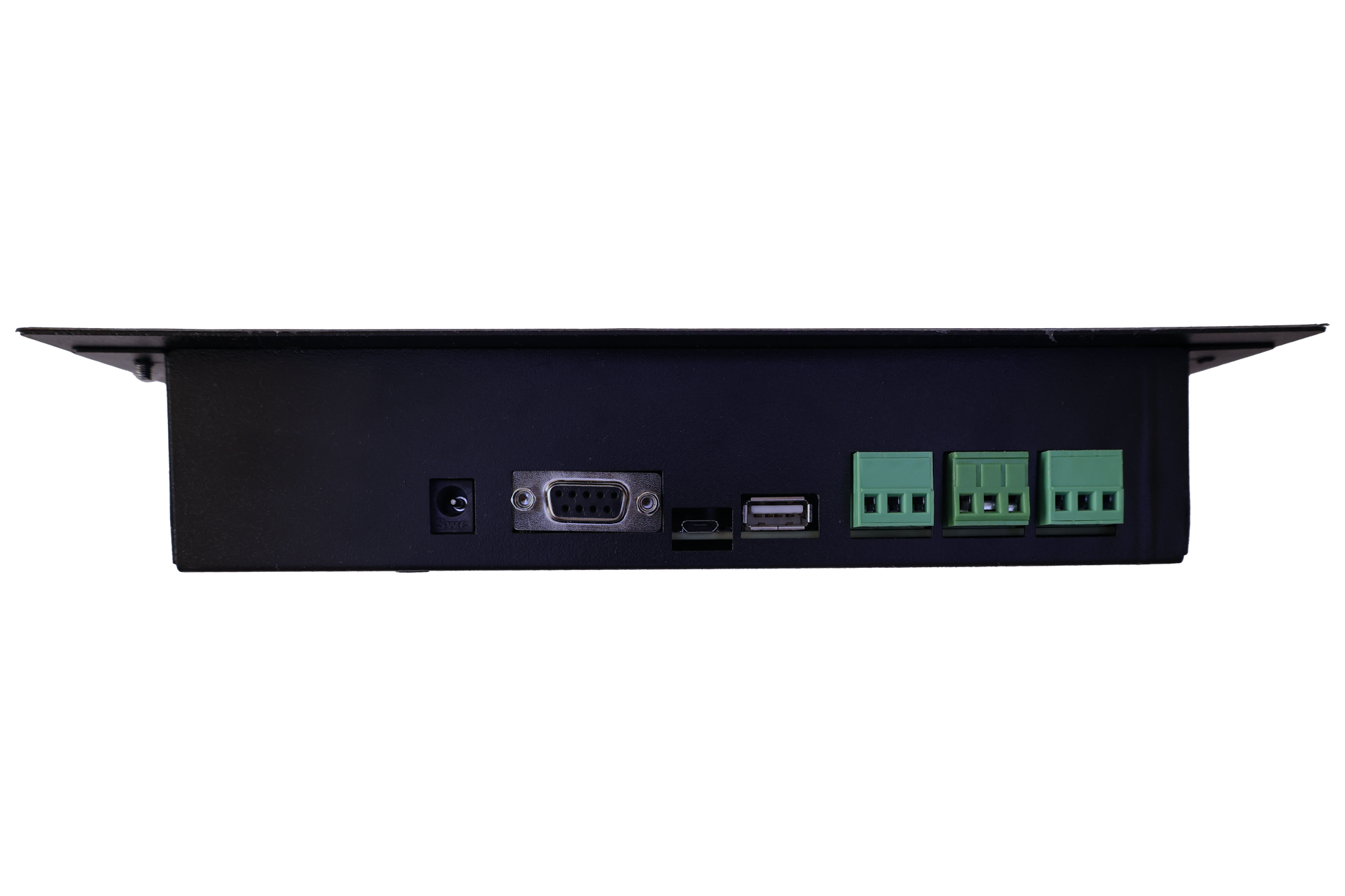

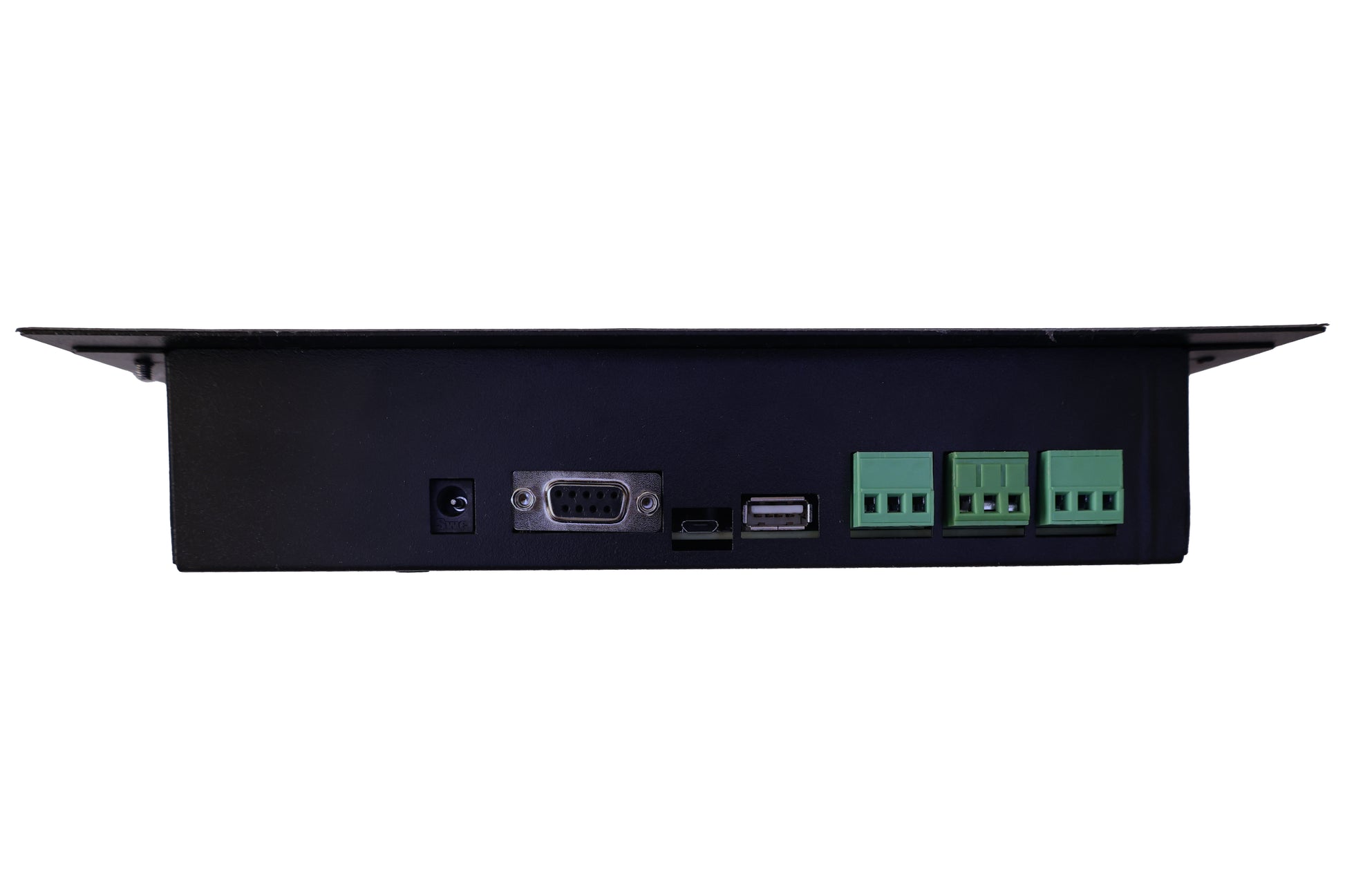

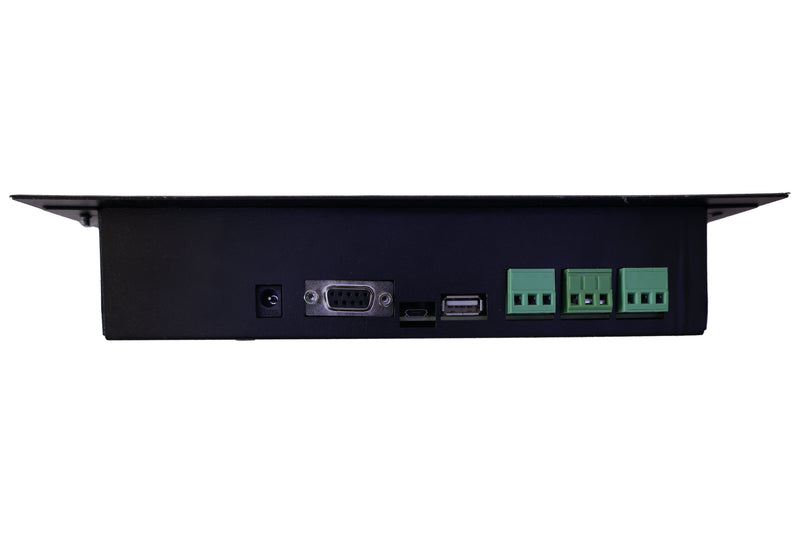

Its Cortex-A7 and Cortex-M4 architecture provides three RS485 ports, RS232, Ethernet, USB host and OTG, microSD expansion, an RTC and industrial-temperature operation for automation, energy and edge IoT applications.
Applications
Product Specifications
| Brand | Avyanna Tech |
|---|---|
| Model | AT-7030 |
| Product | 7-inch HMI System with Multi-Protocol Master |
| Input voltage | 6V to 27V DC |
| Processor | ARM Cortex-A7 at 1GHz plus Cortex-M4 at 200MHz |
| Memory | 1GB RAM; 4GB eMMC |
| RTC | Built-in |
| Serial interfaces | 1 × RS232; 3 × RS485 |
| Ethernet | 1 × 10/100Mbps |
| USB | 1 × USB host; 1 × USB OTG |
| Storage expansion | 1 × microSDHC slot |
| Display | 7-inch capacitive-touch transmissive anti-glare TFT |
| Resolution | 800 × 480 RGB pixels |
| Colours | 16.7 million |
| Backlight | LED; 500cd/m² |
| Display interface | RGB 18-bit + TCON |
| Touch interface | I²C |
| CPU operating temperature | -20°C to +85°C |
| CPU storage temperature | -40°C to +100°C |
| HMI operating temperature | -20°C to +70°C |
| HMI storage temperature | -30°C to +80°C |
| Country of origin | India |
Product Features
- Combines an industrial HMI, real-time controller and multi-protocol master in one compact system.
- Responsive capacitive touch and 500cd/m² LED backlight support clear operator interaction.
- Three RS485 and one RS232 port enable connection to industrial instruments and field equipment.
- 10/100Mbps Ethernet, USB host, USB OTG and microSD support integration and local data storage.
- Built-in real-time clock supports accurate event logging and time-based operations.
Package Includes
- 1 × Avyanna AT-7030 7-inch HMI system
- Terminal connectors and standard accessories
- Mounting accessories, as supplied
- AT-7030 datasheet access
