100-02049 - LoRaWAN Solar Bluetooth Gateway
Low Stock, 1 left
Product Description

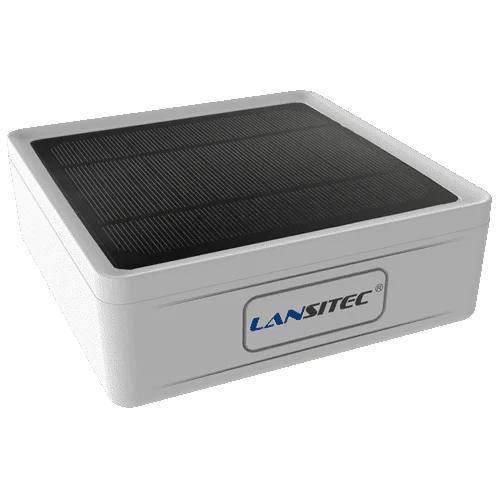

LoRaWAN Solar Bluetooth Gateway
The 100-02049 LoRaWAN Solar Bluetooth Gateway is designed for reliable outdoor asset tracking, personnel tracking and Bluetooth sensor data collection. Combining LoRaWAN and Bluetooth 5.0, the gateway receives data from nearby BLE beacons and sensors, restructures the payload and transmits the information over long distances through a LoRaWAN network.
Powered by a 3W solar panel and a built-in 5300mAh rechargeable Li-ion battery, the gateway is suitable for long-term, low-maintenance deployment in outdoor and industrial environments. Its IP66 enclosure, configurable Bluetooth data filtering, adjustable reporting intervals and AES128 encryption support dependable operation for remote monitoring applications.
The gateway supports LoRaWAN 1.0.2B and multiple regional frequency plans including US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865 and CN470. With approximately 3m positioning precision, geo-fencing capability, FOTA over Bluetooth and support for large numbers of BLE devices, the 100-02049 provides a flexible platform for vehicle tracking, asset and personnel tracking, hospital equipment monitoring and remote Bluetooth sensor data communication.
Applications
Product Specifications
| Mechanics | |
|---|---|
| Dimension | 160*160*55mm |
| Operating Temperature | -20°C ~ +65°C |
| Charging Temperature | -20°C ~ +60°C |
| Storage Temperature | -45°C ~ +85°C |
| Operating Humidity | 0% ~ 95% (non-condensing) |
| Weight | 460g |
| Ingress Protection | IP66 |
| Power | |
| Battery | Li-ion rechargeable battery 5300mAh |
| Battery Life | One month in continuous rainy days @ Bluetooth continuous receiving and 60s LoRaWAN report interval. Please refer to our battery life calculator for detailed battery life information |
| Solar Panel | 3W |
| Connectivity | |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Maximum RF Power | 22dBm |
| High TX Power Option | Max. 30dBm and -150dBm receiving sensitivity |
| LoRa Sensitivity | -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
| Access Quantity | >500 in one LoRaWAN gateway |
| Data Rate (bps) | 300~30K |
| Encryption | AES128 |
| Functions | |
| Positioning Precision | 3m |
| Bluetooth Data Filter and Report | Filter any data bytes in a Bluetooth payload and report any via LoRaWAN |
| Switch | Mechanical |
| Adjustable Position Report Interval | 5s x n (1 to 65536) |
| Heartbeat Report Interval | 30s x n (1 to 255) |
| FOTA over Bluetooth | Support |
| Water Level Detection | Optional |
| Max. Beacons Supported | 105 *, maximum of 15 beacon messages at one single LoRaWAN package @SF9 * Please reach out to us if more are needed. |
| Certification | |
| Certification | CE, FCC, RCM |
Product Features
- Receives and restructures data from nearby BLE beacons and sensors, then forwards it through a LoRaWAN network for long-range monitoring.
- Works with Bluetooth 5.0 devices and common beacon formats including iBeacon and Eddystone.
- Supports collection and forwarding of BLE sensor data such as temperature, humidity, liquid level and other sensor payloads.
- Solar-assisted 5300mAh rechargeable battery design reduces maintenance requirements for outdoor deployments.
- Provides approximately 3m positioning precision and geo-fencing capability for asset, vehicle and personnel monitoring.
- Adjustable position and heartbeat reporting intervals help balance update frequency and power consumption.
- Supports FOTA over Bluetooth, AES128 encryption and configurable Bluetooth payload filtering.
- Optional water-level detection is available for projects requiring additional monitoring capability.
Docs & Resources
Package Includes
- 1 × Cat-1 Solar Bluetooth Gateway
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- LoRaWAN 1.0.2B and Bluetooth 5.0 connectivity
- 3W solar panel with built-in 5300mAh rechargeable Li-ion battery
- IP66 enclosure for long-term outdoor deployment
- Approx. 3m positioning precision with geo-fencing support
- Supports US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865 and CN470 frequency plans
- Configurable Bluetooth payload filtering and LoRaWAN reporting
- AES128 encryption and FOTA over Bluetooth
- Supports up to 105 BLE beacons; up to 15 beacon messages per LoRaWAN packet at SF9
