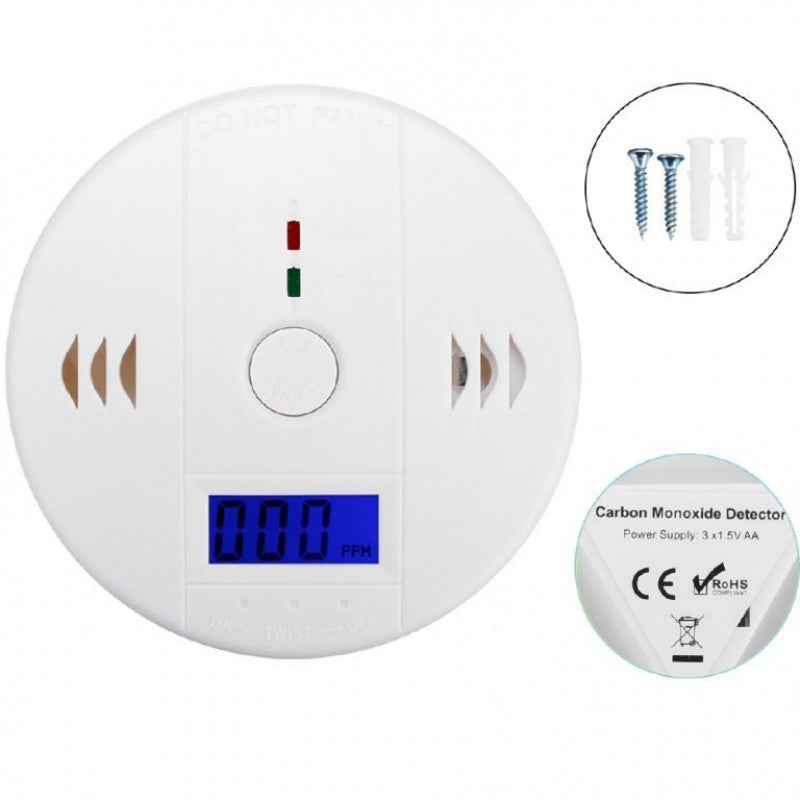

CO Gas Sensor Alarm Detector with LCD Display
Lead Time
Product Description
CO Gas Sensor Alarm Detector with LCD Display is designed for the warning or detection functions stated for this model. It suits users matching a signalling device to the trigger, supply and installation described in the specifications. The Low-Battery Threshold specification is <3.3 V. The Power specification is 3 × AA batteries (not included). The Power Consumption specification is 0.3 mW. When choosing this carbon monoxide (co) alarm detector, start with the documented configuration. Assess the warning output and activation requirements together. Placement and power need to follow the stated limits, and any approval or application claim should be taken only from the documented information for this exact model. The Alarm Frequency specification is 3 ± 0.5 kHz. The Display specification is 4-digit LCD. The Audibility specification is 85 dB at 1 m. The Standby Current specification is <50 μA. The Alarm Current specification is <50 mA.
Applications
Product Specifications
| Product Type | Carbon Monoxide (CO) Alarm Detector |
|---|---|
| Display | 4-digit LCD |
| Audibility | 85 dB at 1 m |
| Alarm Frequency | 3 ± 0.5 kHz |
| Standby Current | <50 μA |
| Alarm Current | <50 mA |
| Low-Battery Threshold | <3.3 V |
| Power | 3 × AA batteries (not included) |
| Standby Indicator | Green LED flashes every 30 seconds |
| Alarm Timing | 50 ppm: 60–90 min; 100 ppm: 10–40 min; 300 ppm: within 3 min |
| Power Consumption | 0.3 mW |
| Approx. Size | 10 × 4 cm |
Product Features
- Provided by Continuously monitors indoor carbon monoxide and: audible and visual warning when alarm conditions are detected.
- Used by Alarm mode: a red LED and audible chirps to provide a clear local alert.
- Alarm sensitivity timing: 50 ppm within 60–90 minutes, 100 ppm within 10–40 minutes and 300 ppm within 3 minutes.
- Low-battery indication activates below 3.3 V with a periodic warning and LCD “Lb” indication.
- Supported by Test/Reset control: periodic functional checks and alarm reset.
Package Includes
- 1 × CO Gas Sensor Alarm Detector with LCD Display
- 1 × Accessories set
Frequently Asked Questions
What is the CO Gas Sensor Alarm Detector with LCD Display used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
