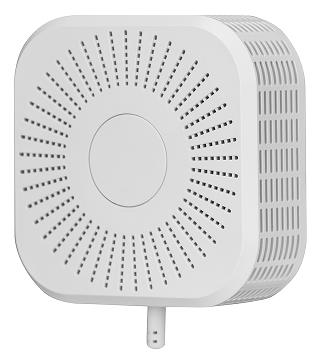

CU-606 LoRaWAN 6-in-1 Air Quality Monitor
In Stock
Product Description
The CU-606 is an indoor 6-in-1 environmental monitoring sensor based on the standard LoRaWAN protocol. It integrates sensors for PM2.5, carbon dioxide (CO₂), total volatile organic compounds (TVOC), formaldehyde (HCHO), temperature, and relative humidity in one compact device.
The monitor periodically transmits environmental data to a compatible control platform, helping facility and building-management teams track real-time indoor air-quality changes. It is suitable for offices, schools, commercial buildings, healthcare spaces, laboratories, warehouses, and other indoor environments requiring centralized air-quality monitoring.
Applications
Product Specifications
| Brand | Winext |
|---|---|
| Model | CU-606 |
| Product type | LoRaWAN 6-in-1 indoor air-quality monitor |
| Measured parameters | PM2.5, CO₂, TVOC, HCHO, temperature and humidity |
| Wireless protocol | LoRaWAN |
| Frequency bands | CN470 / EU868 / US915 / AS923 / AU915 MHz |
| Maximum transmit power | 19dBm |
| Receive sensitivity at SF7 | -125dBm (BW 125kHz) |
| Receive sensitivity at SF10 | -133dBm (BW 125kHz) |
| Receive sensitivity at SF12 | -141dBm (BW 125kHz) |
| Transmission rate | 292bps to 5.4Kbps |
| LoRa antenna | Built-in omnidirectional antenna |
| PM2.5 measurement range | 0 to 1000µg/m³ |
| CO₂ measurement range | 400 to 5000ppm |
| TVOC measurement range | 0 to 50mg/m³ |
| HCHO measurement range | 0 to 1.5mg/m³ |
| Temperature measurement range | -10°C to 50°C |
| Humidity measurement range | 0% to 99%RH |
| Power supply | DC 12V through Type-C adaptor |
| Operating temperature | -10°C to +55°C |
| Operating humidity | 0% to 95%RH |
| Dimensions | 99.94 × 99.94 × 29.96mm |
Product Features
- Combines six environmental measurements in one compact indoor monitoring device.
- Measures fine particulate matter from 0 to 1000µg/m³ and CO₂ from 400 to 5000ppm.
- Tracks TVOC from 0 to 50mg/m³ and formaldehyde (HCHO) from 0 to 1.5mg/m³.
- Measures temperature from -10°C to 50°C and relative humidity from 0% to 99%RH.
- Periodically sends readings over LoRaWAN so management personnel can monitor real-time environmental changes through a compatible platform.
- Provides LoRa receive sensitivity down to -141dBm at SF12 for reliable long-range indoor connectivity.
Package Includes
- 1 × CU-606 LoRaWAN 6-in-1 Air Quality Monitor
- 1 × DC 12V Type-C power adaptor
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Six-in-one indoor air-quality monitoring
- Measures PM2.5, CO₂, TVOC, HCHO, temperature and humidity
- Standard LoRaWAN wireless communication
- Supports CN470, EU868, US915, AS923 and AU915 frequency bands
- Built-in omnidirectional LoRa antenna
- Periodic environmental-data transmission to a control platform
- Compact 99.94 × 99.94 × 29.96mm enclosure
- DC 12V power through a Type-C adaptor
