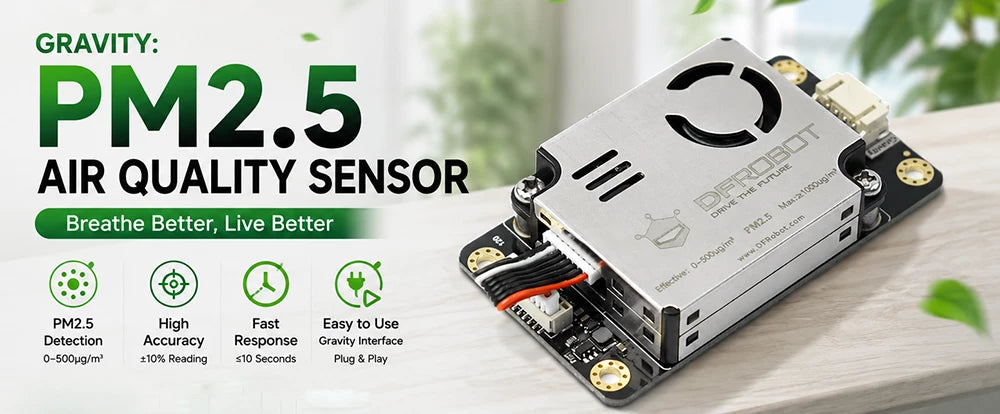

DFRobot Gravity PM2.5 Air Quality Sensor
Low Stock, 1 left
Product Description

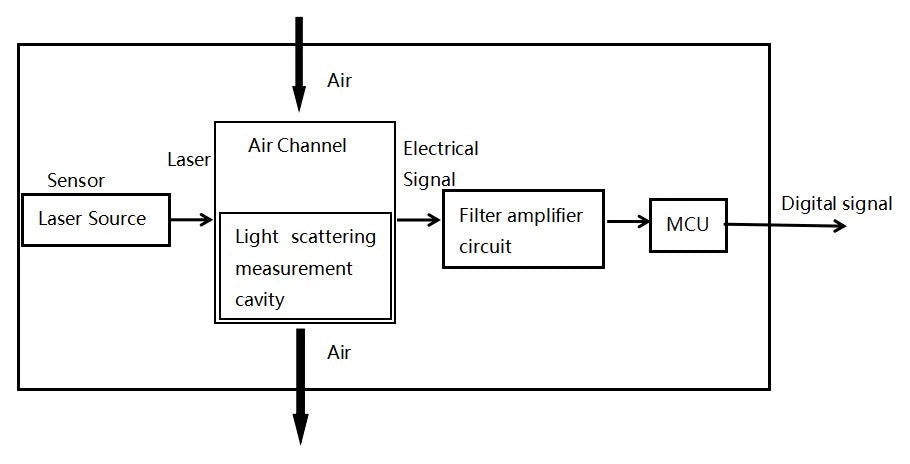

Laser-scattering particulate sensor that measures PM1.0, PM2.5 and PM10 concentrations in real time. Its Gravity interface and I2C output simplify integration with Arduino, microcontrollers and environmental-monitoring devices.
Product Specifications
| Model | SEN0460 |
|---|---|
| Manufacturer | DFRobot |
| Working voltage | 3.3V to 5V |
| Maximum working current | 100mA |
| Standby current | ≤2mA |
| Communication | I2C via Gravity interface |
| Particle size range | 0.3–1.0µm, 1.0–2.5µm and 2.5–10µm |
| Effective PM2.5 mass range | 0–500µg/m³ |
| Maximum PM2.5 mass range | ≥1000µg/m³ |
| Resolution | 1µg/m³ |
| Single response time | <1 second |
| Operating temperature | -10°C to 60°C |
| Operating humidity | 0–95% RH, non-condensing |
| Dimensions | 72 × 40 × 14mm |
| MTBF | ≥5 years |
Product Features
- Continuously counts suspended particles and converts the distribution into mass concentration.
- Recognises particles from 0.3µm to 10µm.
- Responds in under one second with comprehensive output within ten seconds.
- Six-sided shielding improves resistance to environmental interference.
- Sample code supports rapid integration with popular microcontrollers.
Package Includes
- 1 × DFRobot Gravity PM2.5 Air Quality Sensor
- 1 × Gravity 4-pin I2C/UART sensor cable
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Measures PM1.0, PM2.5 and PM10 particles
- Accurate laser-scattering measurement
- Real-time continuous acquisition
- Gravity interface with I2C output
- Ultra-thin 14mm sensor design
SKU: 2ESE20072
