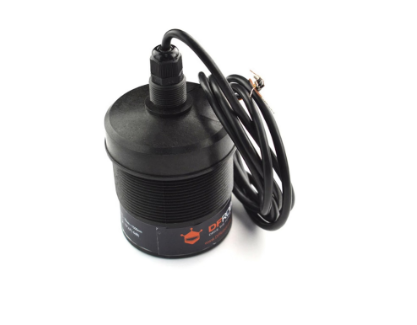

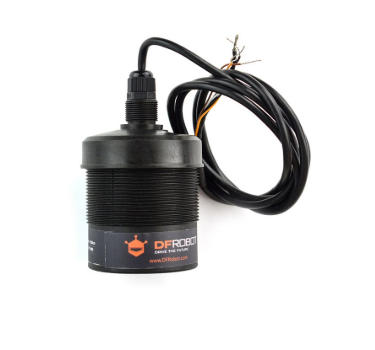

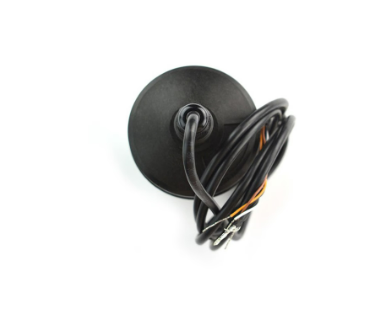

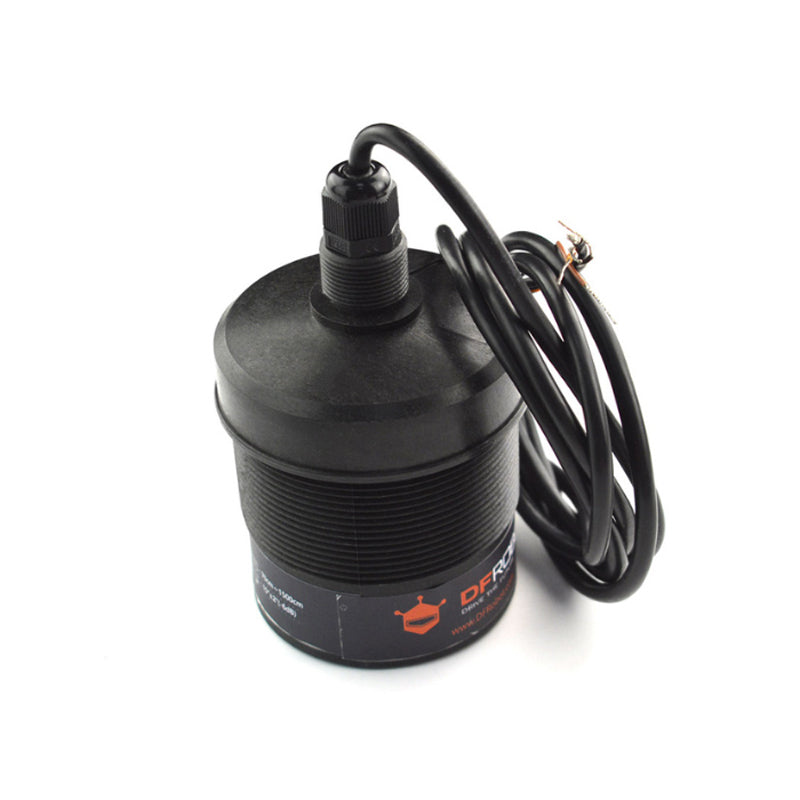

DFRobot URM12 - Ultra Long Range Ultrasonic Distance Sensor (70~1500cm, RS485)
DFRobot URM12 - Ultra Long Range Ultrasonic Distance Sensor (70~1500cm, RS485)
Low Stock, 1 left
Product Description
The DFRobot URM12 Ultra Long Range Ultrasonic Distance Sensor delivers distance sensing from 70 cm up to 15 metres. With a 15° detection beam, 3 Hz refresh rate and Modbus-RTU RS485 interface, it is suited to industrial applications such as tank level monitoring, water-level measurement and robot obstacle detection.
Key characteristics include Resolution: 1 cm; Communication Protocol / Interface: Modbus-RTU / RS485; Measurement Range: 70–1500 cm; Accuracy: ±1%. Check the Modbus RTU settings, supply voltage, detection geometry and measurement limits before commissioning.
Product Specifications
| Display & Computing | |
|---|---|
| Resolution | 1 cm |
| Wireless & RF | |
| Communication Protocol / Interface | Modbus-RTU / RS485 |
| Measurement & Sensor | |
| Measurement Range | 70–1500 cm |
| Accuracy | ±1% |
| Power & Electrical | |
| Power Supply Voltage (V) | 9–24V DC |
| Rated Power (W) | 4.8 |
| Physical & Environmental | |
| Body Material | ABS; corrosion and pollution resistant |
| Operating Temperature (°C) | -10 to +70°C |
| Packaging & Shipping | |
| Shipping Weight | 0.045 kg |
| Shipping Dimensions | 20 × 15 × 15 cm |
| Other Specifications | |
| Model No. / Name | URM12 |
Product Features
- Ultra-long detection range: 70 cm to 1500 cm
- High precision: 1 cm resolution and ±1% accuracy
- Narrow 15° detection beam for focused sensing
- Update rate up to 3 Hz
- RS485 interface with Modbus-RTU support for industrial communication
- Operating voltage: 9–24V DC; rated power: 4.8W
- IP65 protection for dusty or splashing environments
- Model No. / Name: URM12.
- Measurement Range: 70–1500 cm.
Package Includes
- 1 × DFRobot URM12 Ultra Long Range Ultrasonic Distance Sensor (70–1500 cm, RS485)
Frequently Asked Questions
What is the DFRobot URM12 - Ultra Long Range Ultrasonic Distance Sensor (70~1500cm, RS485) used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
