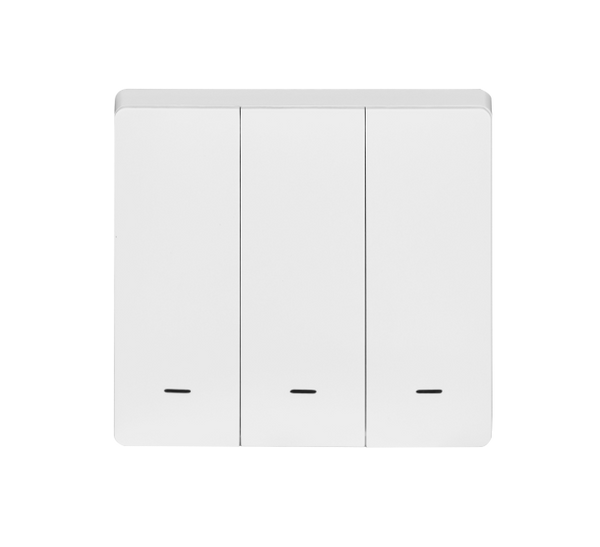

DS-103 3-Gang Smart Switch, LoRaWAN Smart Switch
DS-103 3-Gang Smart Switch, LoRaWAN Smart Switch
Lead Time
Product Description
DS-103 3-Gang Smart Switch, LoRaWAN Smart Switch is designed for the applications supported by the specifications below. It suits users selecting this exact part by its documented function, connection and physical format. It accepts AC100–240V at the specified input. The Operating Power Consumption specification is <1.3W. The Standby Power Consumption specification is <0.7W. When choosing this 3-gang lorawan smart switch, start with the documented configuration.
Match the part’s stated requirements to the equipment or assembly you already have. The package list establishes what is supplied, while compatibility and operating conditions should be checked separately when planning the complete installation. The Max Tx Power specification is 19dBm. The Input Frequency specification is 50/60Hz. The Output Channels specification is 3. The Operating Frequency specification is CN470–510MHz; EU863–870MHz; US902–928MHz; AS923MHz. ABS, flame-retardant grade 94V0 is specified for the housing material.
Product Specifications
| Brand | Winext |
| Model | DS-103 |
| Product Type | 3-Gang LoRaWAN Smart Switch |
| Input Voltage | AC100–240V |
| Input Frequency | 50/60Hz |
| Output Channels | 3 |
| Maximum Load | 300W per channel |
| Operating Power Consumption | <1.3W |
| Standby Power Consumption | <0.7W |
| Antenna | Built-in LoRa antenna |
| Data TX Rate | 300bps–5.4Kbps |
| Operating Frequency | CN470–510MHz; EU863–870MHz; US902–928MHz; AS923MHz |
| Max Tx Power | 19dBm |
| Max Rx Sensitivity | -141dBm |
| Operating Temperature | -20°C to +45°C |
| Operating Humidity | <80%RH |
| Storage Temperature | -40°C to +80°C |
| Storage Humidity | <80%RH |
| Indicator Light | ON – Blue light |
| Housing Material | ABS, flame-retardant grade 94V0 |
| Color | White; customized Black/Gold/Gray |

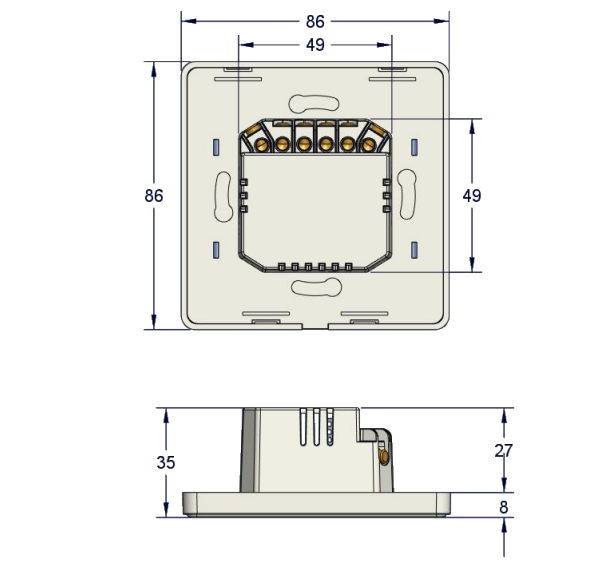

| Dimensions | 86 × 86 × 38mm |
Product Features

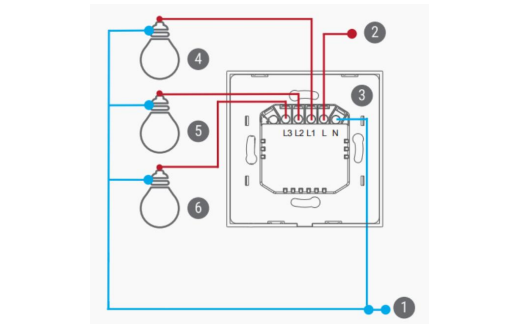

- Provided by Three-gang smart switch panel: three independently controlled lighting output channels.
- Enabled by LoRaWAN connectivity: remote control and integration with compatible smart-management platforms.
- BLE wireless configuration simplifies device commissioning and setup.
- Available functions include local panel control as well as remote control for flexible operation.
- Supported by Each output channel: a maximum load of 300W.
- Supported by Built-in LoRa antenna: a clean, integrated installation.
- Blue indicator light shows the ON state.
- Flame-retardant ABS housing is rated 94V0.
- Standard white finish; Black, Gold and Gray colors can be customized.
- Supported by the 86-type standard base: installation in compatible wall boxes.
Package Includes
- 1 × Winext DS-103 3-Gang Smart Switch
Frequently Asked Questions
What is the DS-103 3-Gang Smart Switch, LoRaWAN Smart Switch used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
