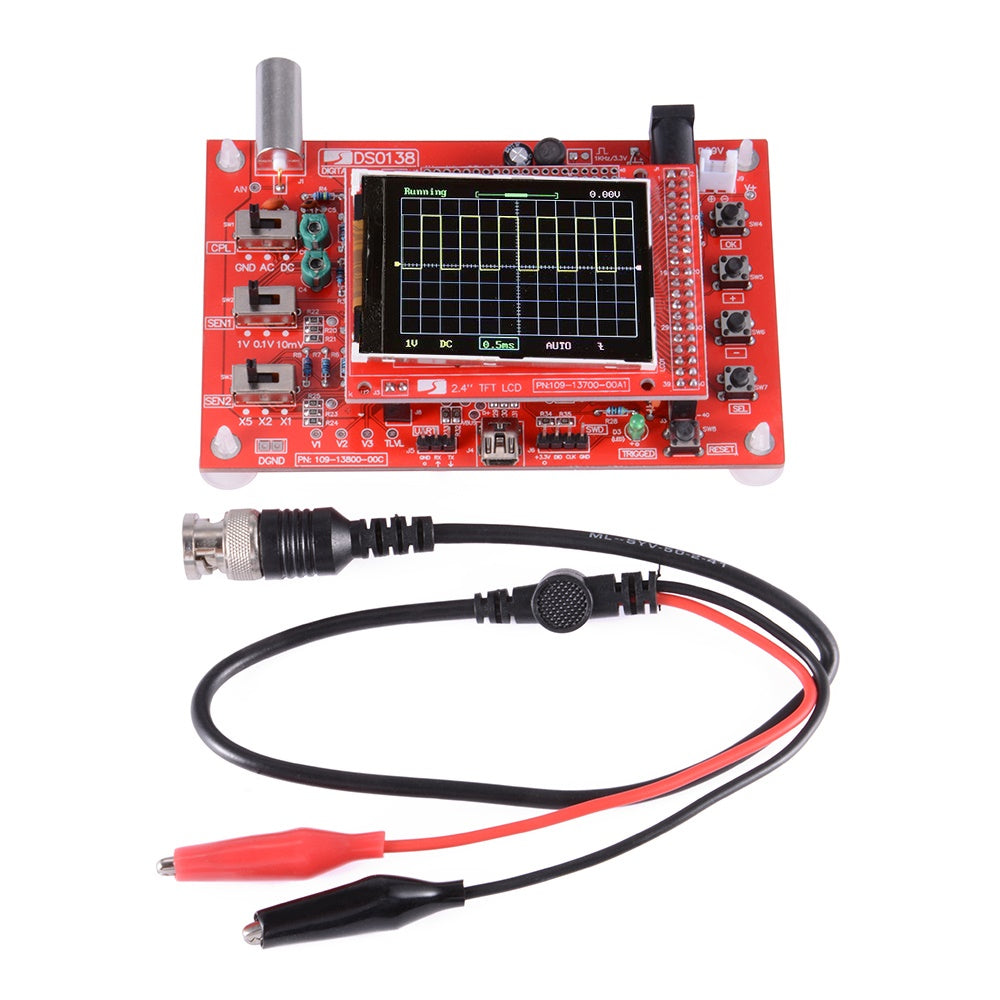

DSO138 2.4 Inch TFT Handheld Digital Oscilloscope Kit – Soldered
Lead Time
Product Description
Bring waveform observation to your electronics bench with the soldered DSO138 digital oscilloscope kit. Its 2.4-inch TFT display provides a compact way to view signals while learning about electronic circuits, troubleshooting compatible projects or exploring embedded-system behaviour. The soldered version reduces the component-assembly work associated with a fully unsoldered kit.
It is a useful educational companion for checking suitable test signals and relating waveform shapes to circuit operation. Students and hobbyists can use it when learning about timing, amplitude and signal changes in supported applications. Confirm the instrument’s input limits, bandwidth and power requirements before connecting it. Choose a measurement setup appropriate to the circuit and signal being tested.
Applications
Product Specifications
| Model | DSO138 |
| Display | 2.4-inch TFT |
| Supply | 9V DC |
| Input Impedance | 1MΩ |
| Sampling Rate | Up to 1Msps |
| Analog Bandwidth | 0–200kHz |
| Sensitivity | 10mV/div to 5V/div |
| Coupling | DC / AC / GND |
| Horizontal Timebase | 10µs/div to 50s/div |
| Controller | STM32F103C8 ARM Cortex-M3 |
| Sample Buffer | 1024 bytes |
Product Features
- Designed as an accessible bench and learning oscilloscope for low-frequency signals.
- On-screen parameter display supports basic waveform analysis.
- Multiple trigger modes and HOLD function assist observation of repetitive and captured signals.
- Built-in test-signal output supports basic setup and learning exercises.
Package Includes
- 1 x DSO138 Digital Oscilloscope Kit – Soldered
- 1 x Probe
Frequently Asked Questions
What is the DSO138 2.4 Inch TFT Handheld Digital Oscilloscope Kit – Soldered used for?
What are its main features?
What are the power or battery requirements?
How should I prepare this product for use?
What is included in the package?
