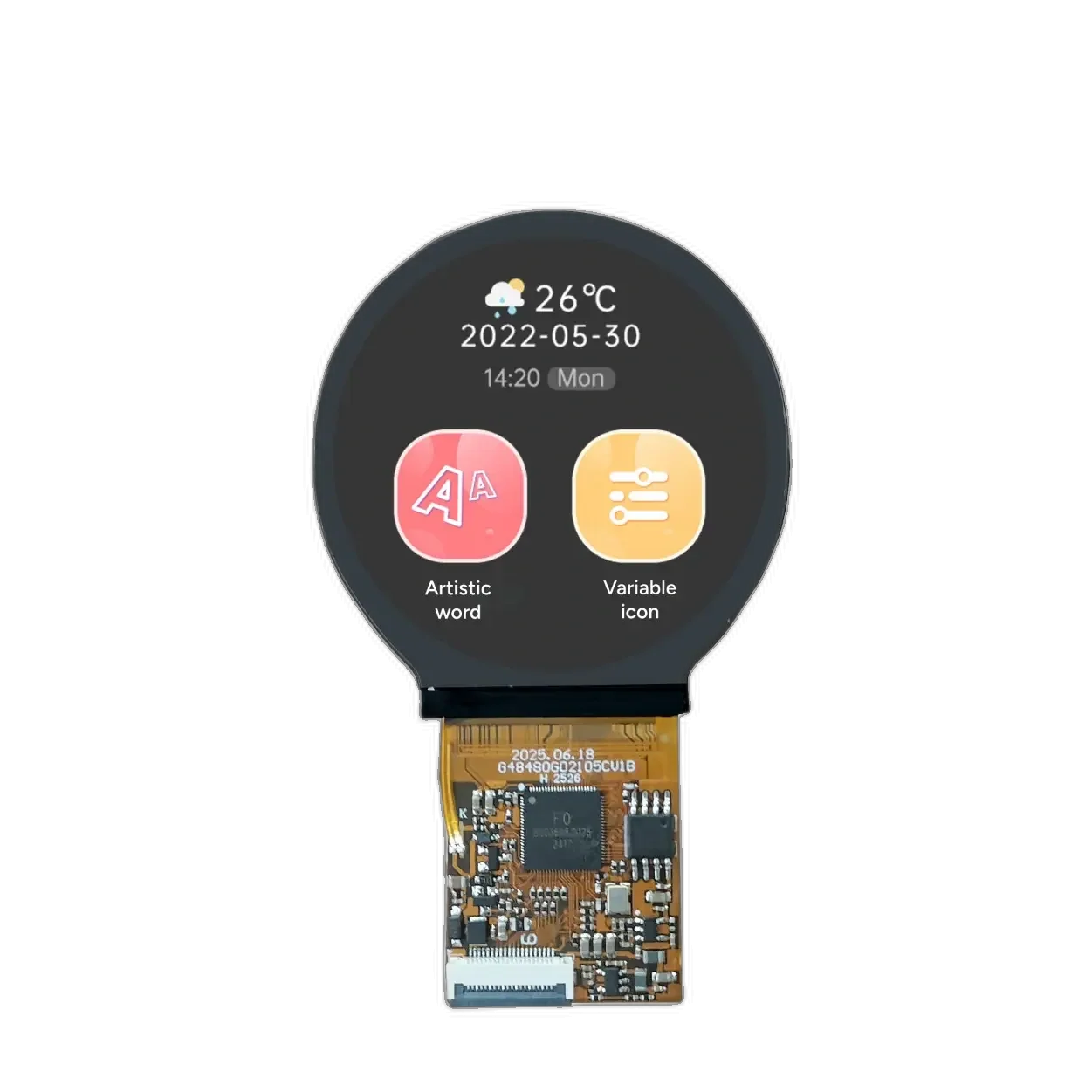

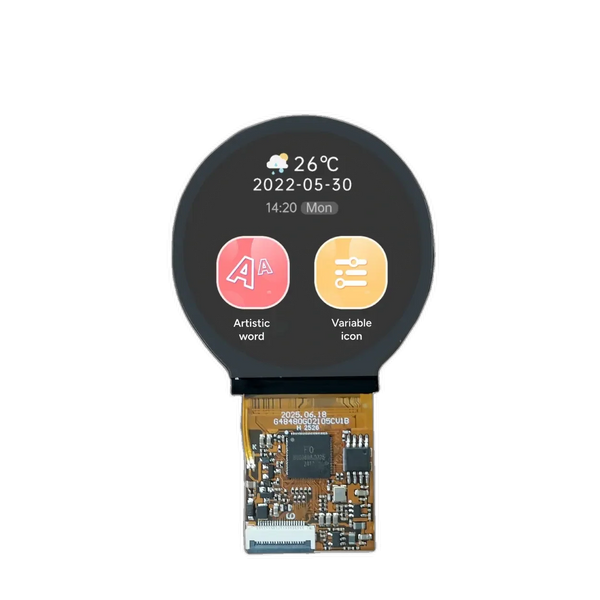

DWIN DMG48480F021_05WN 2.1 Inch 480x480 Circular LCD Screen
Low Stock, 1 left
Product Description
The DWIN DMG48480F021_05WN is a 2.1 inch circular 480×480 IPS smart display module based on the DWIN T5F0 platform. It uses UART communication and the DGUS II HMI environment, making it suitable for compact instrumentation, appliance interfaces, round gauges and embedded control panels.
Product Specifications
| Model | DMG48480F021_05WN |
|---|---|
| Display Size | 2.1 inch |
| Shape | Circular |
| Display Type | IPS |
| Resolution | 480 × 480 |
| Platform | DWIN T5F0 |
| HMI Environment | DGUS II |
| Host Interface | UART |
| Brightness | Approx. 300 cd/m² |
| Touch | No touch (WN model) |
| Operating Temperature | -10°C to +60°C |
| Storage/Download | SD card support |
Product Features
- Circular IPS Interface
The round 480×480 panel is well suited to gauges, meters and compact control interfaces. - DWIN Smart Display Platform
The T5F0-based architecture and DGUS II environment move substantial HMI rendering work onto the display module. - UART Integration
Host controllers can exchange application data through a serial interface. - Project Storage Support
SD card support simplifies loading and maintaining display project resources.
Package Includes
1 × DWIN DMG48480F021_05WN 2.1 Inch 480x480 Circular LCD ScreenOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 2.1 inch circular IPS smart display
- 480×480 pixel resolution
- DWIN T5F0 ASIC platform
- DGUS II HMI development environment
- UART host communication
- Approx. 300 cd/m² brightness
- SD card support for project/download resources
- Designed for compact round HMI applications
