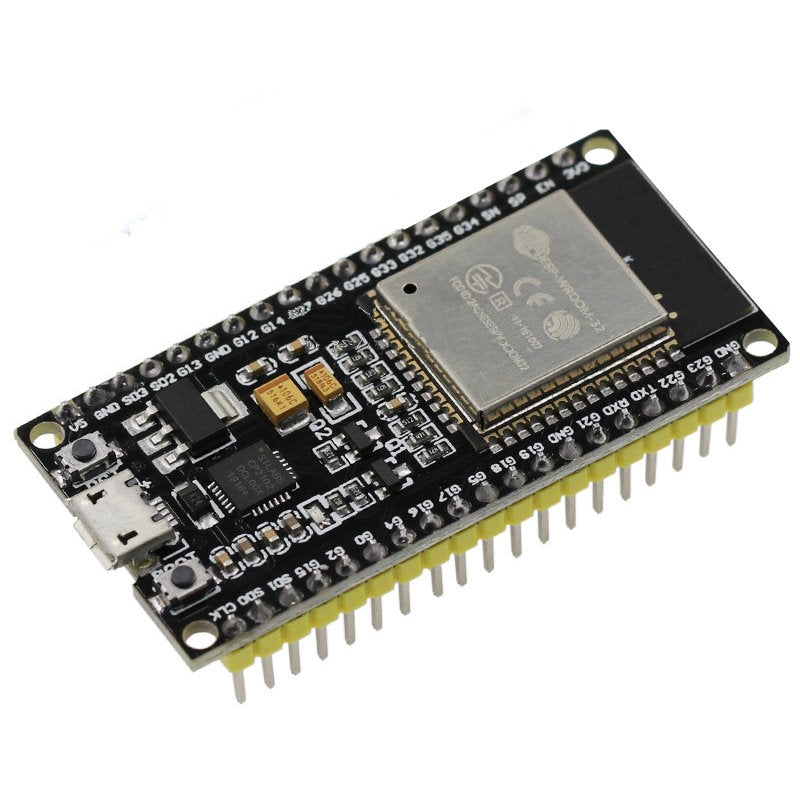

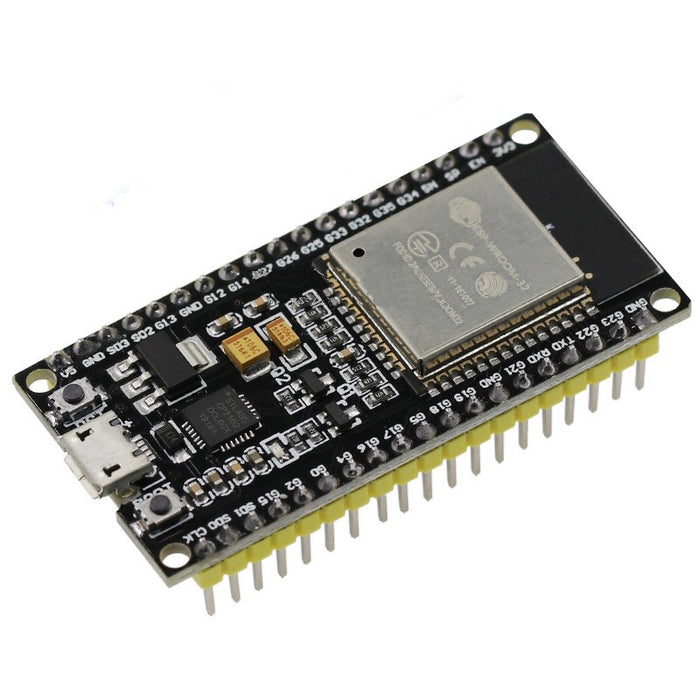

ESP-WROOM-32 Wi-Fi Bluetooth Development Board
Low Stock, 5 left
Product Description
Product Main Features
- Integrated 520 KB SRAM and 4 MB flash memory
- Dual-core Xtensa 32-bit LX6 processor with an adjustable 80–240 MHz clock
- Integrated 2.4 GHz Wi-Fi and Bluetooth 4.2 BR/EDR and BLE
- Ultra-low-power operation for battery-powered and IoT applications
- On-board PCB antenna and rich peripheral support
Product Detail Features
The ESP-WROOM-32 is a versatile Wi-Fi, Bluetooth and Bluetooth Low Energy MCU development board designed for connected embedded applications. Its two processor cores can be controlled independently, while the low-power coprocessor can monitor peripherals during energy-saving operation.
The board supports capacitive touch, Hall sensing, ADC, DAC, SD card, Ethernet, SDIO, SPI, UART, I²C, I²S and PWM interfaces. It is suitable for wireless sensor networks, industrial control, home automation, wearable electronics, smart sockets, audio applications and rapid IoT prototyping.
Product Specifications
| Model | ESP-WROOM-32 |
|---|---|
| Processor | Two low-power Xtensa 32-bit LX6 microprocessors |
| Clock Frequency | 80–240 MHz |
| SRAM | 520 KB |
| Flash Memory | 4 MB |
| Wi-Fi | IEEE 802.11 b/g/n, up to 150 Mbps |
| Wireless Frequency | 2.4 GHz |
| Bluetooth | Bluetooth 4.2 BR/EDR and BLE |
| Operating Voltage | 3.0–3.6 V |
| Operating Current | 80 mA typical |
| Dimensions | 50 × 28 mm |
| Weight | 10 g |
| Interfaces | GPIO, ADC, DAC, UART, SPI, SDIO, I²C, I²S, PWM, SD card and Ethernet |
Product Package Includes
- 1 × ESP-WROOM-32 Wi-Fi Bluetooth Development Board
Other Info
- Applications include low-power IoT sensor hubs, home automation, mesh networks, industrial wireless control, smart sockets, wearable electronics and Wi-Fi-enabled devices.
- Reference-site SKU: 835800.
Applications
Product Specifications
Model: ESP-WROOM-32 Processor: Two low-power Xtensa 32-bit LX6 microprocessors Clock: 80–240 MHz SRAM: 520 KB Flash: 4 MB Wi-Fi: IEEE 802.11 b/g/n, up to 150 Mbps Bluetooth: 4.2 BR/EDR and BLE Operating voltage: 3.0–3.6 V Operating current: 80 mA typical Dimensions: 50 × 28 mm Weight: 10 gProduct Features
Two independently controllable CPU cores and a low-power coprocessor. Supports capacitive touch, Hall sensor, ADC, DAC, SD card, Ethernet, SDIO, SPI, UART, I²C, I²S and PWM interfaces for connected embedded and IoT development.Package Includes
1 × ESP-WROOM-32 Wi-Fi Bluetooth Development BoardOther Information
