FirstRate FST100-2008, Tipping Bucket Rain Gauge Sensor, RS485, 0.2mm Resolution, Range: ≤4 mm/min~8mm/min
FirstRate FST100-2008, Tipping Bucket Rain Gauge Sensor, RS485, 0.2mm Resolution, Range: ≤4 mm/min~8mm/min
Low Stock, 1 left
Product Description
The FST100-2008 Tipping Bucket Rain Gauge measures rainfall in nature and converts rainfall measurements into digital information for transmission, processing, recording and display. It is suitable for measuring precipitation, rainfall intensity and rainfall duration in small meteorological stations, hydrological stations, agriculture and forestry applications.
Key characteristics include Resolution: 0.2 mm; Signal output: RS485; Rain opening diameter: φ200 mm; Test rain intensity: ≤4 mm/min (maximum allowed: 8 mm/min). Install it level at a suitable open-air location and verify the communication protocol and calibration.
Applications
Product Specifications
| Display & Computing | |
|---|---|
| Resolution | 0.2 mm |
| Measurement & Sensor | |
| Signal output | RS485 |
| Baud rate | 9600 |
| Rain opening diameter | φ200 mm |
| Test rain intensity | ≤4 mm/min (maximum allowed: 8 mm/min) |
| Connections & Interfaces | |
| Protocol | Modbus-RTU |
| Power & Electrical | |
| Signal voltage | 0.4–2 VDC |
| Physical & Environmental | |
| Ambient temperature | −10°C to 50°C |
| Dimensions | φ216 × 460 mm |
| Packaging & Shipping | |
| Shipping weight | 3.55 kg |
| Shipping dimensions | 55 × 26 × 26 cm |
Product Features
- High precision and good stability.

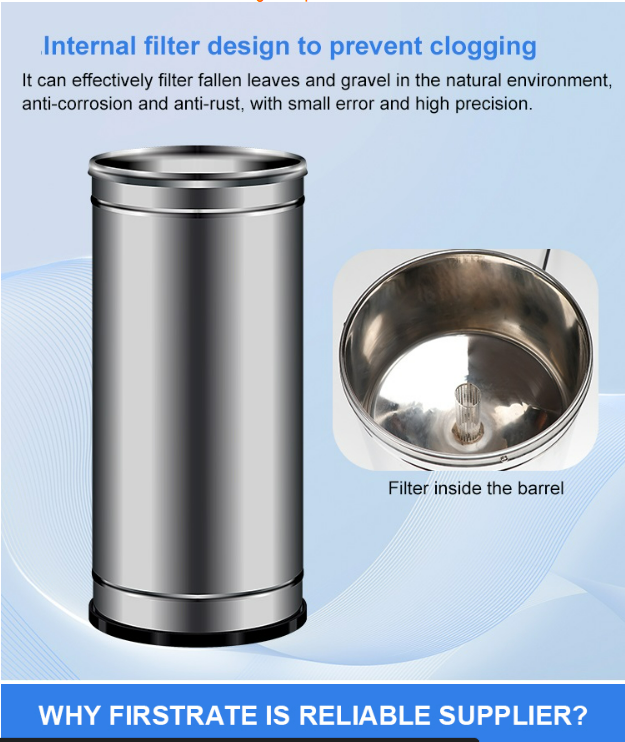

- Funnel mesh prevents leaves and other debris from blocking the rainfall collector.
- Sensitive tipping mechanism with stable performance and reliable operation.
- Stainless steel shell with a durable, quality finish.

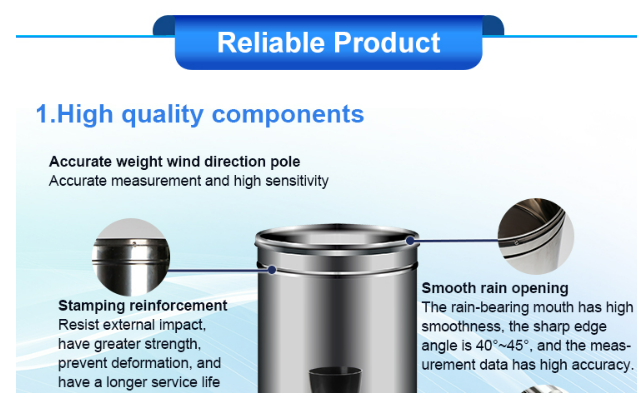

- Smooth stainless steel rain-bearing mouth minimizes water retention error.
- Signal voltage: 0.4–2 VDC.
- Resolution: 0.2 mm.
- Signal output: RS485.
- Protocol: Modbus-RTU.
Package Includes
- 1 × FirstRate FST100-2008 tipping bucket rain gauge sensor, RS485, 0.2 mm resolution
- 3 × leg lock nuts
- 3 × base support nuts
- 1 × screw set
Frequently Asked Questions
What is the FirstRate FST100-2008, Tipping Bucket Rain Gauge Sensor, RS485, 0.2mm Resolution, Range: ≤4 mm/min~8mm/min used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
