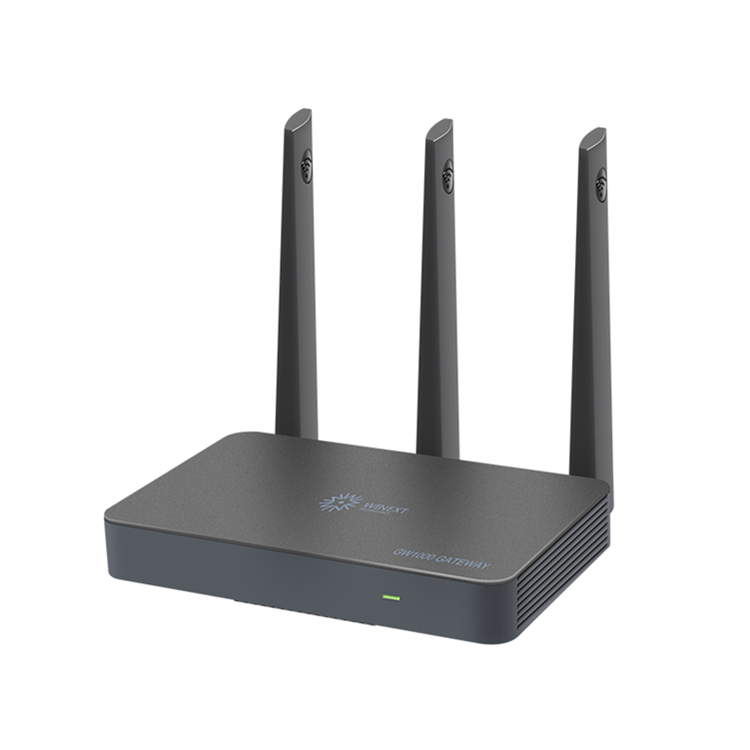

GW1000 Indoor LoRaWAN Gateway
Low Stock, 1 left
Product Description
The GW1000 is a multifunctional indoor LoRaWAN gateway for small-scale networks and supplementary coverage in indoor signal blind areas. It combines a Semtech SX1308 concentrator with Fast Ethernet, Wi-Fi and optional 3G/4G connectivity, while also providing router functionality.
Its operational features include WAN and cellular networking, firewall and DNS protection, remote OTA upgrades, self-diagnosis and repair, TF-card log storage and an anti-theft key. The web-based interface enables management through Ethernet or Wi-Fi.
Applications
Product Specifications
| Model | GW1000 |
|---|---|
| Product type | Indoor multifunctional LoRaWAN gateway |
| LoRa chipset | Semtech SX1308 |
| Channels | 8 uplink channels, 1 downlink channel |
| Frequency bands | CN470 / EU868 / US915 / AS923 / AU915 |
| Maximum transmit power | 20 dBm |
| Receive sensitivity | -141 dBm at SF12 |
| Device class | Class A |
| LoRaWAN specifications | 1.0.2, 1.0.3 and 1.1 |
| Ethernet | 1 × Fast Ethernet |
| Cellular | Optional 3G/4G |
| GPS | Supported |
| Wi-Fi | IEEE 802.11n |

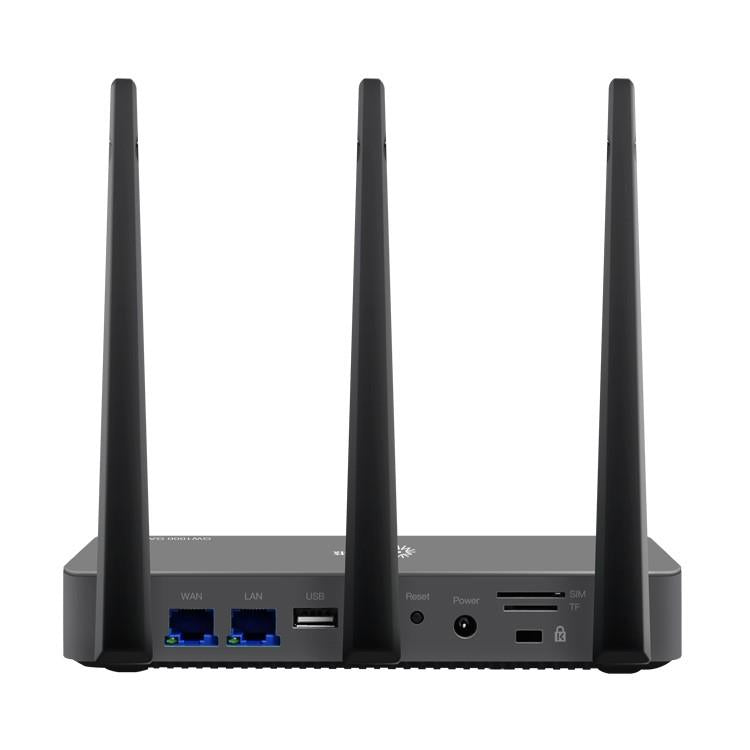

| Antenna ports | 1 × LoRa N-type, 1 × Wi-Fi N-type, 1 × optional cellular N-type |
| Other interfaces | 1 × SIM slot, 1 × TF card slot, USB port and reset button |
| Power supply | 12VDC |
| Power consumption | <7 W |
| Operating temperature | -10°C to 50°C |
| Operating humidity | 5% to 95% RH, non-condensing |

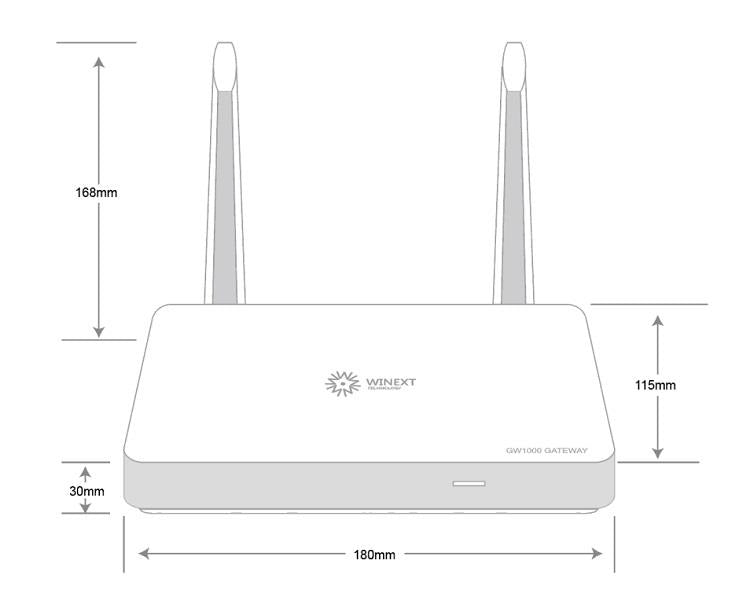

| Dimensions | 180 × 115 × 30 mm |
| Management interface | Web-based GUI through Ethernet or Wi-Fi |
| Operating system | Embedded Linux, 4.x kernel |
Product Features
- Supports small-scale LoRaWAN networking and supplements coverage in indoor blind areas.
- Provides router functionality with WAN, Wi-Fi and optional cellular access.
- Supports Class A devices under LoRaWAN specifications 1.0.2, 1.0.3 and 1.1.
- Includes firewall and DNS protection for safer network deployment.
- Remote OTA upgrade and automatic diagnosis functions simplify maintenance.
- SIM, TF card and USB interfaces support cellular service, log storage and local administration.
Package Includes
- 1 × GW1000 Indoor LoRaWAN Gateway
- 1 × LoRa antenna
- 1 × Wi-Fi antenna
- 1 × LTE antenna where applicable
- 1 × Power adapter
- 1 × User documentation
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Indoor multifunctional LoRaWAN gateway and router
- Semtech SX1308 with 8 uplink and 1 downlink channel
- Fast Ethernet, Wi-Fi and optional 3G/4G connectivity
- Firewall and DNS protection
- Remote OTA upgrade, self-diagnosis and repair
- TF-card log storage and anti-theft key
- Supports CN470, EU868, US915, AS923 and AU915 frequency plans
