GW1000- LTE Indoor LoRaWAN Gateway
GW1000- LTE Indoor LoRaWAN Gateway
Low Stock, 1 left
Product Description
The GW1000 is a multi-functional LoRa gateway designed for indoor environments. It supports the internationally recognized LoRaWAN standard and multiple network access methods, including Wi-Fi, LTE, and Ethernet (RJ45 interface), and also features router functionality. It can meet the needs of small-scale LoRaWAN networking and supplementing network signal blind spots (such as in enclosed environments), offering flexible usage, convenient installation, and simple deployment. Suitable for networking applications with high communication requirements, strong anti-interference capabilities, high sensitivity, low power consumption, and a large number of dispersed access nodes, it provides users with a low-cost, high-reliability indoor IoT solution.

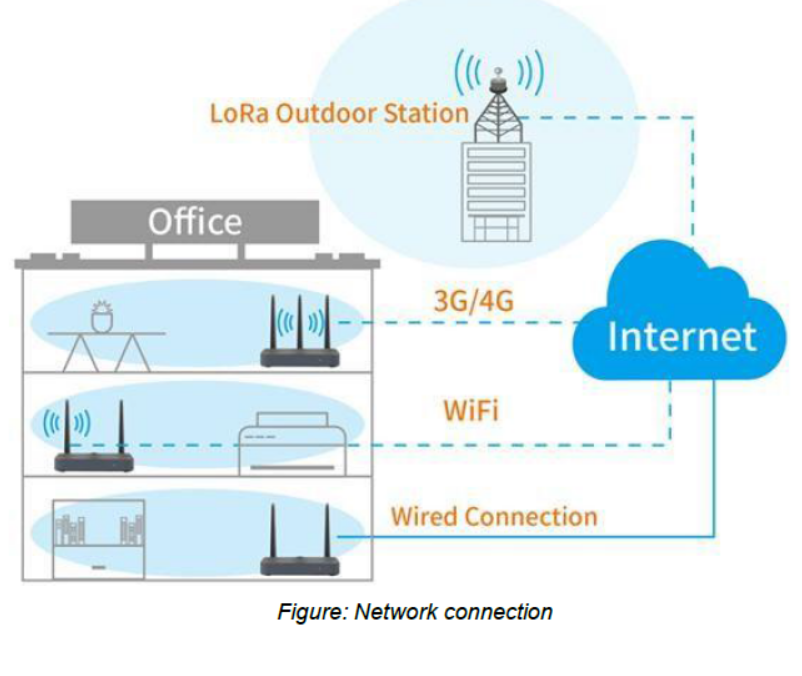

The GW1000 can be used independently, leveraging its advantages of small-area coverage and cost-effectiveness, making it widely applicable in indoor settings such as smart fire protection, smart homes, smart buildings, indoor parking, smart warehousing, and smart metering. Alternatively, it can be used in conjunction with outdoor gateways to fill LoRa network signal blind spots, achieving wider and better network coverage. This makes it suitable for applications in smart cities, smart transportation, smart communities, and industrial parks.
Applications
Product Specifications
| General & LoRaWAN | |
|---|---|
| Model | GW1000-LTE |
| Master Control | Qualcomm 9531; 128 MB RAM; 16 MB Flash |
| Power Supply | DC 12 V |
| Frequency Bands | CN470–510 / EU863–870 / US902–928 / AS923 / AU915–928 / KR920–923 MHz (region/variant dependent) |
| LoRa Data Rate | 292 bps–5.4 kbps; SF7–SF12 |
| LoRa TX Power | 17 dBm nominal; maximum 20 dBm at antenna port |
| LoRa RX Sensitivity | −141 dBm @ SF12 |
| LoRa Antenna | 2 dBi omnidirectional |
| LoRa Channels | 8 uplink channels; 1 downlink channel |
| Operating Mode | Half-duplex |
| Wi-Fi | 2.4 GHz; AP mode; maximum 18 dBm |
| Backhaul | 10/100 Mbps Ethernet; 3G/4G LTE |
| Debug Interfaces | Wi-Fi, LAN, serial port |
| LTE Bands — Regional Module Variants | |
| China | LTE-TDD B38/B39/B40/B41; LTE-FDD B1/B3/B5/B7/B8; TD-SCDMA B34/B39; UMTS B1/B8; EVDO 800 MHz; CDMA1x 800 MHz; GSM 850/900/1800/1900 |
| Europe / Korea / Thailand / India | LTE-FDD B1/B3/B5/B8/B20; LTE-TDD B38/B40/B41; WCDMA B1/B5/B8; GSM B3/B8 |
| North America | LTE-FDD B2/B4/B5/B12/B13/B14/B66/B71; WCDMA B2/B4/B5 |
| Latin America / Australia / New Zealand | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28; LTE-TDD B40; WCDMA B1/B2/B5/B8; GSM/EDGE B2/B3/B5/B8 |
| Global Module | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; LTE-TDD B38/B39/B40/B41; WCDMA B1/B2/B4/B5/B6/B8/B19; GSM B2/B3/B5/B8 |
| Physical & Environmental | |
| Operating Temperature | −10°C to +50°C |
| Relative Humidity | 5%–95% |
| Power Consumption | 7 W |

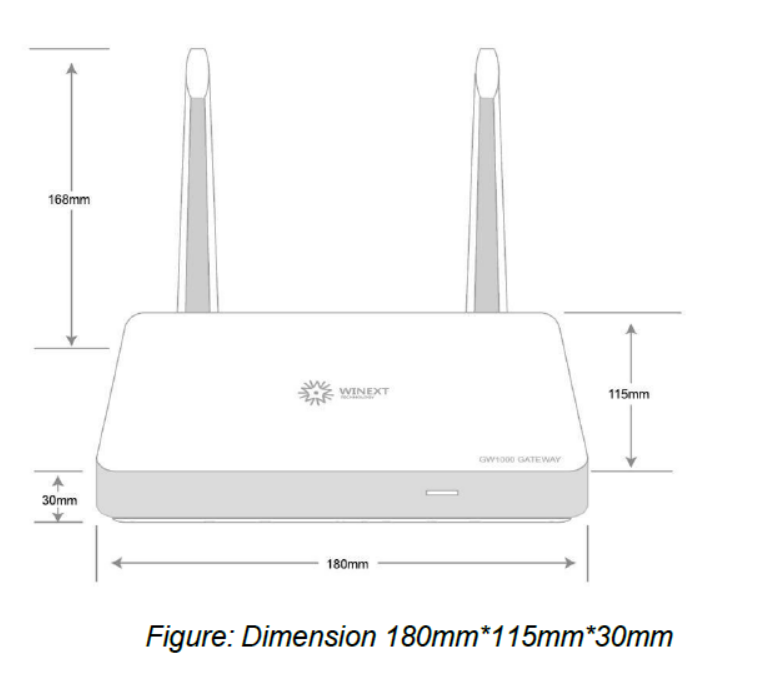

| Dimensions | 180 × 115 × 30 mm |
| Network & Software | |
| LoRaWAN | V1.0.2 / 1.0.3 / 1.0.4 and V1.1; Class A and C |
| Packet Forwarding | UDP GWMP, MQTT GWMP, Basic Station CUPS/LNS, embedded network server |
| Embedded Network Server | Supports 100 terminal connections; MQTT/HTTP push |
| Ethernet Ports | 2 × RJ45 (WAN and LAN) |
| WAN Protocols | Static IP, DHCP client, PPPoE |
| Remote Maintenance | Remote configuration, restart, firmware OTA and diagnostics |
Product Features
- Supports LoRaWAN V1.0.2, 1.0.3, 1.0.4 and V1.1 with Class A and Class C devices
- 8 uplink channels and 1 downlink channel; adaptive data rate
- UDP packet forwarder and Basics Station CUPS/LNS support
- Switchable embedded or external network server (NS)
- Embedded NS supports MQTT/HTTP data push and Modbus TCP node-data queries
- Embedded NS supports queued/recovered MQTT data transmission following interruption (subject to configuration)
- Gateway status, configuration and live node data through local Wi-Fi web interface
- Firewall, SYN-flood defence and DNS rebinding protection
- Self-diagnosis, self-healing and OTA remote firmware upgrades
- TF card expansion for gateway logs and historical node data

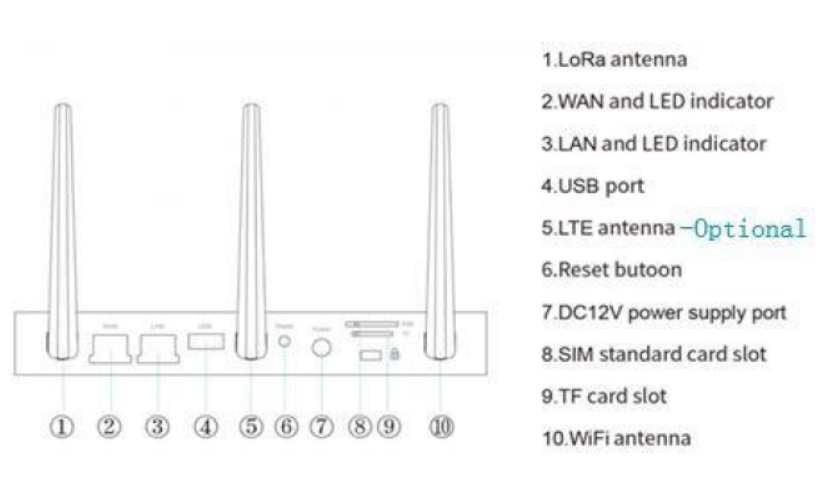

- 2 Ethernet RJ45 ports (WAN + LAN)
- IPv6 functionality via 4G with IPv6 relay to LAN/Wi-Fi
- Automatic WAN-to-4G failover (WAN preferred)
- Regional 4G/LTE module variants available; verify local cellular bands before ordering

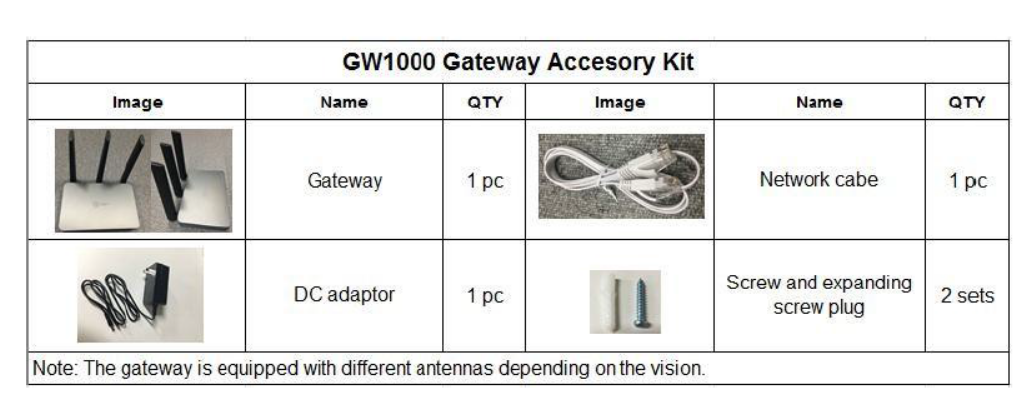

Package Includes
- 1 × GW1000-LTE indoor LoRaWAN gateway
- 1 × DC power adaptor (per manufacturer packing kit)
- 1 × Ethernet network cable
- 2 × Screw and expansion-plug sets
- Antenna arrangement depends on variant; confirm before dispatch
Frequently Asked Questions
What is the GW1000- LTE Indoor LoRaWAN Gateway used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Multi-functional LoRaWAN gateway for indoor applications
- Wi-Fi, 4G LTE and Ethernet (RJ45) backhaul connectivity
- Router functions with dual WAN/LAN RJ45 ports
- Ideal for small-scale LoRaWAN networks and indoor signal blind spots
- High receive sensitivity and interference resistance
- 8 uplink channels and 1 downlink channel for multiple distributed IoT nodes
- Low power consumption (7 W)
- Easy installation, remote management and OTA updates
- Embedded or external LoRaWAN network-server options
- Cost-effective, reliable indoor IoT connectivity
