Product descriptions from the supplier
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

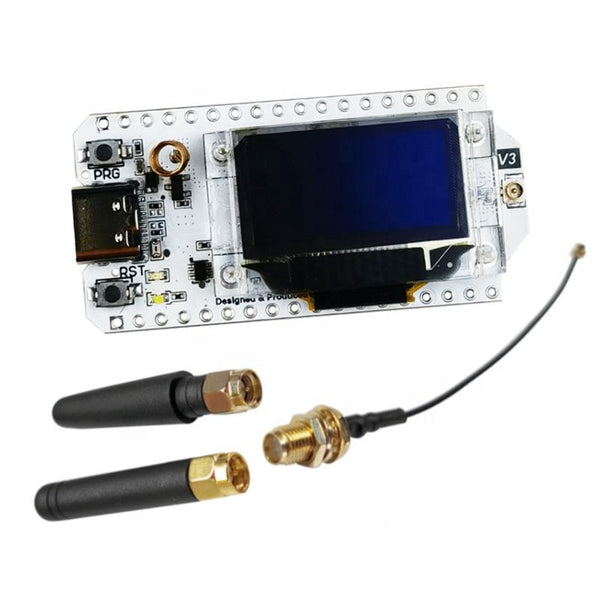

- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

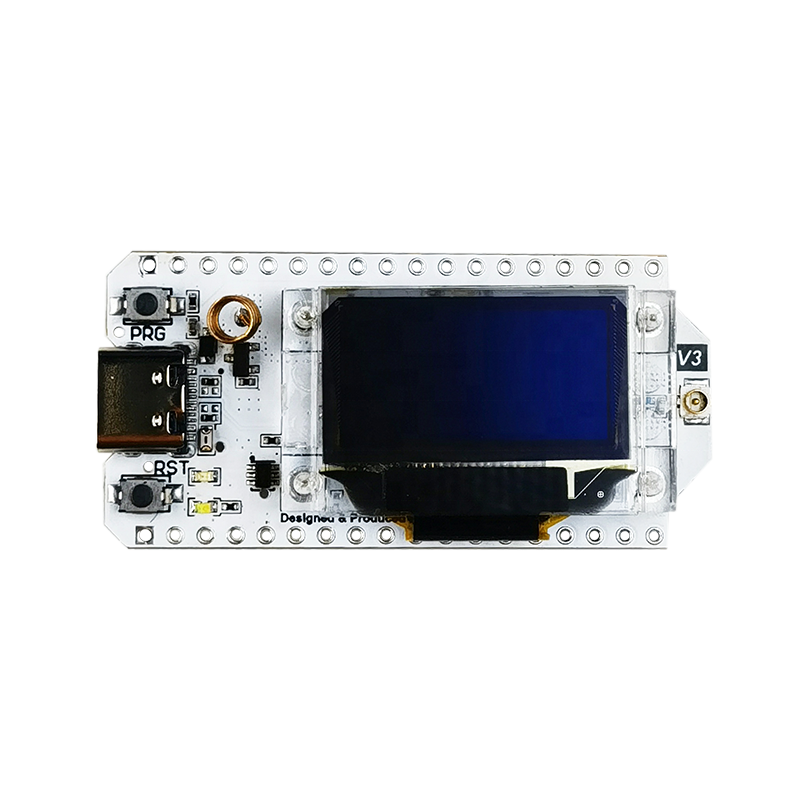

- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. it can be found on this page;
-
With good RF circuit design and low-power design.
| Device Specifications | |
|---|---|
| Master Chip | ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor) |
| LoRa Chipset | SX1262 |
| USB to Serial Chip | CP2102 |
| Frequency | 470~510 MHz, 863~928 MHz |
| Max TX Power | 21 ±1 dBm |
| Max Receiving Sensitivity | -139 dBm |
| Wi-Fi | 802.11 b/g/n, up to 150 Mbps |
| Bluetooth | Bluetooth LE, Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC 1~2*DAC; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SIP Flash |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT (IPEX1.0); 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Operating Temperature | -20 ~ 70 °C |
| Dimensions | 50.2 × 25.5 × 10.2 mm |
