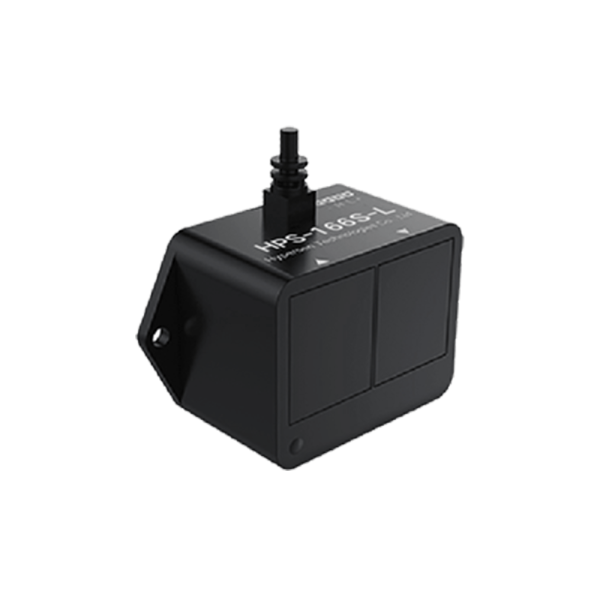

Hypersen HPS-166S-L 25m RS485 Modbus ToF Ranging Sensor
Low Stock, 1 left
Product Description
Hypersen HPS-166S-L Time-of-Flight infrared ranging sensor for fast industrial distance measurement. It provides a 0.08m to 25m measurement range, adaptive 6–54Hz output, RS485 Modbus communication and integrated ambient-light, temperature and colour compensation in a compact waterproof enclosure.
Product Specifications
| Brand | Hypersen |
|---|---|
| Model | HPS-166S-L |
| Sensing principle | Time-of-Flight infrared |
| Measurement range | 0.08m–25m |
| Measurement frequency | Adaptive 6–54Hz |
| Interface | RS485 |
| Protocol | Modbus RTU |
| Emitter | VCSEL |
| Compensation | Ambient light, temperature and colour |
Product Features
- High-speed ToF sensing supports industrial ranging and positioning tasks.
- Integrated compensation algorithms improve performance across changing light, temperature and target colour.
- RS485 Modbus interface simplifies connection to PLC, gateway and automation systems.
- Compact waterproof enclosure is designed for demanding installations.
- Suitable for robotics, machine control and object-distance monitoring.
Package Includes
- 1 × Hypersen HPS-166S-L ToF Ranging Sensor
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Time-of-Flight infrared distance measurement
- 0.08m to 25m ranging capability
- Adaptive 6–54Hz measurement output
- RS485 Modbus industrial communication
- Ambient-light, temperature and colour compensation
