Product Description

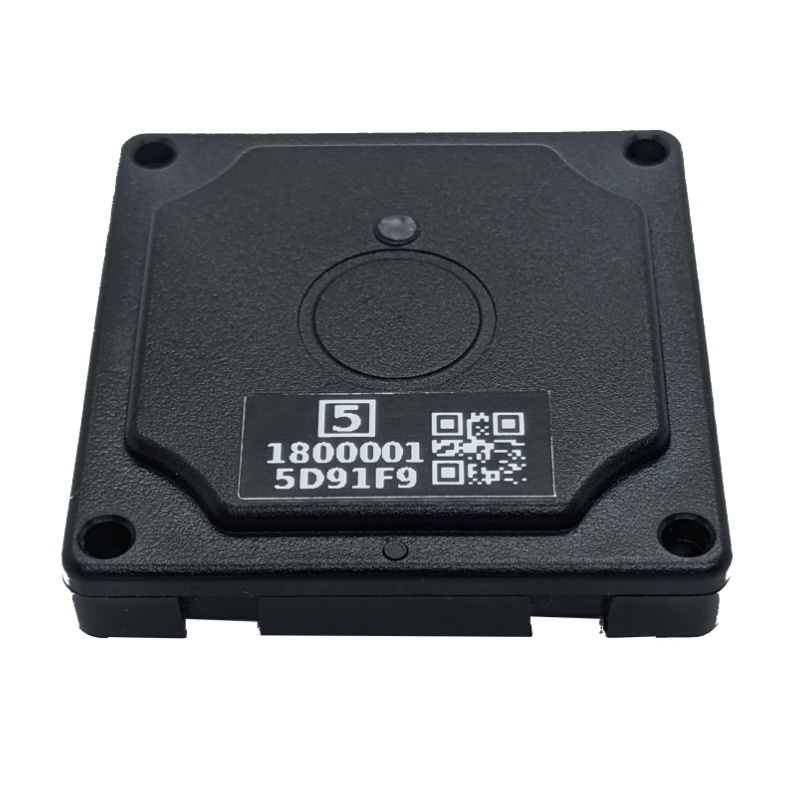

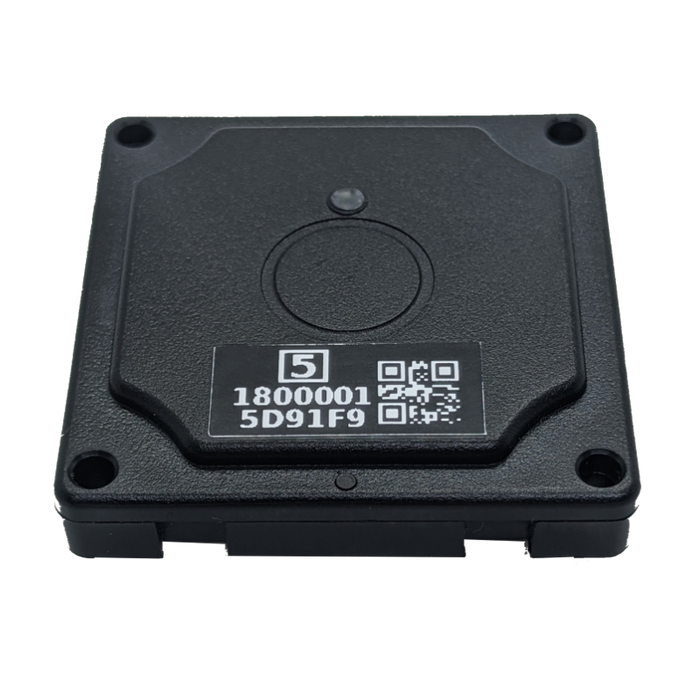

The INGICS iBS05 Tracking Beacon Tag is a compact Bluetooth Low Energy (BLE) device designed for tracking assets, equipment and personnel through compatible Bluetooth receivers and gateways. Supporting Bluetooth 5 with LE Coded PHY, it transmits beacon advertisements that can be used for proximity-based monitoring and location awareness across connected facilities.
Powered by a single CR2032 coin-cell battery, the iBS05 offers up to 3 years of battery life at the manufacturer's specified 5-second advertising interval. Its BLE communication range reaches up to 100 metres in line-of-sight conditions, while its compact 38 × 38 × 9 mm housing and IPx7 water-resistance rating support unobtrusive deployment in a range of environments.
The beacon is suitable for warehouse asset identification, tools and equipment tracking, employee and visitor presence monitoring, and proximity-based access or zone monitoring. It works with compatible INGICS BLE gateways and other Bluetooth receiving systems; it is not a standalone GPS or LoRaWAN tracker. Actual coverage and battery endurance depend on the environment and advertising configuration.
For configuration, battery handling and deployment guidance, refer to the INGICS iBS05 product information and documentation.
Applications
Product Specifications
| General | |
|---|---|
| Manufacturer | INGICS |
| Model | iBS05 |
| SKU | 2ESE20128 |
| Product Type | BLE Tracking Beacon Tag |

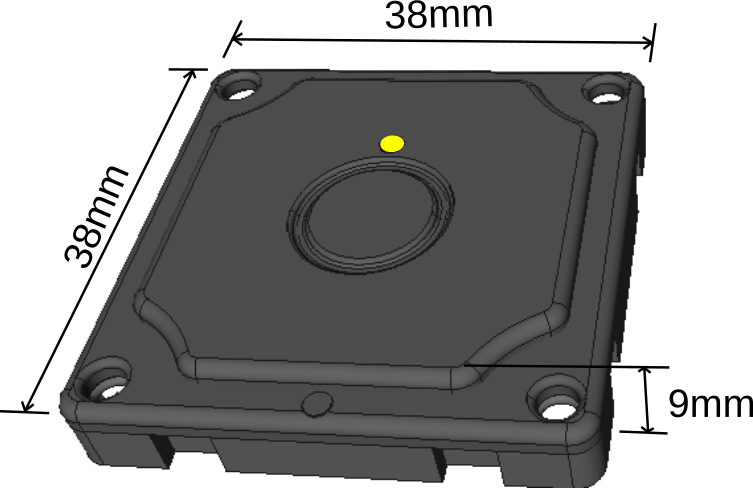

| Dimensions | 38 × 38 × 9 mm |
| Bluetooth & Wireless | |
| Wireless Technology | Bluetooth 5 Low Energy (BLE) with LE Coded PHY |
| Frequency Band | 2.4 GHz |
| Maximum BLE Range | Up to 100 m (line of sight) |
| Antenna | On-board PCB antenna |
| Maximum TX Power | +4 dBm |
| Battery & Power | |
| Battery | 1 × CR2032 coin cell |
| Battery Life | Up to 3 years at a 5-second advertising interval (typical setting) |
| Environment | |
| Operating Temperature | −20°C to +60°C |
| Water Resistance | IPx7 (temporary immersion protection) |
Product Features
- Sends BLE beacon advertisements for asset identification and proximity-based monitoring with a compatible receiver.
- Supports Bluetooth 5 Low Energy and LE Coded PHY for long-range reception on compatible equipment.
- Open-space range is rated up to 100 m line of sight; actual range varies with site conditions.
- One CR2032 battery provides up to 3 years of typical service at a 5-second advertising interval.
- Compact IPx7 water-resistant 38 × 38 × 9 mm enclosure can be discreetly attached to monitored assets.
- Requires an external BLE gateway or receiver for monitoring; GPS and LoRaWAN are not supported.
- Use INGICS configuration and battery-replacement instructions to maintain reliable operation.
Docs & Resources
Package Includes
- 1 × INGICS iBS05 Bluetooth Tracking Beacon Tag
Frequently Asked Questions
What is the iBS05 Tracking Beacon Tag used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Country of Origin: Taiwan
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5 Low Energy tracking beacon with LE Coded PHY
- Up to 100 m BLE communication range (line of sight)
- Replaceable CR2032 coin-cell battery
- Up to 3 years typical battery life at a 5-second advertising interval
- IPx7 water resistance for temporary immersion
- Compact 38 × 38 × 9 mm housing
- Compatible with INGICS BLE gateways and other BLE receivers
