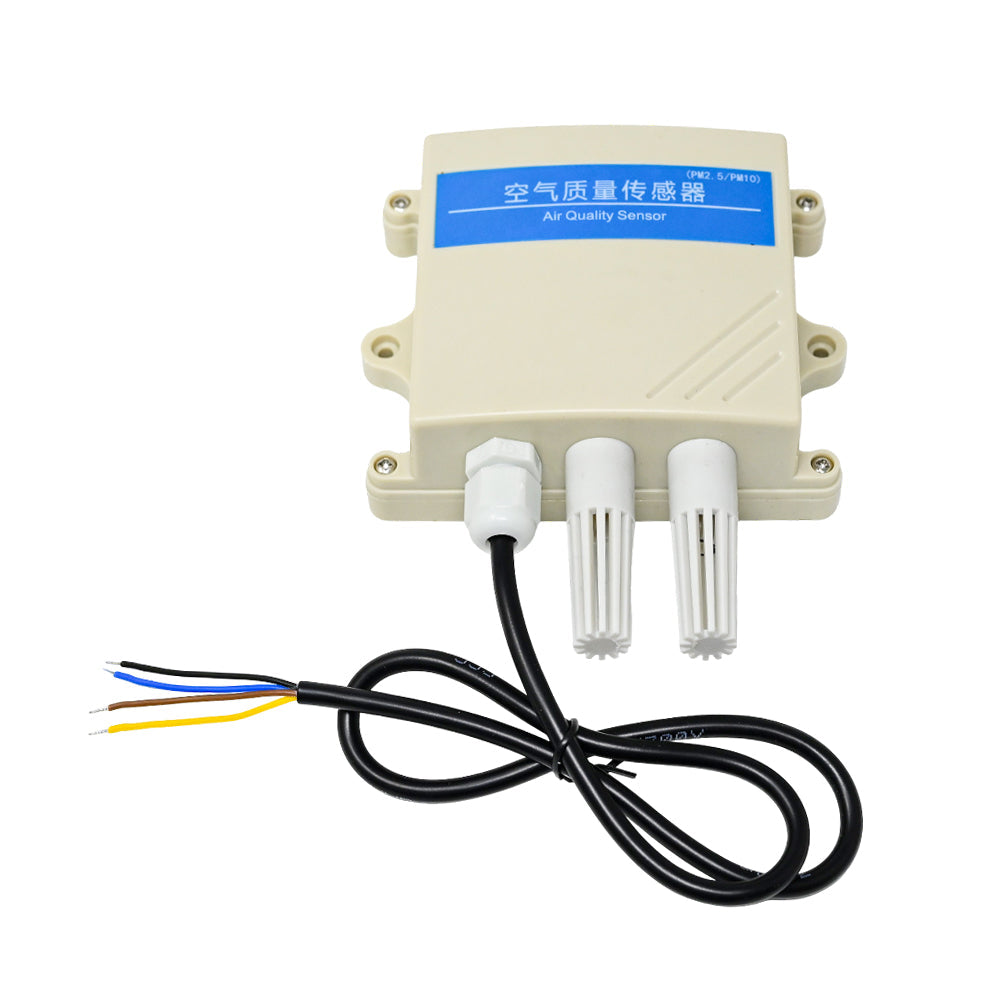

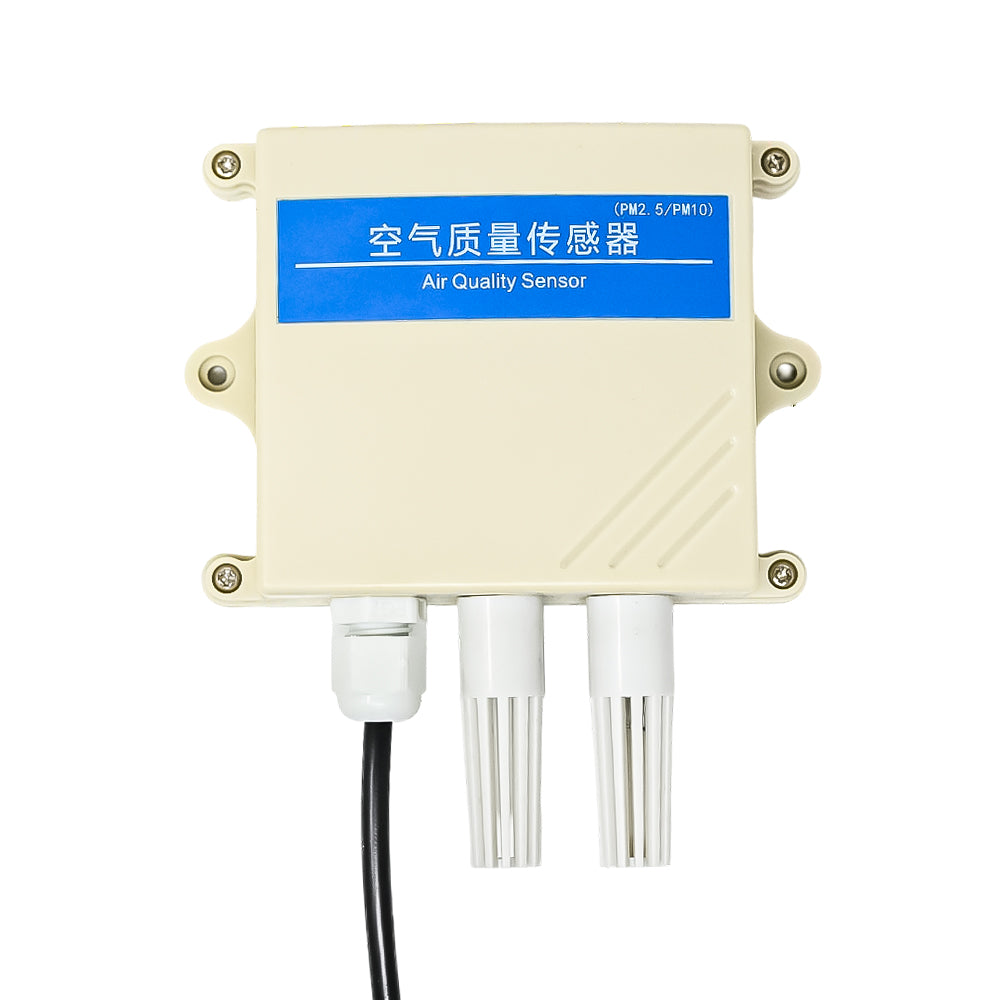

Industrial PM2.5 PM10 Air Quality Detector – RS485
Lead Time
Product Description
Industrial air-quality detector for continuous PM2.5 and PM10 particulate monitoring. Its wall-mounted enclosure and RS485 communication interface provide reliable integration with industrial control and environmental monitoring systems.
Designed for indoor air-quality monitoring in factories, warehouses, offices, laboratories and smart buildings. It supports integration with HVAC, BMS, PLC, data loggers and IoT gateways.
Applications
Product Specifications
| Model | SN-3002-PM-N01 (RS485) |
|---|---|
| Measured parameters | PM2.5 and PM10 particulate matter |
| Measurement range | 0–2000 μg/m³ for PM2.5 and PM10 |
| Response time | ≤90 seconds |
| Power supply | 10–30V DC |
| Working current | 30–60 mA |
| Communication interface | RS485 |
| Enclosure material | ABS |
| Installation | Wall mounted |
| Length | 120 mm |
| Width | 140 mm |
| Product weight | 183 g |
Product Features
- Designed to detect and report PM2.5 and PM10 particulate concentration.
- RS485 output enables long-distance communication with industrial controllers and gateways.
- Wall-mount housing supports straightforward installation in fixed monitoring locations.
- Suitable for factories, warehouses, offices, laboratories and environmental stations.
- Can be integrated into building automation and ventilation-control applications.
Package Includes
- 1 × PM2.5 & PM10 Air Quality Detector Sensor
- 2 × Mounting screws
Frequently Asked Questions
What is the Industrial PM2.5 PM10 Air Quality Detector – RS485 used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Simultaneous PM2.5 and PM10 particulate monitoring
- RS485 communication for industrial integration
- Wall-mounted enclosure for fixed installation
- Suitable for continuous air-quality monitoring
- Compatible with HVAC, BMS, PLC and IoT monitoring systems
