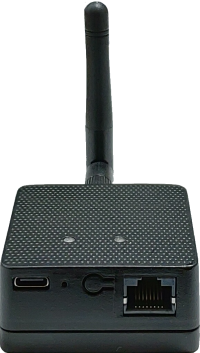

Ingics iGS03E Industrial BLE-to-Ethernet Gateway

Product Description

The Ingics iGS03E is an industrial BLE-to-Ethernet gateway designed to receive Bluetooth Low Energy beacon and sensor broadcasts and forward the data to network or cloud applications over 10/100M Ethernet. It combines long-range Bluetooth 5 / LE Coded PHY support with IEEE 802.3af PoE, HTTP(S), MQTT(S) and TCP connectivity for industrial IoT, building automation, asset tracking and BLE sensor-network deployments.

Applications

Manufacturing & Industrial Smart Buildings Logistics & Supply Chain

Product Specifications

Manufacturer	Ingics
Model	iGS03E
Gateway Type	Industrial BLE-to-Ethernet Gateway
Ethernet	10/100M Ethernet, Auto MDI/MDIX
PoE	IEEE 802.3af, +44 to 57 VDC
USB-C Power	+5 V ±5%, 1 A
Bluetooth	Bluetooth 5 / BLE, LE Coded PHY
BLE Transmit Power	Max +4 dBm
Receiver Sensitivity	-97 dBm @ 1 Mbps; -104 dBm @ 125 Kbps
BLE Range	>100 m open space
Antenna	2 dBi dipole antenna
Protocols	TCP, HTTP/HTTPS, MQTT/MQTTS
BLE Receive Rate	Up to 200 packets/second
Operating Temperature	-20°C to +60°C
Humidity	Max 95% RH, non-condensing

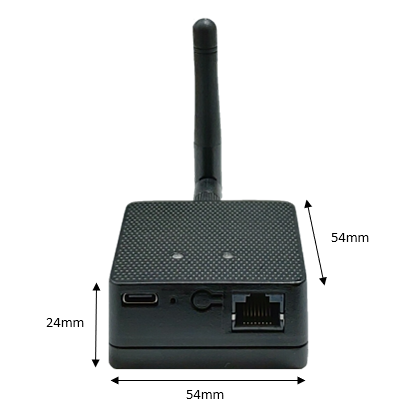

Dimensions	54 × 54 × 24 mm, excluding antenna and connector
Unit Weight	46 g
Certifications	Bluetooth, TELEC, CE/FCC

Product Features

Industrial Ethernet: 10/100M Ethernet with Auto MDI/MDIX and IEEE 802.3af PoE enables combined network and power deployment.
Long-range BLE: LE Coded PHY receiver sensitivity reaches -104 dBm at 125 Kbps, with more than 100 m open-space range using a 2 dBi dipole antenna.
Flexible Power: Operates from 5 V USB-C input or 44–57 V PoE through Ethernet.
Cloud-ready Protocols: Supports TCP, HTTP/HTTPS and MQTT/MQTTS connections for IoT platforms and private servers.
High BLE Throughput: Designed to receive up to 200 BLE packets per second from multiple devices.
Remote Management: Supports software upgrades and configuration through web UI or Telnet command console.

Package Includes

1 x Ingics iGS03E Industrial BLE-to-Ethernet Gateway

Other Information

Applications & Use Cases

BLE beacon and tag collection for location tracking
BLE sensor data aggregation for industrial and building automation
Security, smart-building and environmental monitoring systems

Deployment Note

Actual BLE range and packet reception depend on antenna placement, environmental obstructions, interference and BLE device transmit power.
