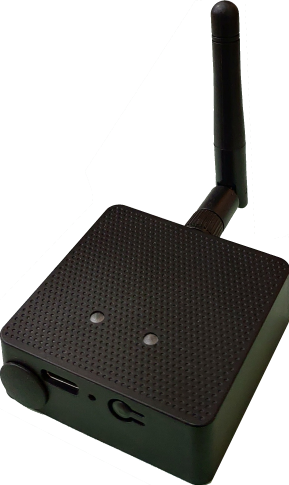

Ingics iGS03M Cellular LTE-M BLE Gateway
Lead Time
Product Description
Ingics iGS03M Cellular LTE-M BLE Gateway is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. Protocols support is listed as TCP, HTTP/HTTPS, MQTT/MQTTS. The LTE Transmit Power specification is Max. 23 dBm. The BLE Transmit Power specification is Max. +4 dBm. When choosing this industrial networking device, start with the documented configuration. Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. It accepts USB Type-C, 5 V ±5%, 2 A at the specified input. The Average Power specification is 1.2 W. The BLE Range specification is >100 m open space. The dimensions figure is 54 × 54 × 19 mm, excluding antenna and connector. The Gateway Type specification is BLE-to-LTE-M Cellular Gateway.
Applications
Product Specifications
| Manufacturer | Ingics |
| Model | iGS03M |
| Gateway Type | BLE-to-LTE-M Cellular Gateway |
| Cellular | LTE-M / Cat-M1 |
| LTE Data Rate | Max. 375 Kbps DL / 375 Kbps UL |
| SIM | Micro SIM |
| LTE Transmit Power | Max. 23 dBm |
| LTE Bands | B1/B2/B3/B4/B5/B8/B12/B13/B19/B20/B28 |
| GNSS | GPS, GLONASS, Galileo; optional external active antenna |
| Bluetooth | Bluetooth 5 / BLE, LE Coded PHY |
| BLE Transmit Power | Max. +4 dBm |
| BLE Receiver Sensitivity | -97 dBm @ 1 Mbps; -104 dBm @ 125 Kbps |
| BLE Range | >100 m open space |
| BLE Antenna | 2 dBi dipole antenna |
| Protocols | TCP, HTTP/HTTPS, MQTT/MQTTS |
| BLE Receive Rate | Up to 200 packets/second |
| Power Input | USB Type-C, 5 V ±5%, 2 A |
| Average Power | 1.2 W |
| Operating Temperature | -20°C to +50°C |
| Humidity | Max. 95% RH, non-condensing |
| Dimensions | 54 × 54 × 19 mm, excluding antenna and connector |
| Unit Weight | 52 g, excluding BLE antenna |
| Certifications | Bluetooth, TELEC, CE/FCC |
Product Features
- LTE-M Connectivity:Supported by Cat-M1 cellular interface: up to 375 Kbps download and upload with Micro SIM and an internal chip antenna.
- BLE Range:Provided by Bluetooth 5 LE Coded PHY: receiver sensitivity down to -104 dBm at 125 Kbps and more than 100 m open-space range with the 2 dBi BLE antenna.
- Cloud Data Protocols:Available functions include TCP, HTTP/HTTPS, MQTT/MQTTS, JSON upload and common IoT cloud platforms.
- Optional Positioning:Supported by GNSS: GPS, GLONASS and Galileo with an optional external active antenna.
- Configuration and Updates:Configuration is available through web UI or Telnet command console with remote software upgrade support.
Package Includes
- 1 x Ingics iGS03M LTE-M BLE Gateway
- 1 x BLE antenna
- 1 x Holder
- 1 x 1 m USB Type-C cable
Optional GNSS antenna is available separately for iGS03M ordering.
Frequently Asked Questions
What is the Ingics iGS03M Cellular LTE-M BLE Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
