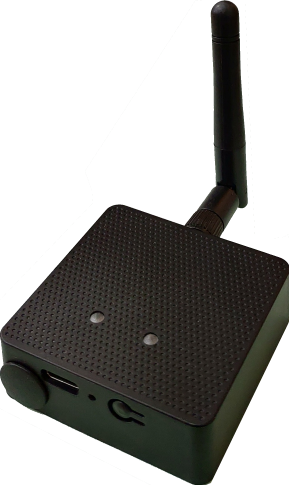

Ingics iGS03MP LTE Cat 1bis BLE-to-LTE Gateway
Lead Time
Product Description
Ingics iGS03MP LTE Cat 1bis BLE-to-LTE Gateway is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. Protocols support is listed as TCP/TLS, HTTP/HTTPS, MQTT/MQTTS. The LTE Transmit Power specification is Max. 23 dBm. It accepts USB Type-C, 5 V, 2 A at the specified input. When choosing this industrial networking device, start with the documented configuration. Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. The BLE Range specification is >100 m open space. The dimensions figure is 54 × 54 × 19 mm, excluding antenna. The Cloud Support specification is Amazon AWS IoT, Microsoft Azure IoT. The Gateway Type specification is BLE-to-LTE Cat 1bis Gateway. The Cellular specification is LTE Cat 1bis.
Applications
Product Specifications
| Manufacturer | Ingics |
| Model | iGS03MP |
| Gateway Type | BLE-to-LTE Cat 1bis Gateway |
| Cellular | LTE Cat 1bis |
| LTE-FDD Data Rate | Max. 10 Mbps DL / 5 Mbps UL |
| LTE-TDD Data Rate | Max. 8.96 Mbps DL / 3.1 Mbps UL |
| SIM | Micro SIM |
| LTE Transmit Power | Max. 23 dBm |
| GNSS | iGS03MP-G only; optional external active antenna |
| Bluetooth | Bluetooth 5 / BLE, LE Coded PHY |
| BLE Range | >100 m open space |
| BLE Antenna | 2 dBi dipole antenna |
| Protocols | TCP/TLS, HTTP/HTTPS, MQTT/MQTTS |
| Cloud Support | Amazon AWS IoT, Microsoft Azure IoT |
| BLE Receive Rate | Up to 200 packets/second |
| Power Input | USB Type-C, 5 V, 2 A |
| Average Current | 240 mA |
| Peak Current | 0.9 A standard / 1.2 A with GNSS active |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 54 × 54 × 19 mm, excluding antenna |
| Certifications | Bluetooth, TELEC, CE/FCC |
Product Features
- LTE Cat 1bis:Supported by Cellular uplink: LTE-FDD up to 10 Mbps down / 5 Mbps up and LTE-TDD up to 8.96 Mbps down / 3.1 Mbps up using a Micro SIM.
- BLE Range:Supported by Bluetooth 5 LE Coded PHY: more than 100 m open-space range with a 2 dBi BLE antenna.
- BLE Packet Handling:Processes up to 200 BLE advertising packets per second for dense sensor and beacon deployments.
- Secure Cloud Integration:Available functions include TCP/TLS, HTTP(S), MQTT(S), AWS IoT, Azure IoT, Root CAs, client certificates and private keys.
- Local Data Filtering:Filtering by RSSI, payload patterns and message throttling can reduce unnecessary cellular traffic.
- Optional GNSS:The iGS03MP-G variant adds GNSS positioning; the standard iGS03MP does not include GNSS hardware.
Package Includes
- 1 x Ingics iGS03MP LTE Cat 1bis BLE Gateway
- 1 x BLE antenna
- 1 x Holder
- 1 x 1 m USB Type-C cable
GNSS is available on the separate iGS03MP-G model.
Frequently Asked Questions
What is the Ingics iGS03MP LTE Cat 1bis BLE-to-LTE Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
