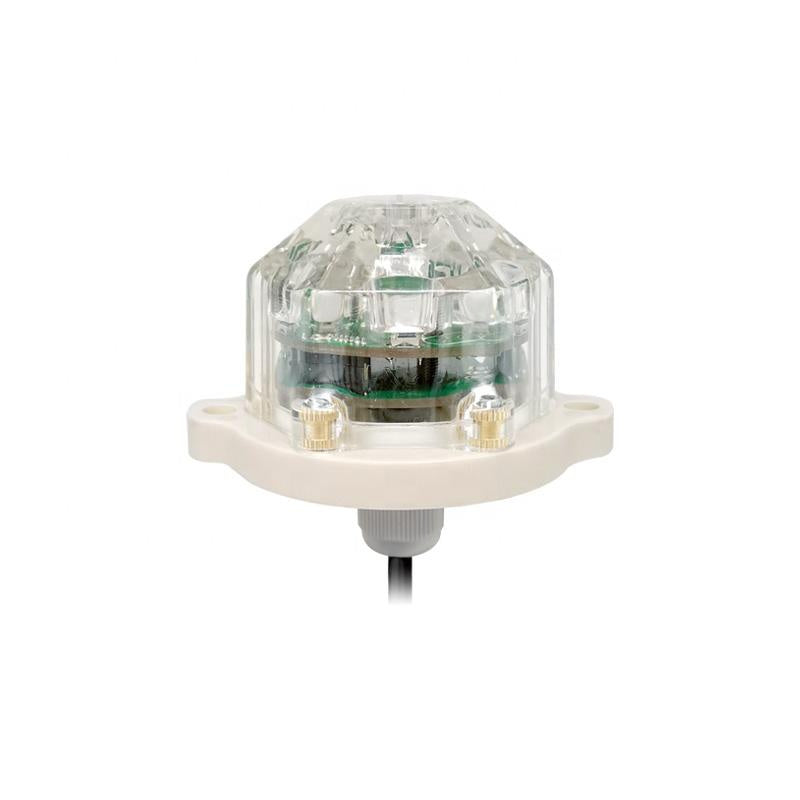

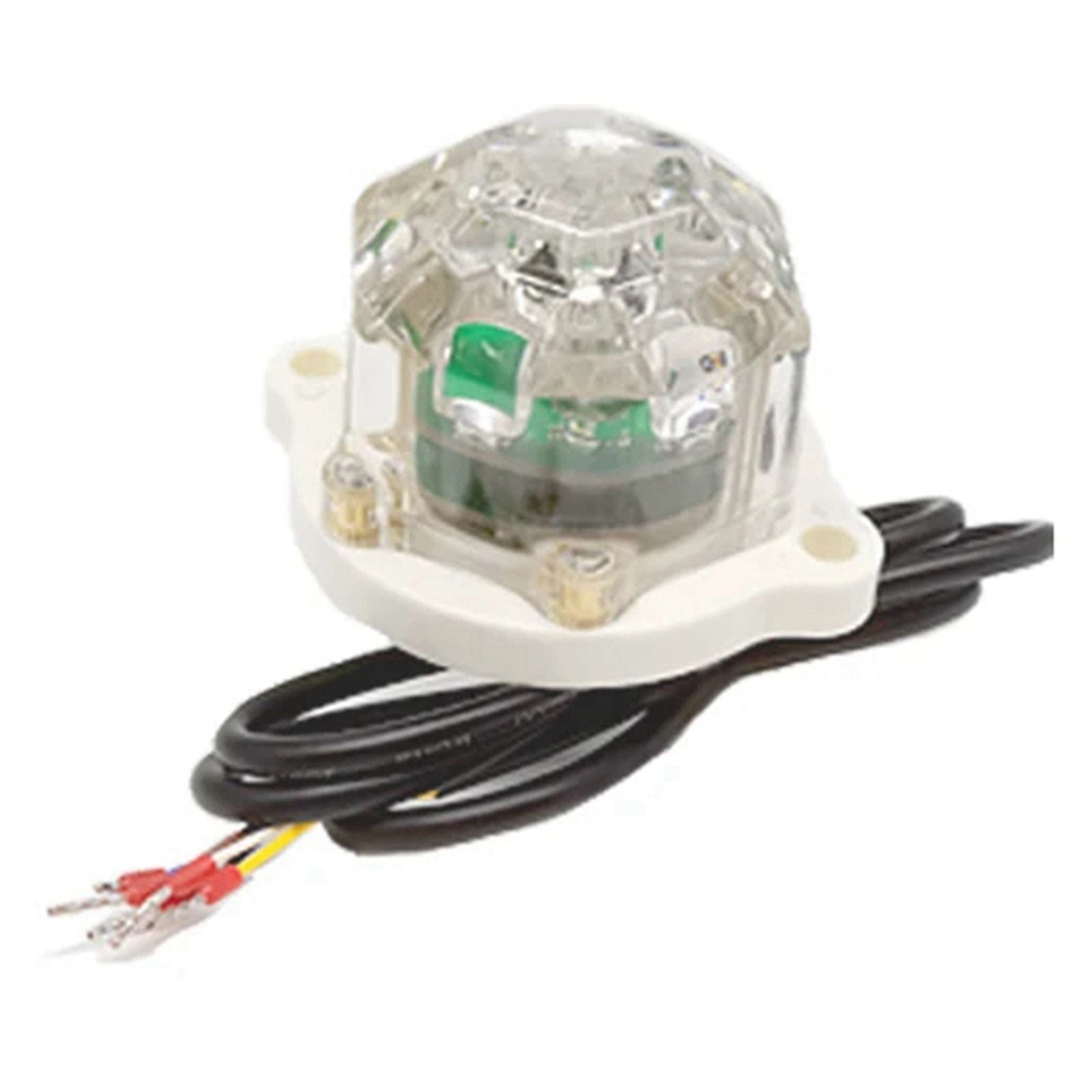

JXBS-3001-YL-RS-JC ABS Rain Sensor RS485
Lead Time
Product Description
JXBS-3001-YL-RS-JC ABS Rain Sensor RS485 is a compact optical rainfall sensor for automatic weather stations, agriculture and environmental monitoring. It uses infrared optical sensing to measure precipitation without a traditional mechanical tipping bucket, helping reduce maintenance and moving-part wear.
The sensor supports RS485 communication and 5V pulse output, provides 0.1mm rainfall resolution, operates from 12–24V DC and is designed for remote digital rainfall monitoring.
Product Specifications
| Model | JXBS-3001-YL-RS-JC |
| Sensor Type | Infrared optical rainfall sensor |
| Housing | ABS / plastic |
| Power Supply | 12–24V DC |
| Power Consumption | ≤0.2W @ 12V DC, 25°C |
| Output | RS485 / 5V pulse |
| Resolution | 0.1mm |
| Accuracy | ≤5% |
| Maximum Instantaneous Rainfall | 0.4mm/s |
| Rain Sensing Diameter | 4.7cm |
| Supported Baud Rates | 2400 / 4800 / 9600 |
Product Features
- Optical Measurement: Uses infrared light as the measurement medium and multiple optical probes to reduce interference from external light and fog water.
- Digital Integration: RS485 output allows connection to PLCs, data loggers, environmental controllers and automatic weather stations.
- Pulse Output: A 5V pulse output is also supported for compatible counters or controllers.
- Fine Resolution: Provides 0.1mm rainfall resolution with up to 0.4mm/s instantaneous rainfall capability.
- Low-Power Operation: Consumes ≤0.2W at 12V DC and 25°C according to manufacturer data.
- Compact Sensor Head: 4.7cm rain-sensing diameter supports flexible outdoor mounting.
Package Includes
- 1 × JXBS-3001-YL-RS-JC ABS Rain Sensor RS485
Frequently Asked Questions
What is the JXBS-3001-YL-RS-JC ABS Rain Sensor RS485 used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Infrared optical rainfall measurement with no mechanical tipping bucket
- RS485 digital communication for remote weather monitoring
- Also supports 5V pulse output
- 0.1mm rainfall resolution with specified accuracy of ≤5%
- Maximum instantaneous rainfall measurement up to 0.4mm/s
- 12–24V DC supply with low power consumption
- Compact plastic/ABS construction for weather-station integration
