LWC-GSM-SCREW-06 Screw Base Dual-Band Antenna

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time

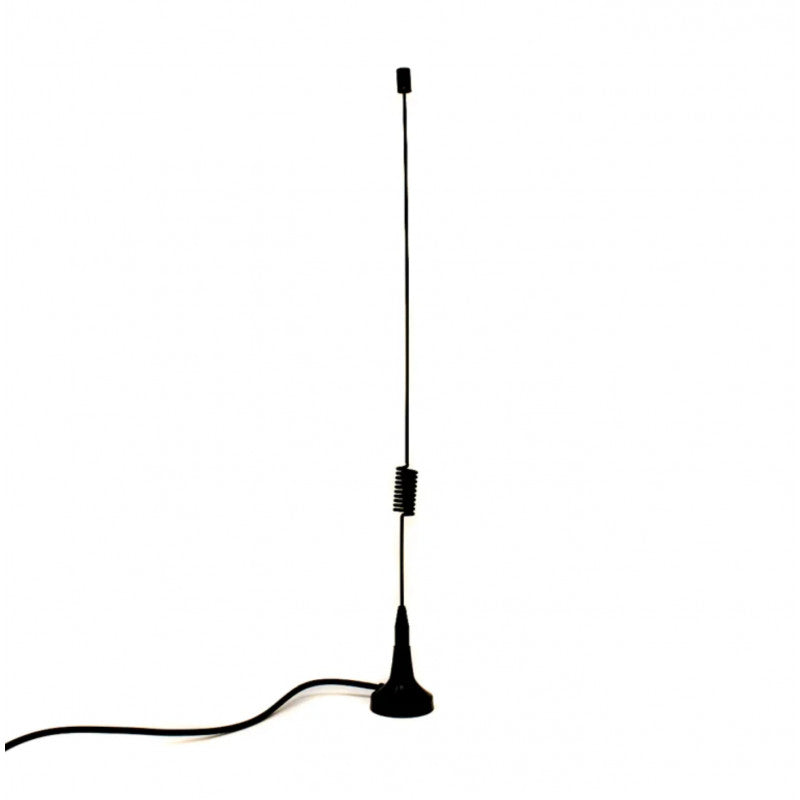

Screw base mount cellular antenna
  • Screw base mount cellular antenna

Product Description

LWC-GSM-SCREW-06 Screw Base Dual-Band Antenna is designed for the radio or positioning applications supported by its frequency coverage. It gives users a defined antenna option to match with a compatible receiver or radio device. The Frequency Range specification is 824–960 MHz and 1710–2170 MHz. The Mounting specification is Screw base. The Gain specification is Approx. 4 / 6 dBi. When choosing this antenna, start with the documented configuration. Match the band and connection to your equipment before choosing this version. Its physical format and any supplied cable details also matter when planning where the antenna will be installed. The Impedance specification is 50 Ω. The Connector specification is SMA Plug. The VSWR specification is < 2.5. The Antenna Type specification is Dual-band cellular antenna.

Applications

IoT Gateway Connectivity Wireless Sensor Networking

Product Specifications

Frequency Range824–960 MHz and 1710–2170 MHz
GainApprox. 4 / 6 dBi
Impedance50 Ω
ConnectorSMA Plug
VSWR< 2.5
MountingScrew base
Antenna TypeDual-band cellular antenna

Product Features

  1. Use this version for fixed-mount GSM and 3G communication equipment.
  2. Supported by Screw-base construction: secure panel or enclosure installation.
  3. Dual-band coverage suits supported cellular gateways and terminals.
  4. Integrated into SMA plug connection: with common cellular hardware.

Package Includes

  • 1 × LWC-GSM-SCREW-06 Screw Base Dual-Band Antenna

Frequently Asked Questions

What is the LWC-GSM-SCREW-06 Screw Base Dual-Band Antenna used for?
Screw-base dual-band cellular antenna covering 824–960 MHz and 1710–2170 MHz. Suitable for fixed-mount GSM/3G gateways, telemetry terminals and industrial wireless equipment.
What are its main features?
824–960 MHz and 1710–2170 MHz dual-band coverage; Approx. 4 / 6 dBi gain; Screw-base mounting; SMA plug connector.
What specifications should I check before choosing this product?
Frequency Range: 824–960 MHz and 1710–2170 MHz; Gain: Approx. 4 / 6 dBi; Impedance: 50 Ω; Connector: SMA Plug.
What operating or installation limits should I consider?
Frequency Range: 824–960 MHz and 1710–2170 MHz; Mounting: Screw base. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × LWC-GSM-SCREW-06 Screw Base Dual-Band Antenna.

Other Information

Uses and Setup Notes
  • GSM/3G cellular terminals and gateways
  • Fixed-mount industrial wireless installations
