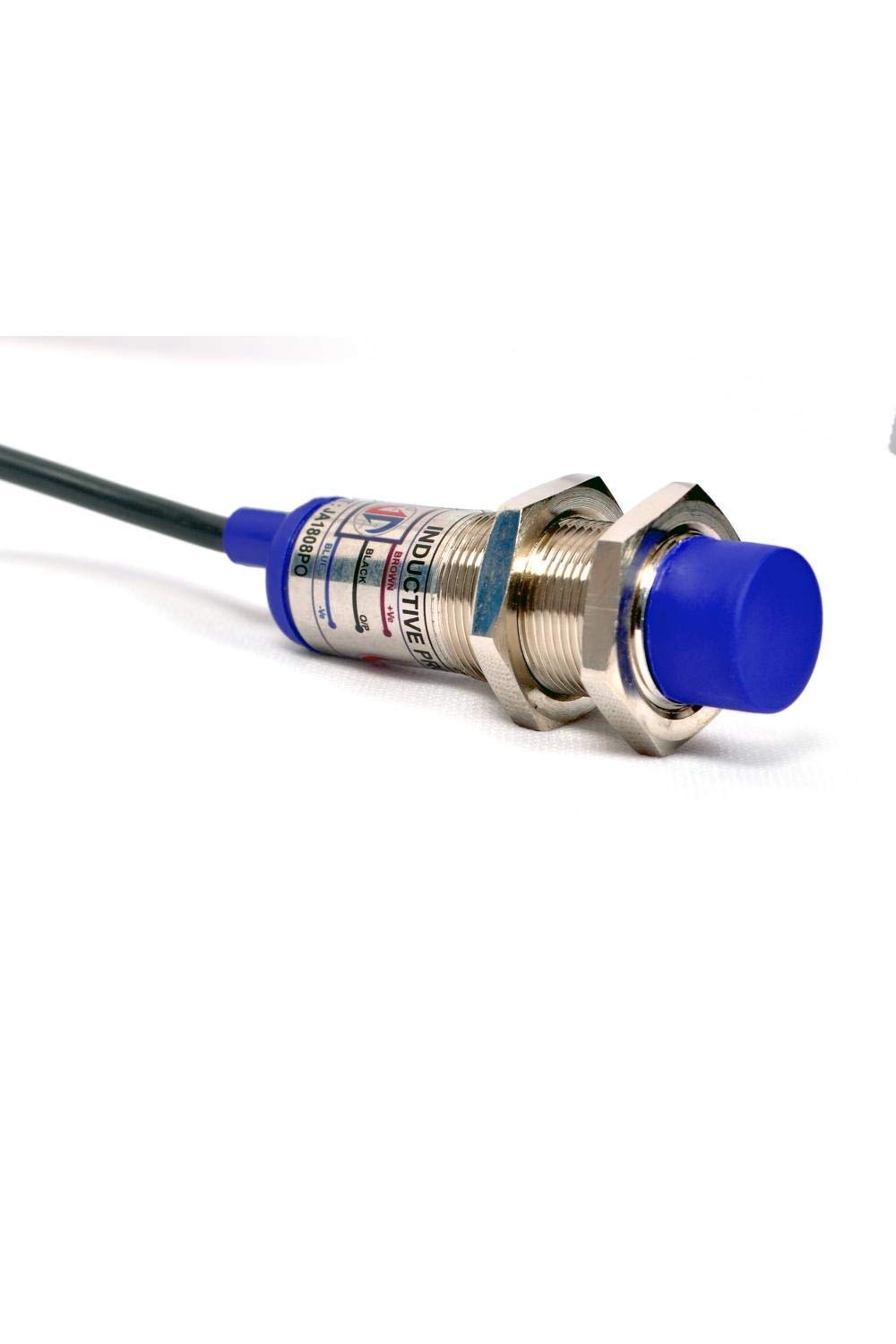

M18 7mm NPN Inductive Proximity Sensor 12–24V DC
Low Stock, 1 left
Product Description
Industrial M18 inductive proximity sensor for non-contact metal detection in automation, conveyors, machine positioning and presence sensing. It provides a 7mm nominal detection distance, NPN output, 12–24V DC operation and a durable nickel-plated brass housing.
Product Specifications
| Sensor Type | Inductive proximity sensor |
|---|---|
| Housing | M18 nickel-plated brass |
| Output | NPN |
| Detection Distance | 7 mm ±10% |
| Stable Setting Distance | 0–4 mm |
| Supply Voltage | 12–24V DC |
| Current Consumption | <13mA |
| Control Output | <300mA |
| Standard Sensing Target | Iron, 20 × 20 × 1 mm |
| Sensor Diameter | 18 mm |
| Housing Material | Nickel-plated brass |
| Approx. Dimensions | 18 × 12.5 × 0.868 cm |
| Approx. Weight | 0.110 kg |
Product Features
- Inductive sensing detects metallic targets without physical contact.
- Nominal 7 mm detection distance supports machine position and presence sensing.
- NPN switching output integrates with common PLC and automation inputs.
- Wide 12–24V DC supply range suits industrial control systems.
- M18 threaded metal housing enables secure panel or machine mounting.
Package Includes
- 1 × M18 7mm NPN Inductive Proximity Sensor
