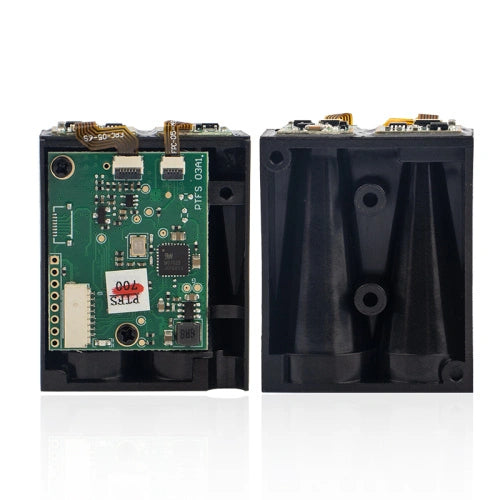

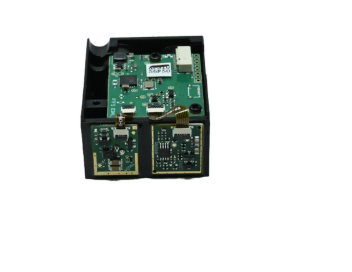

Meskernel PTFS-H Pulsed Laser Distance Sensor, Range: 3m~100m, 500Hz, 905nm (TTL To USB)
Meskernel PTFS-H Pulsed Laser Distance Sensor, Range: 3m~100m, 500Hz, 905nm (TTL To USB)
Low Stock, 1 left
Product Description
The Meskernel PTFS-H Pulsed Laser Distance Sensor is a compact long-range distance measurement module designed for outdoor and industrial applications. Using pulse laser technology, it measures distances from 3 m to 100 m, with optional variants offering ranges up to 400 m. Its 905 nm Class I invisible laser and measurement frequency up to 500 Hz support fast, real-time data acquisition.
Key characteristics include Model: PTFS-H; Input voltage: DC 2.5–3.5 V; typical 3.3 V; Measurement frequency: 500 Hz; Measurement range: 3 m–100 m. Check the supply, data interface, laser classification, installation geometry and manufacturer safety directions.
Product Specifications
| General | |
|---|---|
| Item type | Laser Distance Sensor |
| Model | PTFS-H |
| Display & Computing | |
| Input voltage | DC 2.5–3.5 V; typical 3.3 V |
| Wireless & RF | |
| Measurement frequency | 500 Hz |
| Measurement & Sensor | |
| Measurement range | 3 m–100 m |
| Accuracy | ±1 m |
| Connections & Interfaces | |
| Communication | TTL to USB |
| Power & Electrical | |
| Laser power | <1 mW |
| Working current | 100 mA |
| Power consumption | 330 mW at 3.3 V |
| Physical & Environmental | |
| Laser wavelength | 905 nm |
| Operating temperature | 0°C to 50°C |
| Storage temperature | −30°C to 60°C |
| Dimensions | 43 × 35 × 21 mm |
| Weight | 18 g |
| Packaging & Shipping | |
| Shipping weight | 0.028 kg |
| Shipping dimensions | 6 × 6 × 2 cm |
| Other Specifications | |
| Laser class | Class I |
Product Features
- Pulsed laser distance measurement
- Long measuring range up to 100 m; optional variants up to 400 m
- High-speed output up to 500 Hz
- Class I 905 nm invisible laser
- Low power consumption with 3.3 V operation
- Multiple communication interfaces supported
- Compact, lightweight and easy to integrate
- Model: PTFS-H.
- Measurement range: 3 m–100 m.
Package Includes
- 1 × Meskernel PTFS-H pulsed laser distance sensor, 3 m–100 m, 500 Hz, 905 nm (TTL to USB)
- 1 × USB-to-TTL adapter
- 1 × connecting pin
- 4 × screws
Frequently Asked Questions
What is the Meskernel PTFS-H Pulsed Laser Distance Sensor, Range: 3m~100m, 500Hz, 905nm (TTL To USB) used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
