Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway – IP67 Off-Grid Gateway
Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway – IP67 Off-Grid Gateway
Low Stock, 1 left
Product Description
The Milesight SG50 Ultra Low Power Solar LoRaWAN® Gateway enables remote off-grid IoT networks by combining low-power LoRaWAN® connectivity with solar energy, rechargeable battery backup and cellular backhaul. It is suited to agricultural fields, renewable-energy sites, utility assets, remote environmental monitoring and sites without wired power.
The IP67-rated outdoor industrial enclosure supports 8 half-duplex LoRaWAN channels and regional frequencies including IN865, subject to ordering the correct RF model. Its efficient power architecture supports continuous remote connectivity from solar and battery sources and up to approximately four days' typical operation without sunlight, depending on traffic, battery state and test conditions. Wireless backhaul uses supported 4G LTE variants for remote deployments.

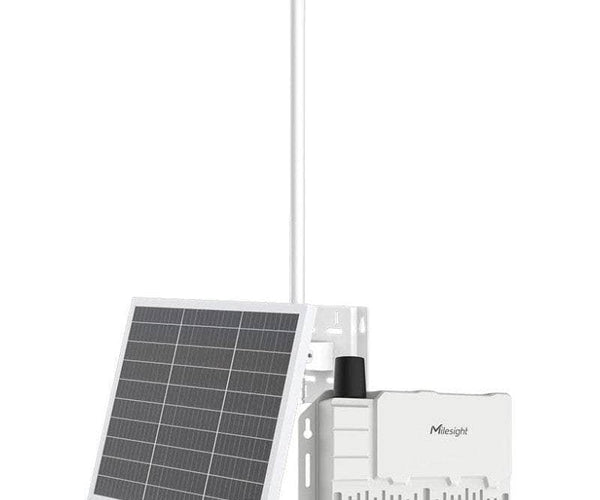

Field installation can use pole or wall mounting, optional solar panel/mounting accessories, and Milesight remote management. Note: product image shows a solar installation with accessories for illustration; confirm whether solar panel, mounting hardware, antenna and battery package are included in the quoted kit. Price and exact frequency/cellular SKU are pending. ₹0 is a non-public draft placeholder.
Product Specifications
| Model | SG50 Ultra Low Power Solar LoRaWAN® Gateway |
|---|---|
| LoRaWAN Channels | 8 half-duplex |
| CPU | Dual-core 240MHz Xtensa LX7 |
| PSRAM | 8MB |
| Flash | 16MB |
| Frequency Plans | CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923 |
| LoRaWAN Antenna | 1 × 50Ω N-Female external connector |
| Device Compatibility | ~2,000 end nodes via packet-forwarder; built-in NS up to 100 devices |
| Backhaul | 4G LTE Cat 1 / GSM |
| SIM | Nano SIM (4FF) |
| Wi-Fi | 2.4GHz Wi-Fi AP for local configuration only |
| GNSS | GPS support |
| Backup Power | Rechargeable battery with compatible solar-power system |
| Solar Panel | Configuration/kit dependent; supplier confirmation required |
| Solar-Free Operation | Up to ~4 days in typical manufacturer conditions |
| Ingress Protection | IP67 |
| Operating Temperature | −30°C to +70°C |
| Dimensions | 250 × 157.5 × 46mm |
| Mounting | Wall or pole |
Product Features
- Ultra-low-power, solar-ready outdoor LoRaWAN® gateway
- 8-channel half-duplex LoRaWAN with SX1302-class platform
- Rechargeable battery-backed remote deployment
- 4G LTE Cat 1 cellular network backhaul
- Up to four days' typical operation without sunlight under test conditions
- IP67 enclosure for rural and remote off-grid IoT applications
- Official Milesight documentation: https://www.milesight.com/iot/product/lorawan-gateway/sg50
- Confirm regional hardware option before ordering.
Package Includes
- 1 × Milesight SG50 Solar LoRaWAN® Gateway
- Solar panel, battery, antennas, brackets and other accessories are configuration-dependent; supplier quotation governs exact contents
