VS341-915M Desk and Seat Occupancy Sensor
VS341-915M Desk and Seat Occupancy Sensor
Low Stock, 1 left
Product Description

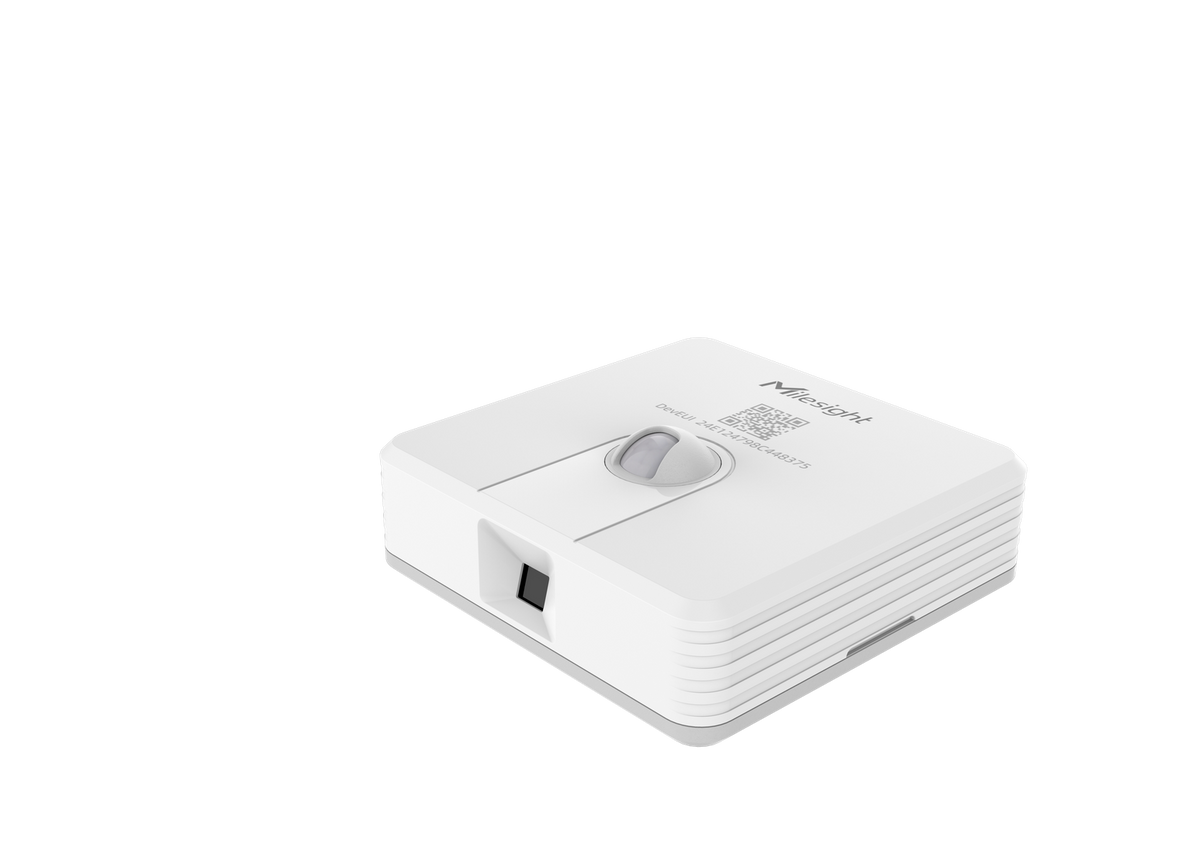

Milesight VS341-915M Desk and Seat Occupancy Sensor is the Pro dual-technology model of Milesight's LoRaWAN® desk and seat monitoring family. It combines passive infrared (PIR) and a thermopile infrared sensor to detect whether desks or seats are occupied while supporting anonymous workspace utilization analytics. The manufacturer specifies occupancy recognition up to 98% under suitable conditions; thermopile performance is affected by ambient temperature.
VS341 features a PIR sensing field of 107° horizontal × 107° vertical, PIR detection within 1 m, and a 50° thermopile field of view at the 50% sensitivity level. Interchangeable PIR covers enable sensing areas for individual desks, face-to-face desks, bar tables and round tables. Typical applications include hot-desking offices, libraries, flexible workplaces and smart-building seat availability systems.
The sensor supports LoRaWAN® OTAA/ABP Class A, Milesight D2D direct-control functionality, an internal antenna, NFC mobile-app configuration and remote configuration via LoRaWAN downlink. It is compatible with standard LoRaWAN gateways and network servers, Milesight IoT Cloud and the Milesight Development Platform. It operates from one 4000 mAh ER18505 Li-SOCl₂ battery, has an IP30 indoor enclosure, measures 73 × 73 × 26 mm without PIR cover and weighs approximately 90 g.
Regional variant: This TwoElectrons listing is VS341-915M, SKU 2ESE2191. The OEM lists regional variants including IN865 and US915, but the specific 915M hardware and its compatibility with India's IN865 frequency plan must be verified with the supplier before purchase. The specifications on this listing are exclusively for VS341, not the VS340 PIR-only model.
OEM: Milesight VS341 Desk & Seat Occupancy Sensor product page.
Product Specifications
| Manufacturer | Milesight |
| Model | VS341 (Pro version only) |
| TwoElectrons SKU / Model Suffix | 2ESE2191 / VS341-915M |
| Product Type | LoRaWAN Desk & Seat Occupancy Sensor |
| Occupancy Sensing Technology | PIR + Thermopile Infrared |
| Occupancy Recognition Rate | Up to 98% (conditions apply) |
| Recommended Thermopile Target Temperature for Best Recognition | +10°C to +30°C |
| PIR Detection Area | 107° horizontal × 107° vertical |
| PIR Detection Distance | Within 1 m |
| Thermopile Detection Area | 50° (at 50% sensitivity) |
| Wireless Protocols | LoRaWAN®, Milesight D2D |
| Antenna | Internal |
| Available Frequency Variants | CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923-1/-2/-3/-4 |
| Transmit Power | 16 dBm at 868 MHz / 20 dBm at 915 MHz / 19 dBm at 470 MHz |
| Receiver Sensitivity | −137 dBm |
| LoRaWAN Mode | OTAA/ABP Class A |
| Button | 1 × internal power/reset button |
| Indicator | 1 × status indicator |
| Power On/Off | NFC mobile app or internal power button |
| Configuration | NFC mobile app or LoRaWAN downlink |
| Advanced Feature | Milesight D2D Controller |
| Platforms | Standard LoRaWAN gateways and network servers, Milesight IoT Cloud and Milesight Development Platform |
| Battery / Power Supply | 1 × ER18505 Li-SOCl₂ 4000 mAh battery |
| Battery Life at SF7, EU868 and US915 | Over 10 years under OEM laboratory conditions |
| Battery Life at SF10, EU868 | About 5.2 years under OEM laboratory conditions |
| Battery Life at SF10, US915 | About 5.1 years under OEM laboratory conditions |
| Laboratory Battery-Life Test Assumptions | 1440-minute interval + 100 triggers/day, LED disabled, 25°C; for guidance only |
| Operating Temperature | −20°C to +60°C |
| Relative Humidity | 0–95% RH, non-condensing |
| Dimensions | 73 × 73 × 26 mm, without PIR cover |
| Weight | 90 g |
| Ingress Protection | IP30 |
| Housing | White + Grey; flame-retardant PC + ABS |
| Installation | 3M tape mounting or wall screw mounting |
| Optional Single-Desk PIR Cover | 70° H × 60° V, 1 × 0.9 m at 70 cm installation height |
| Optional Face-to-Face Desk PIR Cover | 70° H × 107° V, 1 × 1.8 m at 70 cm installation height |
| Optional Bar-Table PIR Cover | 107° H × 53.5° V, 1.8 × 0.9 m at 70 cm installation height |
| Optional Round-Table PIR Cover | 107° H × 107° V, 1.8 × 1.8 m at 70 cm installation height |
| India Frequency Suitability | IN865 is an available OEM variant; confirm whether the listed VS341-915M hardware supports the intended Indian frequency plan |
Product Features
- Specifically designed for desk and seat occupancy rather than people counting or identity recognition.
- Dual PIR + thermopile IR detection combines motion and infrared temperature sensing.
- Manufacturer recognition rate up to 98%; the best thermopile recognition is specified for target temperature range +10°C to +30°C.
- PIR sensing area 107° horizontally and 107° vertically, with sensing distance within 1 m.
- Thermopile detection field 50° at the 50% sensitivity level.
- Interchangeable PIR cover designs allow different fields of view for individual desks, face-to-face desks, bar tables and round tables.
- LoRaWAN® network connection via OTAA or ABP, Class A, using an internal antenna.
- Manufacturer lists regional variants CN470, IN865, EU868, RU864, US915, AU915, KR920 and AS923; specific supplied hardware must be confirmed.
- Milesight D2D Controller support allows direct, low-latency control of compatible devices.
- One internal power/reset button and a status indicator.
- Supports one-touch NFC configuration, card emulation and configuration via LoRaWAN downlink.
- Compatible with standard LoRaWAN gateways/network servers, Milesight IoT Cloud and Milesight Development Platform.
- Power supplied by one ER18505 4000 mAh Li-SOCl₂ battery.
- At SF7 EU868/US915, manufacturer quotes over 10 years battery service under laboratory settings, not a guarantee.
- At SF10, lab battery-life figures for VS341 are about 5.2 years (EU868) and 5.1 years (US915).
- Indoor IP30 enclosure in flame-retardant white/grey PC + ABS; operational range -20°C to +60°C.
- Mounting supported by 3M tape or screws; confirm the packing accessories included in a commercial order.
- TwoElectrons SKU 2ESE2191 is labelled VS341-915M; Indian IN865 support must be validated for the actual frequency variant.
Package Includes
- 1 × Milesight VS341-915M Desk and Seat Occupancy Sensor
- ER18505 battery is the specified power source; confirm whether it is fitted/included in the shipped unit
- 3M tape, screws and optional alternate PIR covers: quantity and inclusion subject to the supplier quotation/packing list
Frequently Asked Questions
What is the VS341-915M Desk and Seat Occupancy Sensor used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- VS341 Pro dual-technology desk and seat occupancy detection combining PIR and thermopile IR
- Up to 98% manufacturer-rated occupancy recognition in suitable operating conditions
- 107° horizontal × 107° vertical PIR detection field within 1 m
- 50° thermopile infrared sensing field at 50% sensitivity
- Adjustable PIR cover choices for individual desks, face-to-face desks and shared tables
- LoRaWAN® wireless communication using OTAA/ABP Class A
- Milesight D2D protocol for low-latency local interaction with compatible devices
- NFC mobile-app configuration and remote configuration by LoRaWAN downlink
- Single 4000 mAh ER18505 Li-SOCl₂ battery power source
- IP30 indoor housing, 73 × 73 × 26 mm excluding PIR cover
